Aluminum Transformer Foil Winding Machine Cold Pressure Welding
Aluminum Transformer Foil Winding Machine Cold Pressure Welding
Specifications
Brand Name :
STT
Model Number :
BRJ300-2
Certification :
CE
Place of Origin :
China
MOQ :
1
Price :
USD40000 ~ 50000/ set
Payment Terms :
T/T, L/C
Supply Ability :
100 sets per year
Delivery Time :
45 days
Packaging Details :
seaworthy packing
Name :
foil winding machine
Max. foil width :
300mm
Welding mold :
cold press welding
Cu foil thickness :
0.2 ~ 2.0mm
Al foil thickness :
0.3 ~ 3.0mm
Rotating speed :
0 ~ 35 rpm
Winding power :
5.5kw
Color :
optional
Warranty :
12 months
Description

Cold Pressure Welding Máquina de bobinado de láminas de aluminio Transformer Foil Winding Machine

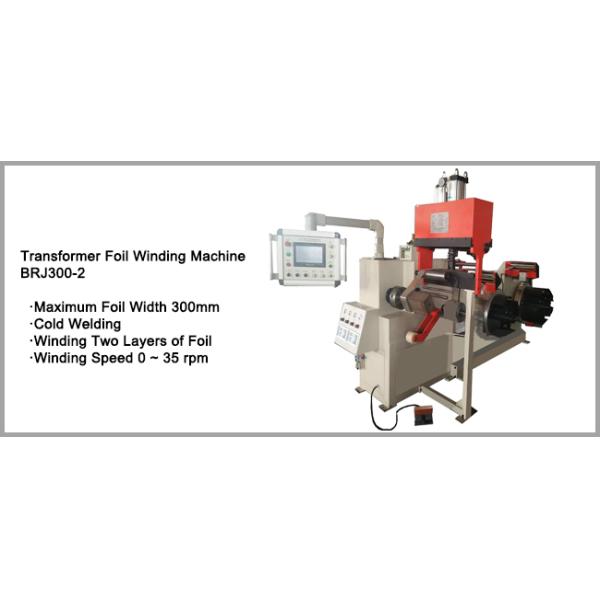

Description of transformer foil winding machine BRJ300-2

Transformer foil winding machine BRJ300-2 is a dedicated equipment for winding transformer foil coils and other similar products. The transformer foil winding machine is provided with PLC control system, which can make the machine run automatically as per the parameters input. With cold welding unit, the transformer foil winding machine can weld not only copper foil and copper bar, but also copper bar and aluminium foil together. The Máquina de bobinado de láminas de aluminio features slow staring, smooth running, high automation, full function, etc. It is very easy to operate the machine.

Main components of transformer foil winding machine BRJ300-2

1. Main frame

2. Foil decoiler

3. Pressing roller

4. Winding unit

5. Insulation decoiler

6. Edge alignment system

7. Automatic cold welding unit

8. Pneumatic unit

9. Electrical control system

Technical parameters of transformer foil winding machine BRJ300-2

Typical standard specifications of transformer foil winding machine BRJ300-2 are shown below, however these can be modified as requested.

Max. Foil Width: 300mm
Finished Coil OD.: 600mm
Coil Shape: Circle, Oval and Rectangle etc.
Supply coil Material: Copper or aluminum
Supply Coil Width: 300mm
Cu Foil Thickness: 0.2 ~ 2.0mm
Al Foil Thickness: 0.3 ~ 3.0mm
Supply Coil ID.: Φ500mm
Supply Coil OD.: Φ1000mm
Foil Dereeler Quantity: 2 pcs
Foil Dereeler Expanding Range: Φ420mm ~ Φ520mm
Max Coil Weight: 1000kg
Rectifying Mode: Photoelectric sensing
Insulation Paper Dereeler Quantity: 1set
Insulation Paper Supply Coil OD.: ≤ Φ400mm
Insulation Paper Supply Coil ID.: Φ76mm
Winding Speed: 0 ~ 35 RPM
Winding Power of Servo Motor: 5.5kw
Cold Welding Device: 1 set
Control System: PLC
Counting Turn Range: 0 - 9999.9

Aluminum Transformer Foil Winding Machine Cold Pressure Welding

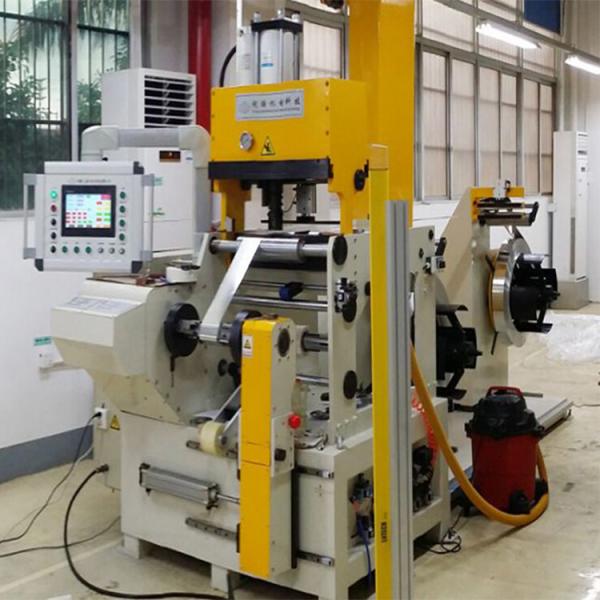

Fig 1: Transformer foil winding machine BRJ300-2's full view

Aluminum Transformer Foil Winding Machine Cold Pressure Welding

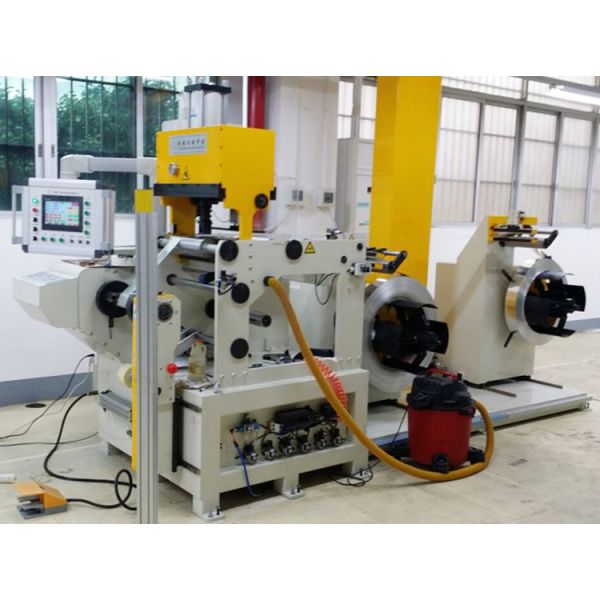

Fig 2: Transformer foil winding machine BRJ300-2's welding unit

Aluminum Transformer Foil Winding Machine Cold Pressure WeldingAluminum Transformer Foil Winding Machine Cold Pressure WeldingAluminum Transformer Foil Winding Machine Cold Pressure WeldingAluminum Transformer Foil Winding Machine Cold Pressure Welding

Aluminum Transformer Foil Winding Machine Cold Pressure WeldingAluminum Transformer Foil Winding Machine Cold Pressure WeldingAluminum Transformer Foil Winding Machine Cold Pressure Welding
