Semi Automatic Transformer Winding Machine Making Wire Coil
Semi Automatic Transformer Winding Machine Making Wire Coil
Specifications
Brand Name :
STT
Model Number :
GDY-2T
Place of Origin :
China
MOQ :
1
Price :
USD3000 ~ 4000
Payment Terms :
T/T, L/C
Supply Ability :
100 sets per year
Delivery Time :
20 days
Packaging Details :
seaworthy packing
Name :
transformer coil winding machine
Usage :
winding transformer coil
Center height :
1000mm
Shaft size :
40x40x1500mm
Tailstock :
split type
Color :
as requested
Counter :
digital
Rotating speed :
0 ~ 80rpm
Description

Cheap bobineuse Semi Automatic Transformer Coil Winding Machine Making Wire Coil

Description of transformer coil winding machine GDY-2T

Transformer coil winding machine GDY-2T is a semi automatic coil winding machine for winding different sizes of wire to make transformer coil. The transformer coil winding machine can bear the coil with maximum 2000kg. The transformer coil winding machine can be used to wind HV (high voltage) and LV (low voltage) coil. The winding direction can be switched with the foot pedal.

Main features of transformer coil winding machine GDY-2T

  • Slow starting
  • Smooth running
  • Easy operating
  • Simple and cheap

Main parameters of transformer coil winding machine

Typical standard specifications of transformer coil winding machine GDY-2T are shown below, however, these can be modified as requested.

  • Center height 1000mm
  • Square shaft size 40x40x1500mm
  • Rotating speed maximum 80rpm
  • Spear gear number 2pcs
  • Main motor power 3kw
  • Color customized
  • Machine weight 600kgs
  • Machine dimension 3100(L)x 700(W)x 1400(H)mm

Semi Automatic Transformer Winding Machine Making Wire Coil

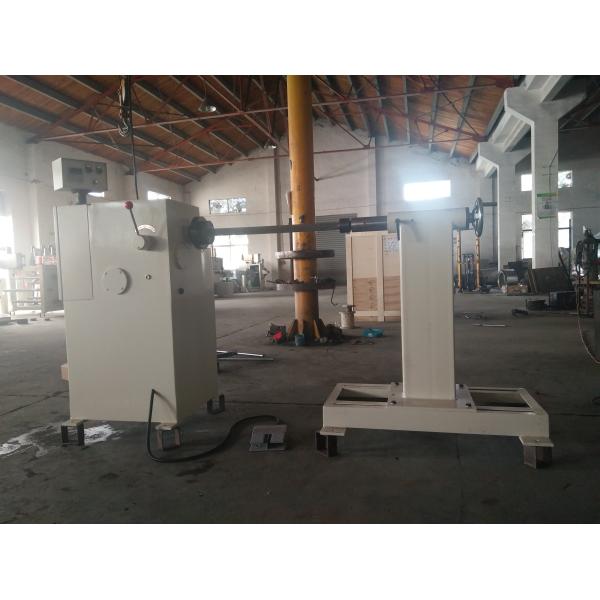

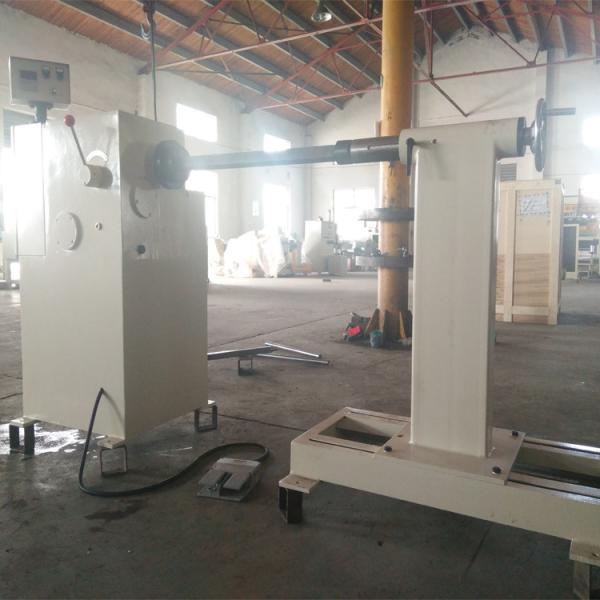

Fig 1: Transformer coil winding machine GDY-2T's front view

Semi Automatic Transformer Winding Machine Making Wire Coil

Fig 2: Transformer coil winding machine GDY-2T's counter

Semi Automatic Transformer Winding Machine Making Wire CoilSemi Automatic Transformer Winding Machine Making Wire CoilSemi Automatic Transformer Winding Machine Making Wire CoilSemi Automatic Transformer Winding Machine Making Wire Coil

Semi Automatic Transformer Winding Machine Making Wire CoilSemi Automatic Transformer Winding Machine Making Wire CoilSemi Automatic Transformer Winding Machine Making Wire CoilSemi Automatic Transformer Winding Machine Making Wire Coil
