Specifications
Model Number :
SXWA
Output Performance :
AC & DC High-Current Generation
MOQ :
1 Set
Waveform Performance :
THD ≤1%
Brand Name :
Sansion
System Architecture :

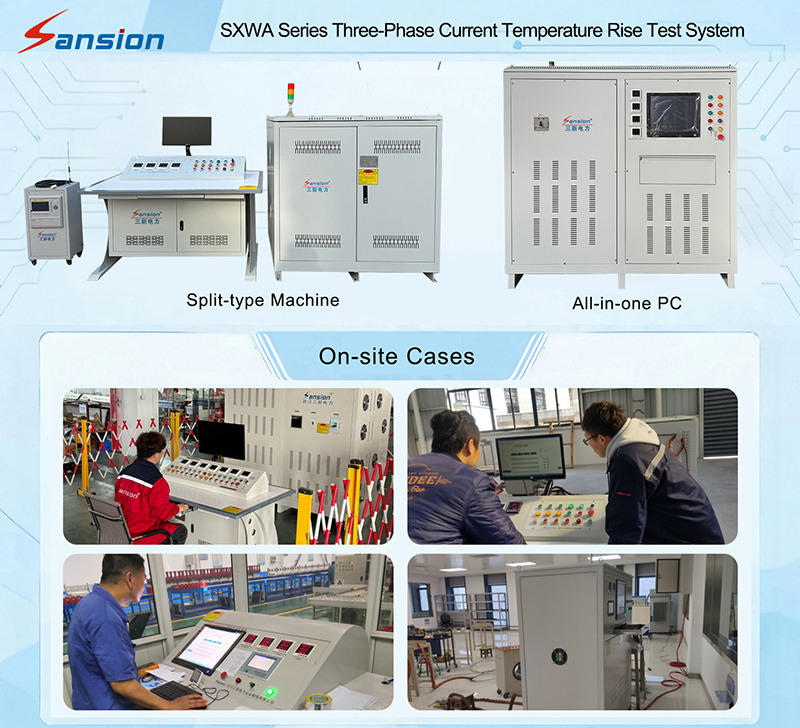

Integrated / Modular Split Design
Delivery Time :
30 Working Days
Payment Terms :
T/T,L/C
Power Requirement :
380V AC, 50Hz
Packaging Details :
Plywood Case
Certification :
CE/SGS/EMS/ISO 9001
Accuracy Class :
≤0.2%
Place of Origin :
China
Power Rating :
0–20 kVA
Description

General Information

The High-Current Temperature Rise Test System is engineered for evaluating the thermal behavior of electrical components and assemblies under controlled current loading. It combines a programmable high-current source with digital electrical measurement, multi-point temperature acquisition and automated test management. Instead of relying on separate instruments and manual records, engineers can perform current loading, temperature monitoring, timing and test data collection through one coordinated system.

Typical Test Objects

  • Circuit Breakers
  • Switchgear
  • Contactors
  • Thermal Relays
  • Motor Protection Devices
  • Busbars
  • Power Cables
  • Protection Panels

Technical Specifications

Parameter Specification
Input Supply 3-Phase 380 V AC, 50 Hz
Output Capacity 3–20 kVA
Output Type AC / DC
Current Regulation Continuous Adjustment
Current Measurement Accuracy Class 0.2
Output Waveform Standard Sine Wave
Waveform Distortion THD ≤0.3%
Output Measurement True RMS
Open-Circuit Voltage 10 / 15 / 20 V
Current Stability ≤0.2%
Temperature Channels 12 / 24 / 48 / 64
Temperature Range 10–800°C
Timer Range 0.01–99,999.9999 s
Timing Resolution 0.001 s
Operating Modes Manual / Automatic
Protection Overcurrent / Overvoltage / Overtemperature
Structure Integrated / Separate
Customization Available

FAQ

Q:What is a high-current temperature rise test system used for?

It is used to apply a controlled electrical current to a test specimen and measure the resulting temperature rise. The system is commonly used for electrical components and assemblies that carry significant current during operation.

Q:What is the output capacity of this system?

The standard specification covers 3–20 kVA, with the final output configuration depending on the customer's testing requirements.

Q:What types of current can be generated?

The system supports AC and DC high-current output.

Q:How many temperature points can be monitored?

The system can be configured with 12, 24, 48 or 64 temperature channels.

Q:What temperature range can be measured?

The specified measurement range is 10°C to 800°C.
