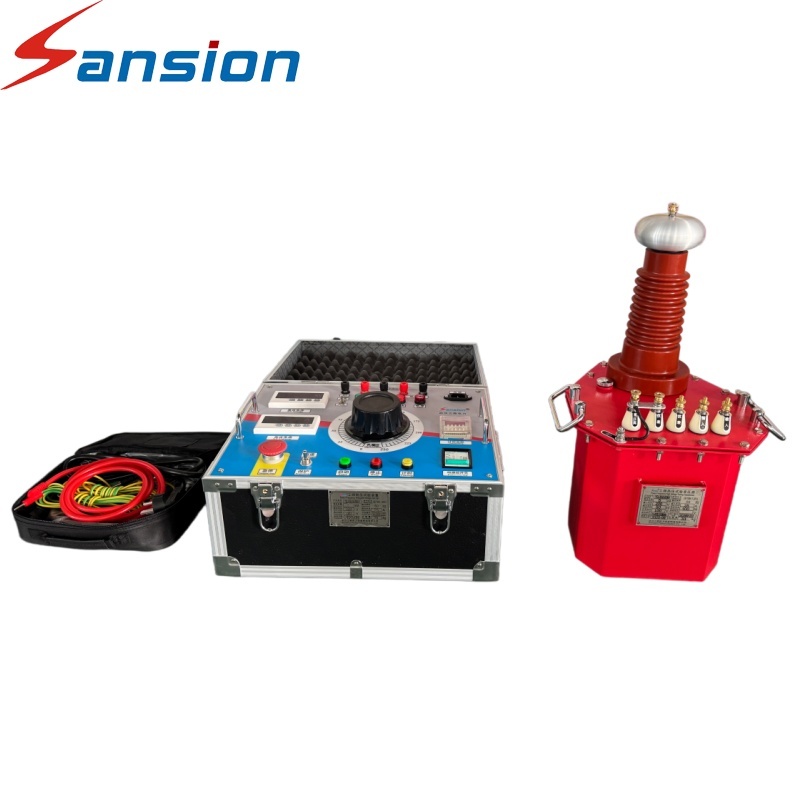

5KVA 50KV High Voltage Power Frequency Withstand Test System AC Dielectric Testing Machine for Switchgear Cable Motor and Electrical Apparatus Insulation
5KVA 50KV High Voltage Power Frequency Withstand Test System AC Dielectric Testing Machine for Switchgear Cable Motor and Electrical Apparatus Insulation
5KVA 50KV High Voltage Power Frequency Withstand Test System AC Dielectric Testing Machine for Switchgear Cable Motor and Electrical Apparatus Insulation
5KVA 50KV High Voltage Power Frequency Withstand Test System AC Dielectric Testing Machine for Switchgear Cable Motor and Electrical Apparatus Insulation
5KVA 50KV High Voltage Power Frequency Withstand Test System AC Dielectric Testing Machine for Switchgear Cable Motor and Electrical Apparatus Insulation
5KVA 50KV High Voltage Power Frequency Withstand Test System AC Dielectric Testing Machine for Switchgear Cable Motor and Electrical Apparatus Insulation
Specifications
Model Number :
YDJ
HV Voltage :
50kV
MOQ :
1
DC Voltage :
70kV
Brand Name :
Sansion Power
Capacity :
5kVA
Delivery Time :
30 Working Days
Test Type :
AC Dielectric
Payment Terms :
L/C,T/T
Model :
YDJ(Z) 5/50
Packaging Details :
Plywood Case
Output Capacity :
Variable
Certification :
CE/SGS/EMS/ISO 9001
HV Current AC :
100mA
Place of Origin :
China
HV Current DC :
15mA
Description
Power Frequency AC Withstand Test System

The Power Frequency AC Withstand Test System is suitable for insulation testing of cables, power accessories and electrical components during manufacturing and inspection processes. By applying rated AC voltage, the system helps users verify insulation reliability and identify potential defects before products are delivered.

Designed with compact structure and convenient operation, the system provides different output capacities to meet various testing needs. It is an essential testing solution for manufacturers requiring reliable insulation evaluation equipment.

Product Parameters
Model Capacity (kVA) HV Voltage (kV) HV Current (mA)
AC DC AC DC
YDJ(Z) 1.5/50 1.5 50 70 30 15
YDJ(Z) 3/50 3 50 70 60 15
YDJ(Z) 5/50 5 50 70 100 15
YDJ(Z) 10/50 10 50 70 200 50
YDJ(Z) 20/50 20 50 70 400 100
YDJ(Z) 30/50 30 50 70 600 100
YDJ(Z) 40/50 40 50 70 800 105
YDJ(Z) 50/50 50 50 70 1000 100
Product Advantages
  • Suitable for cable and electrical accessory insulation testing
  • Compact structure for convenient installation and operation
  • Supports different voltage levels for various test requirements
  • Helps improve product reliability through insulation verification
Application Scenarios
  • Cable manufacturing factories
  • Power accessory manufacturers
  • Electrical component production lines
  • Product inspection departments
FAQ

Q1: Can this system test power cables?

A: Yes, it can be used for insulation withstand testing of suitable cable products and accessories.

Q2: What makes this system suitable for production environments?

A: It provides stable output, easy operation and reliable protection for routine factory testing.

Q3: Can different capacities be selected?

A: Yes, models from 1.5kVA to 100kVA are available.

Q4: What protection functions are included?

A: The system includes measurement and safety protection functions for reliable operation.
