Specifications
HV Voltage :
20kV
Model Number :
YDJ
Capacity :
10kVA
Brand Name :
Sansion Power
HV Output Current :
500mA
MOQ :
1
Transformer Type :
Oil Immersed Type
Delivery Time :
30 Working Days
Input Voltage :
AC 220V / 380V
Certification :
CE/SGS/EMS/ISO 9001
Control Mode :
Electric Operation
Payment Terms :
L/C,T/T
Control Console :
Electric Control Console
Packaging Details :
Plywood Case
Frequency :
50Hz / 60Hz
Place of Origin :
China
Description
Product Description

The 10kVA 20kV Power Frequency AC Withstand Test System is designed for electrical manufacturers, laboratories and testing organizations requiring reliable insulation performance verification. It applies controlled AC high voltage to evaluate the dielectric strength of transformers, switchgear, cables, motors and other electrical components.

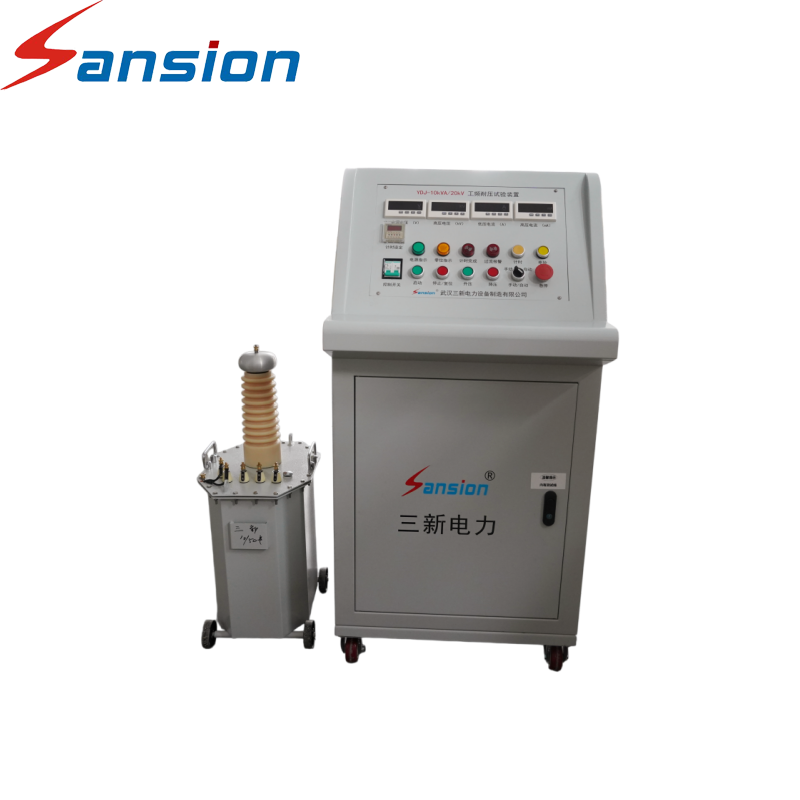

The system consists of an Electric Control Console and an Oil Immersed Test Transformer. The electric control console provides convenient voltage regulation, measurement and protection functions, while the oil immersed transformer ensures stable high voltage output with excellent heat dissipation and long service service life.

Product Parameters
Model Capacity (kVA) HV Voltage (kV) Control Console Test Transformer
YDJ(Z)-10/20 10 20 Electric Control Console Oil Immersed Test Transformer
Item Specification
Input Voltage AC 220V / 380V
Frequency 50Hz / 60Hz
HV Output Current 500mA
Control Mode Electric Operation
Transformer Type Oil Immersed Type
Product Advantages
  • Electric control operation improves testing efficiency and convenience
  • Oil immersed transformer provides stable output and excellent insulation performance
  • Suitable for routine AC withstand voltage testing
  • Integrated protection system ensures safe operation during testing
Application Scenarios
  • Electrical equipment manufacturing factories
  • High voltage testing laboratories
  • Transformer and switchgear inspection
  • Power equipment maintenance centers
FAQ
Q1: What components are included in this system?
A: The system includes an electric control console and an oil immersed high voltage test transformer.
Q2: Why choose an oil immersed test transformer?
A: The oil immersed structure provides good heat dissipation, stable performance and long-term operation capability.
Q3: Can the control mode be customized?
A: Yes, manual, electric and intelligent control solutions are available.
Q4: What equipment can be tested?
A: It can be used for transformers, cables, switchgear, motors and other insulation testing applications.
