108kVA 108kV AC Resonant Test System

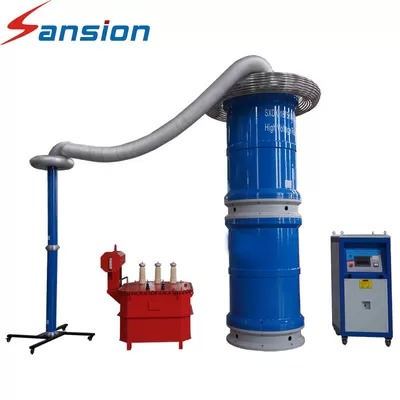

The 108kVA 108kV AC Resonant Test System is a compact high voltage testing solution designed for AC withstand tests of electrical equipment with capacitive characteristics. Using variable frequency resonant technology, the system produces stable AC high voltage output while reducing the requirements for power supply capacity, making it suitable for laboratory testing and field commissioning applications.

This AC Resonant Test System is developed to help users evaluate insulation strength, identify possible insulation defects, and improve the safety and reliability of power equipment operation. With flexible configuration and intelligent control functions, it can provide accurate and efficient testing performance for different voltage levels and application conditions.

The system is commonly used by power utilities, electrical equipment manufacturers, testing organizations, and engineering companies for preventive maintenance, equipment acceptance, and commissioning tests.

The 108kVA 108kV AC Resonant Test System is suitable for insulation testing of medium voltage and high voltage equipment, including power cables, transformers, GIS, switchgear, motors, and other electrical components.

In cable testing projects, the system provides a stable AC withstand test method to check cable insulation performance before operation. It is also widely applied in substations and power distribution systems for commissioning and maintenance inspections.

For equipment manufacturers and testing laboratories, this system offers a practical solution for routine quality inspection and electrical performance verification during production and acceptance processes.

1. Compact Testing Design The system adopts a modular structure with convenient installation and transportation, making it suitable for both laboratory environments and on-site testing applications.
2. Stable AC Voltage Output Advanced resonant technology helps generate high-quality sinusoidal voltage with low waveform distortion, improving test accuracy.
3. Energy-Efficient Operation Compared with traditional high voltage test equipment, the resonant method requires lower input power while maintaining reliable testing capability.
4. Comprehensive Protection System Built-in protection functions such as over-voltage, over-current, and flashover monitoring ensure safe operation throughout the testing process.
