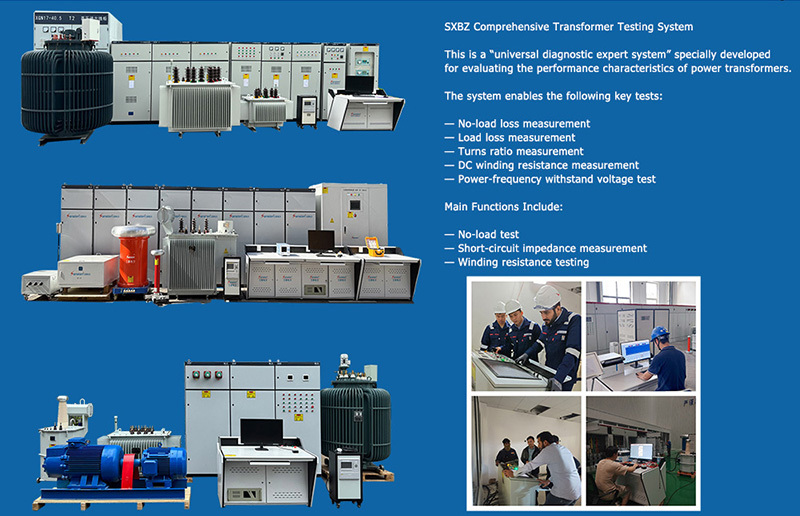

Transformer Testing Equipment is an advanced integrated solution developed for transformer production testing and quality inspection.

During transformer manufacturing, accurate testing of electrical characteristics and insulation performance is essential to ensure reliability and safety.

This transformer test system integrates measurement instruments, high voltage testing equipment and computer control technology to provide a complete testing platform for transformer factories.

The system eliminates the need for multiple separate testers and provides a more efficient and standardized testing process.

The automatic testing software enables engineers to perform tests, analyze results and generate professional reports quickly.

Instead of using multiple independent devices, this system integrates:

• Electrical parameter measurement
• High voltage testing
• Insulation diagnosis
• Data management

into one complete platform.

Equipped with precision measuring instruments:

• Power analyzer
• Digital measurement system
• Automatic calculation software

to ensure reliable testing results.

Features include:

• Computer control
• PLC automation
• Automatic protection
• Data storage
• Test report printing

• Transformer ratio test
• Winding resistance test
• No-load loss test
• Load loss test
• Short circuit impedance test
• Insulation resistance test
• AC withstand voltage test

• Temperature rise test

• Zero sequence impedance test
• Harmonic analysis test

Because transformers require multiple electrical and insulation tests before delivery. An integrated test system improves efficiency and ensures product quality.

Yes. It combines multiple testing functions into one automatic platform.

Yes. The system includes professional testing software for control, calculation and reporting.
