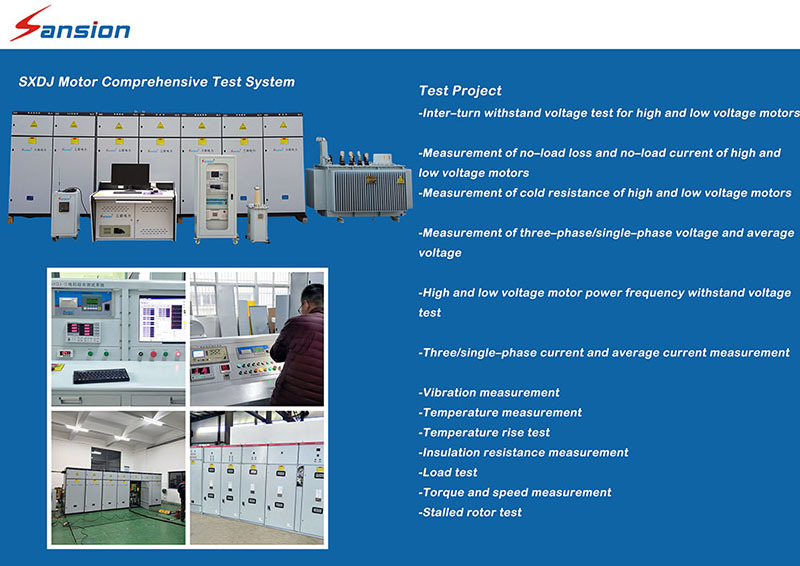

The Motor Comprehensive Test System is an advanced, industrial-grade testing solution designed for factory production inspection, quality assurance, and post-maintenance testing of various electric motors.

Engineered for extreme performance and precision, this test bench supports AC motors, DC motors, and variable frequency motors across a wide capacity range from 0 to 10,000 kW and voltage classes from 0 to 10 kV. Featuring multi-channel capabilities, automated data acquisition, and robust industrial control, the system streamlines your motor testing workflow while maintaining top-tier measurement accuracy.

• Precise Three-Phase Measurement

  Accurately monitors three-phase currents simultaneously in real time. The high-precision system captures dynamic current fluctuations and immediately evaluates their thermal and electrical impacts on the equipment under test.

• High Degree of Automation

  Fully automated test procedures minimize manual operation errors, reduce labor intensity, and dramatically increase throughput for high-volume manufacturing and overhaul workshops.

• Integrated Hardware & Software Ecosystem

  Built around an industrial PC, the system seamlessly integrates test power supply modules, control systems, high-accuracy sensors, signal conditioning, data acquisition hardware, and advanced numerical operation software.

• Automated Data Processing & Report Generation

  Generates comprehensive test reports automatically. Features real-time graphical displays, waveform analysis, measurement result storage, and instant report printing for full traceability.

• Wide Voltage & Capacity Coverage

  Versatile testing capacity from 0 to 10,000 kW and voltage classes up to 10 kV, making it suitable for low-voltage standard motors as well as high-voltage industrial drives.

• Motor Manufacturing & Production Lines: End-of-Line quality auditing and routine factory acceptance tests (FAT).

• Maintenance, Repair & Overhaul Workshops: Performance verification and fault diagnosis after motor rewinding or mechanical repair.

• Research & Quality Testing Centers: High-precision evaluation of dynamic response, torque, current stability, and operational efficiency under variable loads.

1. What is the main application of the Motor Comprehensive Test System?

A:The system is designed for various operational and diagnostic tests on motors following production or maintenance. It is suitable for testing AC motors, DC motors, and variable frequency motors.

2.What are the capacity and voltage range limits for tested motors?

A:Capacity range: 0 to 10000 kW； Voltage class:0 to 10Kv

3. How does the system ensure high-precision measurements?

A:The system features multi-channel, multi-function capabilities. Specifically, it can accurately monitor three-phase currents simultaneously and capture the impact of real-time current changes on the equipment.

4. What are the main benefits of the system's high automation level?

A:Automation significantly reduces manual operation errors and labor intensity, which dramatically improves overall testing efficiency and consistency.

5. Can the test results and waveforms be saved and printed?

A:Yes. Integrated software allows for automated test report generation, as well as waveform and measurement result storage and printing.
