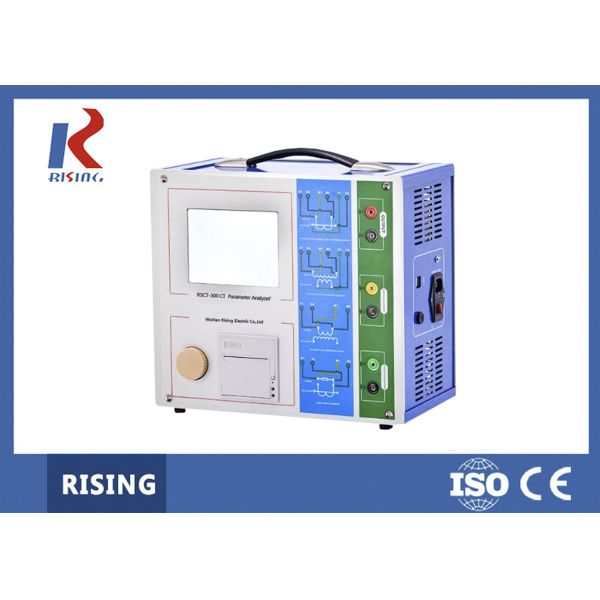

CT PT Testing Equipment Fully Functional 300VA CT PT Transformer Tester
CT PT Testing Equipment Fully Functional 300VA CT PT Transformer Tester
Specifications
Brand Name :
RISING
Model Number :
RSCT-300
Certification :
ISO CE
Place of Origin :
China
MOQ :
1
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
500 SET PER Month
Delivery Time :
5-8 days
Packaging Details :
Wooden package for export
Testing Purposes :
Protective CT
Output :
0~180Vrms, 12Arms,36A(peak value)
Voltage measurement accuracy :
±0.2%
CT ratio measurement :
Accuracy: ±0.2%
PT ratio measurement :
Range: 1~10000
Description

RSCT-300 Fully Functional CT PT Tester Transformer CT Parameter Tester

Product Introduction

This device uses high-performance DSP and ARM, advanced manufacturing process toensure that the product is stable and reliable, full-featured, high degree of automation, high test efficiency, is the professional testing equipment for the CT/PT industry

Products Features

1.Full-featured , meet all kinds of CT (e.g.: protection, measuring, TP) excitation characteristics ( i.e. voltage characteristics ), ratio, polarity ,

secondary winding resistance, secondary load, ratio error and phase angle error and other testing requirements , also for various types of PT

electromagnetic unit excitation characteristics, ratio, polarity , secondary winding resistance , ratio error and phase angle error and other testing

requirements.

2.Automatically gives the knee voltage / current, 10% ( 5% ) error curve , accuracy limit factor (ALF), instrument security factor (FS), secondary

time constant (Ts), remanence coefficient (Kr), saturated and unsaturatied inductors and others CT, PT parameters.

3.Meet IEC60044-1, IEC60044-6 CT/PT standard.

4.Based on an advanced low-frequency testing theory, able to test knee point of the CT test up to 30KV.

5.Device can store 2000 groups of test data, non-volatile. After the test is completed with U disk to the PC, data analysis software, and generate

reports in WORD file.

6.Testing is simple and convenient, one button complete CT resistance, excitation, ratio and polarity tests, except load test , CT various other

tests are using the same wiring.

7.Easy to carry, instrument weight<9KG.

Technical Parameters

Testing purposes Protective CT
Output 0~180Vrms, 12Arms,36A(peak value)
Voltage measurement accuracy ±0.2%
CT ratio measurement Range: 1~30000
Accuracy: ±0.2%
PT ratio measurement Range: 1~10000
Accuracy: ±0.2%
Phase measurement Resolution: 0.5min
Accuracy: ±5min
Secondary winding resistance measurement Range: 0~300Ω
Accuracy: 2%±2mΩ
AC load measurement Range: 0~300VA
Accuracy: 2%±0.2VA
Input supply voltage AC220V±10%, 50Hz
Work Environment Temperature:-10℃~ 50℃, humidity≤90%
Dimension & weight Dimension: 340×300×150mm3, weight≤9Kg
