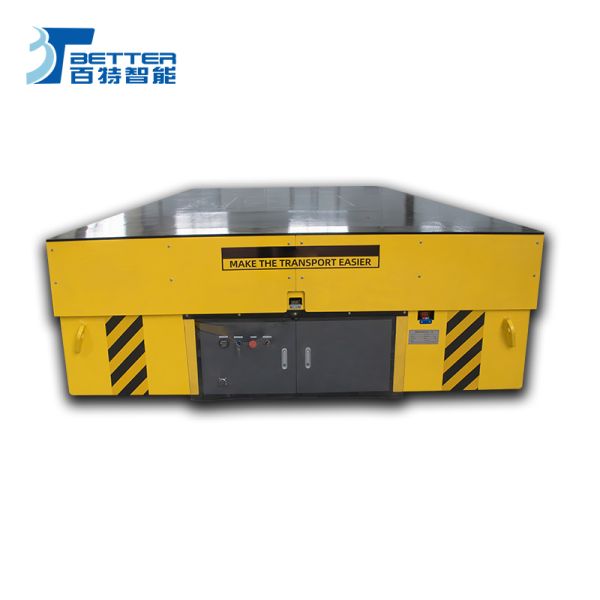

Industrial motorized trackless transfer cart featuring pu wheels for heavy material transport and flexible site navigation

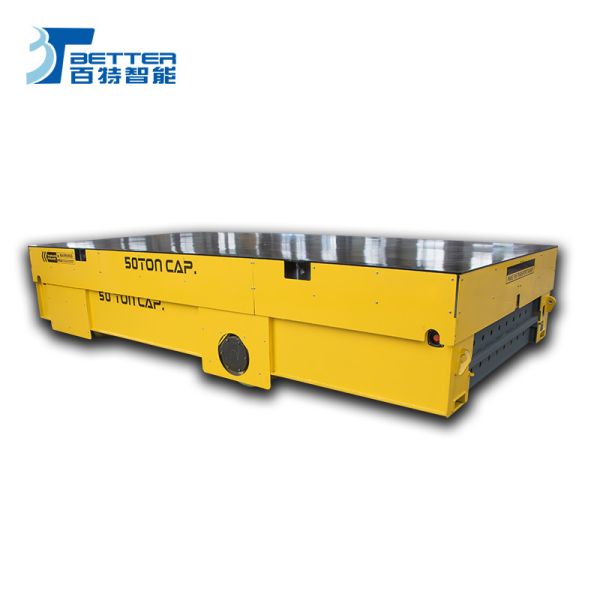

Industrial motorized trackless transfer cart featuring pu wheels for heavy material transport and flexible site navigation

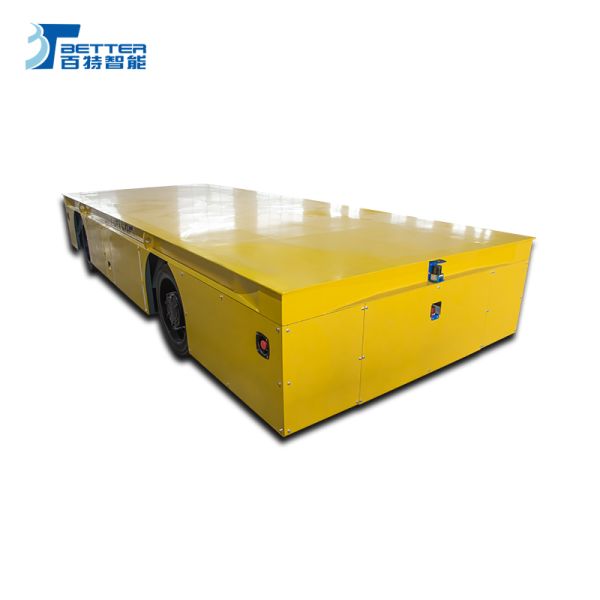

Industrial motorized trackless transfer cart featuring pu wheels for heavy material transport and flexible site navigation

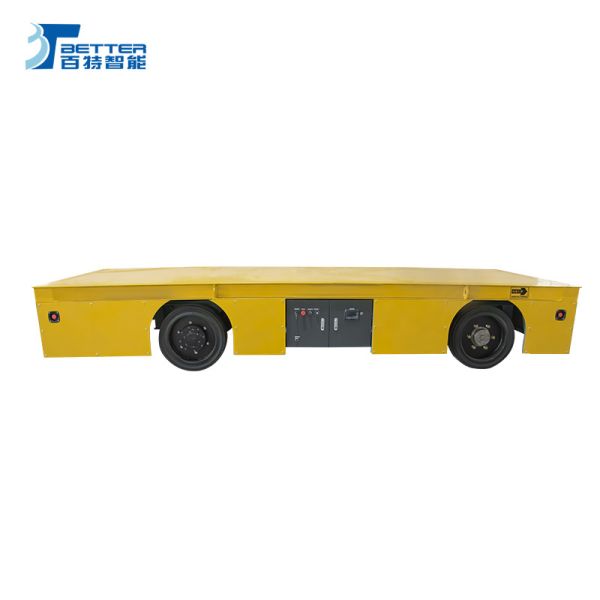

Industrial motorized trackless transfer cart featuring pu wheels for heavy material transport and flexible site navigation
Industrial motorized trackless transfer cart featuring pu wheels for heavy material transport and flexible site navigation
Industrial motorized trackless transfer cart featuring pu wheels for heavy material transport and flexible site navigation
Industrial motorized trackless transfer cart featuring pu wheels for heavy material transport and flexible site navigation
Industrial motorized trackless transfer cart featuring pu wheels for heavy material transport and flexible site navigation
Specifications
Brand Name :
BETTER
Model Number :
BXC
Place of Origin :
Xinxiang
MOQ :
1 Piece
Price :
US$3000-3500
Payment Terms :
L/C,T/T
Supply Ability :
50 Sets/Month
Delivery Time :
15-20 days
Packaging Details :
Single Package: Dimensions 300×200×100 cm; Gross Weight 1000 kg; Quantity per Package 1 unit.
Product Name :
Battery-Power Transfer Cart
Usage :
Heavy Duty Material Transportation
Load Capacity :
1-300ton
Special Function :
Anti-Explosion,Heat-Resistant,Lifting,Customized
Material :
Steel
Transport Package :
The Whole Cart Will Be Packed by Tarp.
Specification :
2000*2000*500
Trademark :
BETTER
Origin :
Xinxiang
HS Code :
84289090
Production Capacity :
50 Sets/Month
Description
Industrial Motorized Trackless Transfer Cart
Electric transfer vehicle designed for industrial heavy-load material transportation featuring high-capacity polyurethane wheels and flexible on-site navigation for free movement without tracks.
Core Configuration
  • Load Capacity: Customizable from 1 to 1500 tons
  • Walking System: Heavy-duty polyurethane rubber-coated wheels with low ground pressure, floor protection, and low operating noise
  • Drive System: High-power AC variable-frequency motor or servo motor with two-wheel or four-wheel drive options, smooth start/stop, and continuous speed adjustment
  • Power System: High energy density lithium iron phosphate battery pack with 8-12 hour range, supporting fast charging and battery swapping
  • Navigation Method: Wireless remote control (standard), laser SLAM natural navigation, magnetic strip/magnetic nail navigation, QR code navigation, or inertial navigation
  • Steering System: Front-wheel steering standard with optional four-wheel steering or omnidirectional wheel set for crab-like movement, diagonal movement, and spinning
  • Control Method: Industrial-grade wireless remote control (standard) or vehicle-mounted touch screen/tablet (optional)
Industrial motorized trackless transfer cart featuring pu wheels for heavy material transport and flexible site navigation
Core Functions
Remote Control & Navigation
Operator-controlled wireless operation for flexible non-fixed route handling. Automatic navigation modes include laser SLAM natural navigation (no ground markers required), magnetic navigation, and QR code navigation for precision fixed path tracking.
Heavy-Load Stable Transportation
Multi-wheel balanced design with optional hydraulic suspension system absorbs impact from uneven road surfaces, ensuring stable operation under heavy loads.
Precise Positioning & Docking
Variable frequency speed regulation and encoder feedback enable precise docking with production lines, shelves, and loading/unloading equipment.
Industrial motorized trackless transfer cart featuring pu wheels for heavy material transport and flexible site navigation Industrial motorized trackless transfer cart featuring pu wheels for heavy material transport and flexible site navigation
Safety Configuration
  • 360° Active Collision Prevention: Laser radar or ultrasonic sensors detect obstacles in real time with automatic slowdown or emergency stop
  • Multiple Emergency Braking: Three-layer safety including remote control emergency stop, vehicle emergency stop button, and mechanical anti-collision bar with automatic braking during signal loss
  • Sound & Light Warning System: Clear audible and visual warnings during operation, turning, and reversing
  • Battery Safety: Intelligent battery management system with protection against overcharging, overdischarging, overheating, and short circuits
Customization Options
  • Platform Customization: Dimensions, shape (flat, concave, swivel neck), ground height tailored to workpiece requirements with hydraulic lifting, rotation, and lateral movement integration
  • Special Carriers: V-shaped saddle seats for rolled materials, T-shaped slot platforms for workpiece fixing, roller lines for automatic loading/unloading, clamping devices
  • Navigation Upgrade: Various navigation methods available with central dispatch system integration for multi-vehicle collaboration
  • Environment Adaptation: Special versions including explosion-proof, high-temperature resistant, corrosion-resistant, and clean room configurations
Product Parameters
Model BXC-2t BXC-5t BXC-10t BXC-16t BXC-20t BXC-25t BXC-30t BXC-40t BXC-50t BXC-63t BXC-80t BXC-100t BXC-150t
Rated Load(t) 2 5 10 16 20 25 30 40 50 63 80 100 150
Table Size (mm) Length(L) 2000 3500 3600 4000 4000 4500 4500 5000 5500 5600 6000 6500 10000
Width(W) 1500 2000 2000 2000 2200 2200 2200 2500 2500 2500 2600 2800 3000
Height(H) 450 500 500 550 550 600 600 650 650 700 800 900 1200
Wheel Base(mm) 1200 2500 2600 2800 2800 3200 3200 3800 4200 4300 4700 4900 7000
Rail Inner Gauge(mm) 1200 1435 1435 1435 1435 1435 1435 1435 1435 1435 1800 2000 2000
Wheel Diameter (mm) 270 270 300 350 350 400 400 500 500 600 600 600 600
Wheel Quantity 4 4 4 4 4 4 4 4 4 4 4 4 8
Ground Clearance(mm) 50 50 50 50 50 50 50 50 50 75 75 75 75
Running Speed (m/min) 0-25 0-25 0-25 0-20 0-20 0-20 0-20 0-20 0-20 0-20 0-20 0-20 0-18
Total Power(kw) 2 3 2.2 2.2 2.2 3 3.5 4 5 6.3 8 10 15
Battery Capacity(Ah) 150 180 180 200 220 220 260 300 330 400 400 440 600
Battery Voltage(V) 48 48 48 48 48 48 48 48 48 48 72 72 72
Running Time When Full Load 4.32 5.4 4.8 4.3 4 4 3.5 3.6 3.3 3 3.6 3.2 2.9
Running Distance for One Charge(km) 6.5 8.1 7.2 5.1 4.8 4.8 4.2 4.3 4 3.6 4.3 3.8 3.2
Max Wheel Load(KN) 14.4 25.8 42.6 64.5 77.7 94.5 110.4 142.8 174 221.4 278.4 343.8 265.2
Recommended Rail Model P15 P18 P18 P24 P24 P38 P38 P43 P43 P50 P50 QU100 QU100
Applications
Ideal for industrial scenarios requiring high ground protection and flexible path navigation:
  • Precision Manufacturing Workshop: Transfer precision molds, machine parts, and electronic products on epoxy floors without damage
  • Automobile Component Assembly Line: Flexible transfer of engines, transmissions, seats between assembly lines
  • Warehousing & Distribution Center: Flexible transfer and picking of heavy palletized goods on wear-resistant floors
  • Steel & Non-Ferrous Metals: High-density stacking and picking operations for steel coils, aluminum coils, and sheet materials on hardened floors
  • Aerospace: Precise transfer and docking of aircraft components within assembly workshops
  • Mold Industry: Transportation of large molds between machining centers and mold clamping areas
Industrial motorized trackless transfer cart featuring pu wheels for heavy material transport and flexible site navigation
Manufacturing Process
  • CNC Cutting: Steel plates transported from raw material warehouse to CNC cutting workshop for precision cutting
  • Preliminary Assembling: Cut steel plates assembled according to design specifications
  • Welding: Automated welding of steel plates using automatic welding machines
  • Post Weld Treatment: Welding section testing, polishing, burring, and stress elimination
  • Spray Primer: Zinc-rich epoxy anti-rust primer application in two layers
  • Assembling: Integration of structure parts with wheels, motors, and gear boxes
  • Paint Finish: Final painting after primer inspection
  • Debugging: Electrical control system testing with no-load and load testing before storage
Industrial motorized trackless transfer cart featuring pu wheels for heavy material transport and flexible site navigation
Customization Inquiry
For custom transfer cart solutions, please provide:
  • Type of load or product to be transferred
  • Weight of heaviest lift or load
  • Dimensions (Length, Width, Height)
  • Trip time and frequency (# of trips per shift, shifts per day)
  • Travel area specifications (rail/cement floor, indoor/outdoor, straight line travel, etc.)
  • Travel distance requirements
  • Other relevant information or operating conditions
Industrial motorized trackless transfer cart featuring pu wheels for heavy material transport and flexible site navigation
Our Advantages
  • Low Noise Operation: Minimal noise level during operation
  • Maximum Safety: Comprehensive safety features for operators and materials
  • Easy Operation: User-friendly driving with comprehensive support
  • Easy Implementation: Operates on standard floors without complex permanent installation
  • Suitable for All Weights: Modular fabrication handles both small and extremely large loads up to 300 tons
Industrial motorized trackless transfer cart featuring pu wheels for heavy material transport and flexible site navigation
Packaging & Shipping
Industrial motorized trackless transfer cart featuring pu wheels for heavy material transport and flexible site navigation Industrial motorized trackless transfer cart featuring pu wheels for heavy material transport and flexible site navigation Industrial motorized trackless transfer cart featuring pu wheels for heavy material transport and flexible site navigation
Certifications
Industrial motorized trackless transfer cart featuring pu wheels for heavy material transport and flexible site navigation Industrial motorized trackless transfer cart featuring pu wheels for heavy material transport and flexible site navigation
