Specifications
MOQ :
1 Piece
Price :
US$3000-3500
Place of Origin :
Xinxiang
Brand Name :
BETTER
Packaging Details :
Single Package: Dimensions 300×200×100 cm; Gross Weight 1000 kg; Quantity per Package 1 unit.
Delivery Time :
15-30 days
Payment Terms :
L/C,T/T
Supply Ability :
50 Sets/Month
Model Number :
AGV
Product Name :
Battery-Power Transfer Cart
Usage :
Heavy Duty Material Transportation
Load Capacity :
1-300ton
Special Function :
Anti-Explosion,Heat-Resistant,Lifting,Customized
Material :
Steel
Transport Package :
The Whole Cart Will Be Packed by Tarp.
Specification :
2000*2000*500
Trademark :
BETTER
Origin :
Xinxiang
HS Code :
84289090
Production Capacity :
50 Sets/Month
Description
220ton Aluminum Industry Using Automatic Rail Guided Tool Cart with Dumping Function

Product Description

Designed for aluminum smelting and processing operations, this rail-guided cart features an automated dumping system with 220-ton capacity. Its heat-resistant structure and dust-proof components withstand harsh plant conditions, while integrated hydraulic tilt mechanism enables precise material discharge into furnaces or electrolytic cells. The automated guidance system ensures seamless integration with production processes, enhancing operational safety and throughput in aluminum manufacturing facilities.

Detailed Photos

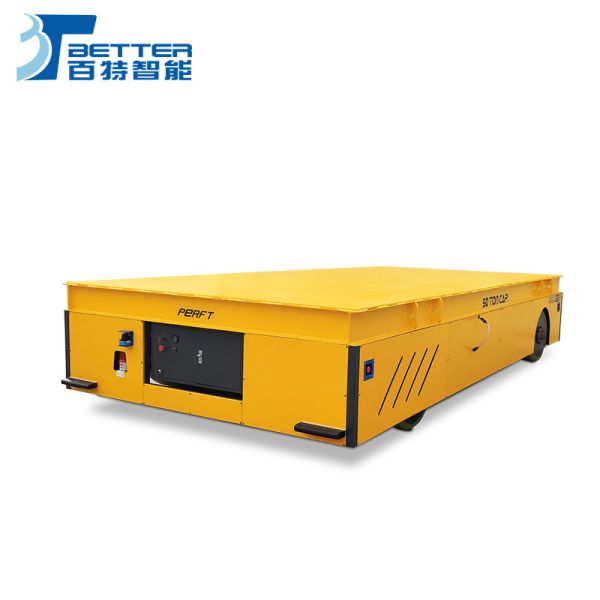

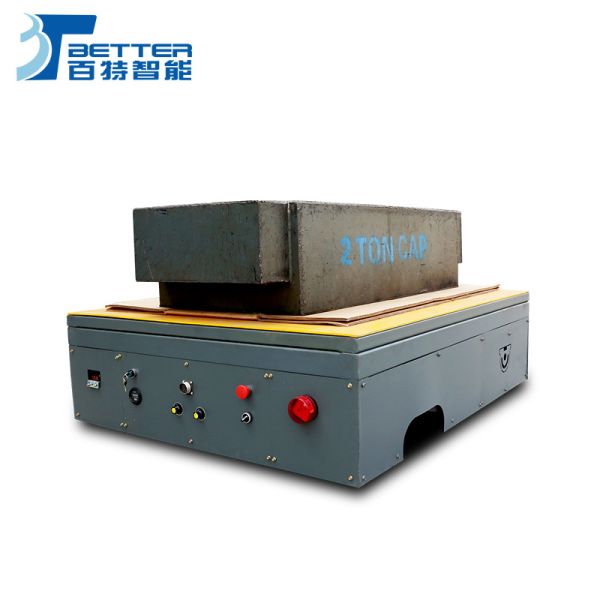

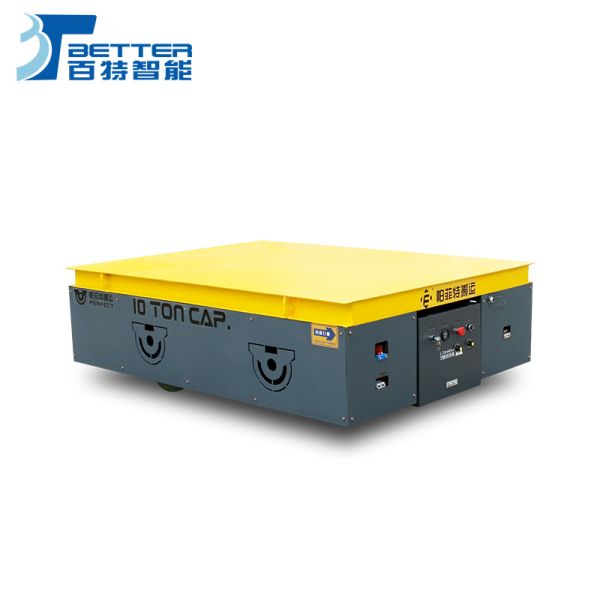

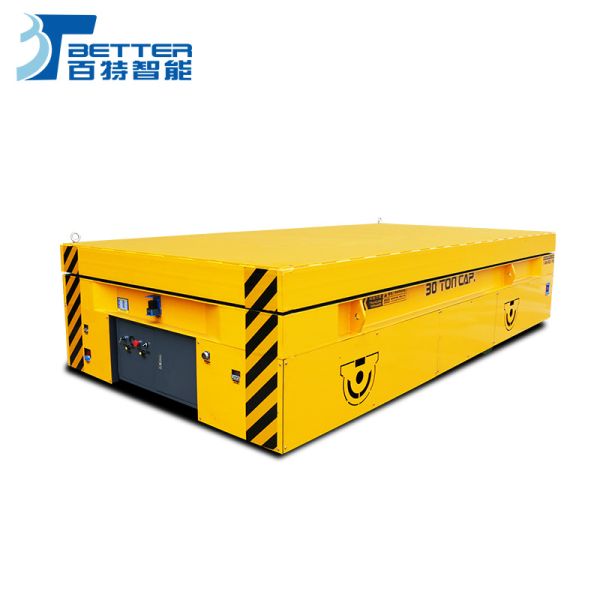

220 Ton Aluminum Industry Automated Guided Vehicle With Dumping Function

Product Parameters

Model AGV-5T AGV-20T AGV-30T AGV-40T
Carrier type Backpack
Appearance dimensions(mm) 3200L*2000W*800H 4000L*2000W*800H 3500L*2200W*800H 5200L*2000W*800H
Load(customizable) 5,000KG 20,000KG 30,000KG 40,000KG
Navigation method Magnetic stripe navigation Magnetic stripe navigation Magnetic navigation Magnetic stripe navigation
Driving mode Wheel drive Wheel drive Steering wheel drive Wheel drive
Communication method Industrial WIFI
Walking direction Forward/Backward/Up/down Forward/Backward/Up/down Move forward/backward/Drive in a straight arc/Turn left or right Forward/Backward/Up/down
Operating speed 20m/min
Stop accuracy ±10mm
Navigation accuracy ± 10mm
Working mode 12 hours 8 hours 24 hours 12 hours
Climbing ability ≦ 3%
Special function Lifting and lowering Remote call ≧4200mm(Magnetic strip laying radius) Fixed mold
Power supply mode Battery-powered Battery-powered Automatic charging/manual charging/battery replacement Battery-powered
Safety sensing range Adjustable within 3 meters, emergency braking distance less than 20mm
Alarm form Dual alarm: voice playback and warning light indication
Safety protection Front and rear area scanning obstacle detection sensors + emergency stop button
Application
High-temperature molten aluminum transfer and automatic pouring
In the aluminum smelting and casting workshop, it is responsible for safely transporting large melting ladles containing high-temperature molten aluminum to the casting machine or mold, and achieving the automatic and precise pouring of molten aluminum through the tipping function.
Automatic cleaning of aluminum slag and waste
Take over the aluminum slag trays under the electrolytic aluminum workshop or smelting furnace, automatically transport them to the designated area, and then achieve efficient and safe automatic unloading and collection of waste materials through the tipping function.
Automatic dumping operation of heavy materials
In aluminum processing plants, it can be used to transport and automatically dump other bulk raw materials or solid waste, meeting the requirements of automated unloading in specific process links.
Core functional integration advantages
Integrating a 220-ton super-large load capacity, automatic track guidance and hydraulic overturning functions, it is specially designed for the harsh working conditions such as high temperature, heavy load and high dust in the aluminum industry, and is a key equipment for achieving automation and safe production.
220 Ton Aluminum Industry Automated Guided Vehicle With Dumping Function

FAQ


How can Transfer Carts be customized?
Please tell us:
What load or product will be transferred onto the cart?
What is the weight of the heaviest lift or load?
What are the dimensions? (Length; Width ; Height)
What is the trip time and frequency? (# of Trips per , Shifts per day:)
What is the travel area you need to cover? (Rail/cement floor, Indoor/Outdoor, straight line travel, etc)
What is the distance to travel?
Other relevant information or using condition.

Our Advantages

---- Low noise It causes low noise level.
---- Maximum safety Offers guarantee of maximum safety for operators and for the material handled. We really care about the safety of everyone involved in the job.
---- Easy for operation These vehicles are easy to drive, so as soon as you get it you will be able to use it to transport your loads. We will support you to make the best out of your heavy load transporter.
---- Easy to implement into manufacturing process Operates on standard floors; Do not require complex or permanent installation
---- Suitable for All Kinds of Weight The steering battery powered trolley is superb for handling both small and extremely huge loads for its modular fabrication and its high payloads: up to 300 ton for each trolley.
