Specifications
MOQ :
1 Piece
Price :
US$3000-3500
Place of Origin :
Xinxiang
Brand Name :
BETTER
Packaging Details :
Single Package: Dimensions 300×200×100 cm; Gross Weight 1000 kg; Quantity per Package 1 unit.
Delivery Time :
15-30 days
Payment Terms :
L/C,T/T
Supply Ability :
50 Sets/Month
Model Number :
BWP
Model NO. :
BWP
Product Name :
Heavy Load Transport Cart
Usage :
Heavy Duty Material Transportation
Application :
Steel Industry, Factory, Warehouse, Port
Material :
Steel
Load Capacity :
1-1500 Tons
Control Mode :
Pendant/Remote/PLC Control
Control Way :
Hand Pendant/Remote Controller
Customized Function :
Anti-Explosion, Heat-Resistant, Lifting, Dumpling
Transport Package :
Other
Trademark :
BETTER
Origin :
China
HS Code :
84289090
Production Capacity :
5000/Years
Description
60 T Capacity Electric Transfer Cart Powered by Lithium Battery Powered

Application of Electric Railway Carriage

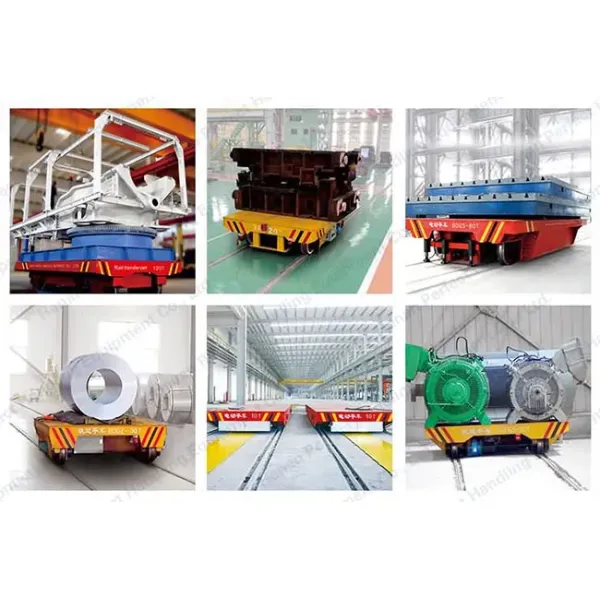

Uses of Electric Railway Carriage:
The Electric Railway Carriage is mainly applied in assembly line (ring production line, loop production line), metallurgy industry (steel ladle), warehouse transport, ship industry (maintenance, assemble, container transport), workpiece transport in workshop, lathe transport, steel factory (steel billet, steel plate, steel coil, steel pipe, section steel, steel structure), construction(bridge, simple building, concrete, concrete column), petroleum industry (oil pump, sucker rod and parts), energy (polycrystalline silicon, generator, windmill), chemical industry (electrolytic cell, retort etc), railway (rail maintenance, rail welding, train tractor).

Working Priciple of Electric Railway Carriage
The Electric Railway Carriage get the power from the battery which is installed inside the car. The current is supplied to pulling motor through electric control system, which makes the car start, stop, move forward, move backward, turn around, change speed, etc. The start-up DC motors installed in the car is smooth with high torque and low voltage, so the impact force to reducer is much weaker.

The Battery of Electric Railway Carriage
1. The battery capacity is depend on the cart load capacity. It can run 4 hours when full-load for no sport working. The cart will load and unload, and will stop times, so the working time is much longer than 4 hours.
2. The battery need 6-8 hours for charging. When it is left 30% power, it will need 4 hours to charge full.

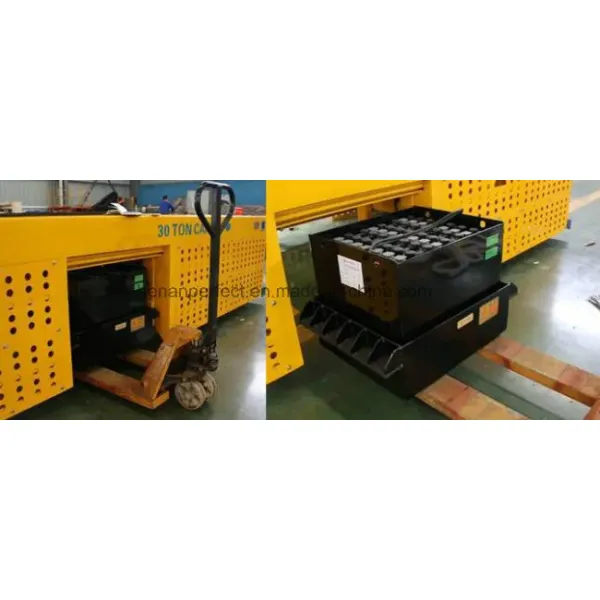

3. The battery is very easy for the replacement. It can be taken out by a forklift or a trolley. The replacement will just need about 5 minutes.
4. The service lift of the battery is 3-4 years, you can charge 1200-1500 times with normal use.



Parameter of Electric Railway Carriage
Model BWP-5t BWP-10 BWP-15 BWP-20t BWP-30t BWP-40t BWP-50t
Rated Load(t) 5 10 15 20 30 40 50
Impacted rated load(t) 7.5 15 22.5 30 45 60 75
Structure of Frame Steel plates welded, beam structure
Thickness of the steel plate 8 10 12 14 14 16 16
Cart weight(t) 4.3 5.3 6.6 7.9 8.8 10 10.5
Max. wheel load (t) 2.8 4.6 4.3 5.6 7.7 10 12
Ground requirement Cement floor or Steel plate ground
Ground Clearance(mm) 50 50 50 50 50 50 50
Table size (mm) 3000*2000 3600*2000 4000*2200 4500*2200 5000*2200 5500*2300 6000*2300
Height of the whole cart (mm) 450 530 600 600 650 700 700
Wheel base (mm) 1500 1500 1500 1700 1700 1800 1800
Axles distance (mm) 2500 3100 3400 3900 4300 4800 5200
Turning radius (mm) 2501 3101 3401 3901 4301 4801 5201
Turning type Turning while driving with no stop
Control method for turning Control button
Turning structure Mechanical
Motor power (KW) 3 4.4 6 7 10 12 15
Wheel diameter (mm) 350-2/220-2 350-2/240-2 400-2/240-2 400-2/320-2 540-2/360 580-2/360-2 580-2/360-2
Wheel material ZG55+hydropurture
Running speed (m/min) 0-20
Brake principle Electric magnetic brake
Ground balance mechanical automatic adjustment
Operation method With wire or no wire
Battery model D-250 24pieces D-330 24pieces D-400 24pieces D-440 24pieces D-250 36pieces D-330 36pieces D440- 36pieces
Battery maintenance Free of maintenance
Charger's installation Installed on cart Split-type
Cart color Yellow and warning sign
Charger's function Automatic stop for obstacles
Radar control 3-0.3 m, Automatic stop for obstacles
Warning equipment Sound and light
Other functions Turning light, night light and power display

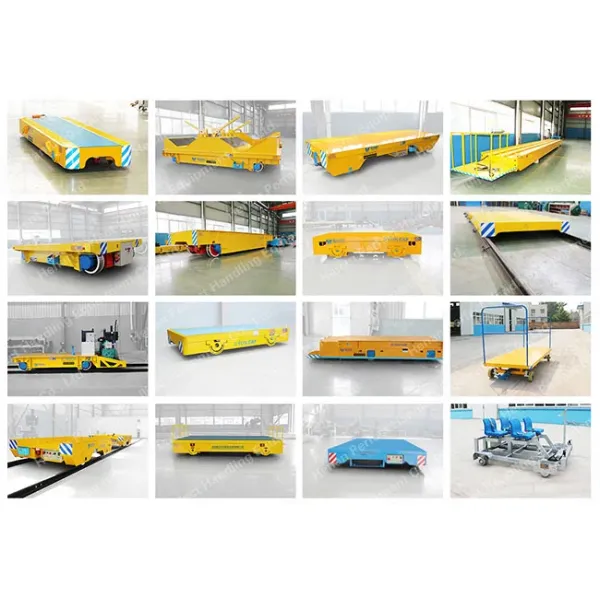

Customized of Electric Railway Carriage
better is specialized in designing and manufacturing of Electric Railway Carriage:
Transfer Cart: Trackless transfer car, Battery operated transport trolley, Coils cart, Ladle transfer cart, Hydraulic scissors lift table cart etc.
Rail Cart: Rail transfer cart, Cross-rail transport trolley, Curved rails transfer cart, S shape railway transport cart, L shape track transporter etc.
Industrial Trailer: Flatbed trailer, Factory trailer, Utility trailer, Workshop transfer trailer, Airport baggage cargo trailer, Car transport trailer, Motorized transfer trailer etc.
Cargo Transportation: Die cart, Coils transport cart, pipes transfer carriage, steel beam transporter, aluminum plate transport vehicle, transformer carrier bogie
Special Handling Equipment: Ladle transfer trolley, Ferry Transfer wagon, Cross-rail transport equipment, Motorized turntable, Vacuum furnace transfer cart, Automatic vehicle etc.


Packaging and Shipping of Electric Railway Carriage
*For length is less than 6m, the width is less than 2.2m. It will be transported by 20ft container. If the length is longer than 5.9m and less than 12m, it will be transported by 40ft container. If the quantity is 2 sets or 3 sets, they can be transported by full container. If the quantity is 1 set, it can be transported by LCL Container.
*If the length is less than 12m, the width is beyond 2.2m. It needs to be transported by flat rack (20 or 40 ft) . If the equipment is beyond above dimension, and quantity need to consider bulk cargo.



Factory and Customer
