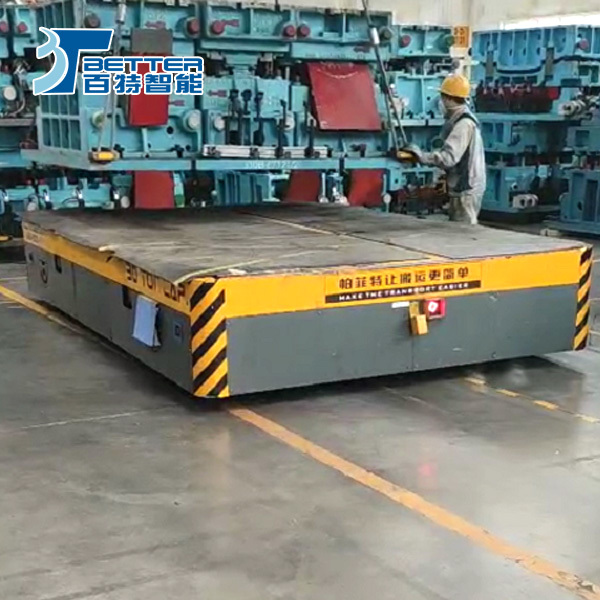

Remote Controlled Trackless Transfer Cart for Press Die Operations
Remote Controlled Trackless Transfer Cart for Press Die Operations
Remote Controlled Trackless Transfer Cart for Press Die Operations
Remote Controlled Trackless Transfer Cart for Press Die Operations
Remote Controlled Trackless Transfer Cart for Press Die Operations
Remote Controlled Trackless Transfer Cart for Press Die Operations
Remote Controlled Trackless Transfer Cart for Press Die Operations
Remote Controlled Trackless Transfer Cart for Press Die Operations
Remote Controlled Trackless Transfer Cart for Press Die Operations
Remote Controlled Trackless Transfer Cart for Press Die Operations
Specifications
Brand Name :
BETTER
Model Number :
BXC
Place of Origin :
Xinxiang
MOQ :
1 Piece
Price :
US$3000-3500
Payment Terms :
L/C,T/T
Supply Ability :
50 Sets/Month
Delivery Time :
15-30 days
Packaging Details :
Single Package: Dimensions 300×200×100 cm; Gross Weight 1000 kg; Quantity per Package 1 unit.
Product Name :
Battery-Power Transfer Cart
Usage :
Heavy Duty Material Transportation
Load Capacity :
1-300ton
Special Function :
Anti-Explosion,Heat-Resistant,Lifting,Customized
Material :
Steel
Transport Package :
The Whole Cart Will Be Packed by Tarp.
Specification :
2000*2000*500
Trademark :
BETTER
Origin :
Xinxiang
HS Code :
84289090
Production Capacity :
50 Sets/Month
Description
Remote Controlled Trackless Transfer Cart for Press Die Operations
Description---Die Transfer Cart
Our Die Transfer Cars operate on rail and travel along side the press and move from die storage to the press. These units operate on either battery or AC power supply. All units are designed to both push and pull a die from the press and can be equipped with a wide range of "lift" features.

The Remote Controlled Trackless Transfer Cart is a specialized solution engineered to optimize press die operations in industrial manufacturing. It allows operators to manage the entire die handling process—from storage to press line positioning—via an intuitive wireless remote, ensuring precise control and enhanced safety. The cart’s trackless design provides the flexibility to navigate tightly spaced machinery and congested shop floors without fixed infrastructure limitations. Built with a rigid frame, customizable die-adaptor interfaces, and millimeter-level alignment capability, it guarantees stable and damage-free transport of high-value dies. By streamlining die changes and reducing manual intervention, this cart minimizes press downtime, improves operational efficiency, and supports seamless workflow integration in stamping and molding facilities.
Advantages---Die Transfer Cart
----Low noise:It causes low noise level.
----Maximum safety:Offers guarantee of maximum safety for operators and for the material handled. We really care about the safety of everyone involved in the job.
----Easy for operation: These vehicles are easy to drive, so as soon as you get it you will be able to use it to transport your loads. We will support you to make the best out of your heavy load transporter.
---Flexible: The transfer cars eliminate first-in/first-out or fixed move paths
Remote Controlled Trackless Transfer Cart for Press Die Operations

Product Parameters
Model BXC-2t BXC-5t BXC-10t BXC-16t BXC-20t BXC-25t BXC-30t BXC-40t BXC-50t BXC-63t BXC-80t BXC-100t BXC-150t
Rated Load(t) 2 5 10 16 20 25 30 40 50 63 80 100 150
Table Size (mm) Length(L) 2000 3500 3600 4000 4000 4500 4500 5000 5500 5600 6000 6500 10000
Width(W) 1500 2000 2000 2000 2200 2200 2200 2500 2500 2500 2600 2800 3000
Height(H) 450 500 500 550 550 600 600 650 650 700 800 900 1200
Wheel Base(mm) 1200 2500 2600 2800 2800 3200 3200 3800 4200 4300 4700 4900 7000
Rail Inner Gauge(mm) 1200 1435 1435 1435 1435 1435 1435 1435 1435 1435 1800 2000 2000
Wheel Diameter (mm) 270 270 300 350 350 400 400 500 500 600 600 600 600
Wheel Quantity 4 4 4 4 4 4 4 4 4 4 4 4 8
Ground Clearance(mm) 50 50 50 50 50 50 50 50 50 75 75 75 75
Running Speed (m/min) 0-25 0-25 0-25 0-20 0-20 0-20 0-20 0-20 0-20 0-20 0-20 0-20 0-18
Total Power(kw) 2 3 2.2 2.2 2.2 3 3.5 4 5 6.3 8 10 15
Battery Capacity(Ah) 150 180 180 200 220 220 260 300 330 400 400 440 600
Battery Voltage(V) 48 48 48 48 48 48 48 48 48 48 72 72 72
Running Time When Full Load 4.32 5.4 4.8 4.3 4 4 3.5 3.6 3.3 3 3.6 3.2 2.9
Running Distance for One Charge(km) 6.5 8.1 7.2 5.1 4.8 4.8 4.2 4.3 4 3.6 4.3 3.8 3.2
Max Wheel Load(KN) 14.4 25.8 42.6 64.5 77.7 94.5 110.4 142.8 174 221.4 278.4 343.8 265.2
Recommended Rail Model P15 P18 P18 P24 P24 P38 P38 P43 P43 P50 P50 QU100 QU100


Application---Die Transfer Cart

Realize the safe and efficient flow of heavy-duty molds between the warehouse and the press
With its heavy-duty load capacity and trackless design, it can flexibly and reliably transfer large molds between the mold storage area and stamping production lines of different tonnages, significantly improving the efficiency of mold scheduling.

Ensure the integrity of high-value precision molds during transportation
Through a smooth hydraulic or electric drive system, it ensures that molds weighing tens to hundreds of tons are free from shock and vibration during transportation, effectively protecting the precise surfaces and internal structures of the molds.

Precisely connect with the press worktable and optimize the mold changing process
Equipped with precise positioning devices, it can achieve rapid and accurate height and horizontal alignment with various large presses, safely delivering heavy molds into the working area and significantly reducing the downtime for mold changing.

Strengthen the standardization and space utilization of mold storage management
As a flexible logistics unit, it can efficiently carry out the warehousing, outbound and in-warehouse organization of molds, and in combination with standardized mold racks, improve the space utilization rate and management order of the mold warehouse.

Remote Controlled Trackless Transfer Cart for Press Die Operations


Customized---Die Transfer Cart
Mechanical Options Include:
─ Deck Railings
─ Wood Decking Material
─ Screw-Jack Lift Deck
─ Paint Color (customer specified)
─ Rail Guides
─ Running on Floor or Rail
─ End Stops
─ Urethane Wheels (not available on guided carts)
─ Live Axle

Custormer visit---Die Transfer Cart
Remote Controlled Trackless Transfer Cart for Press Die Operations

Packing and shipping---Die Transfer Cart
*For lenght is less than 6m, the width is less than 2.2m. It will be transported by 20ft container. If the length is longer than 5.9m and less than 12m, it will be transported by 40ft container. If the quantity is 2 sets or 3 sets, they can be transported by full container. If the quantity is 1 set, it can be transported by LCL Container.
*If the length is less than 12m, the width is beyond 2.2m. It needs to be transported by flat rack (20 or 40 ft) . If the equipment is beyond above dimension, and quantity need to consider bulk cargo.
Remote Controlled Trackless Transfer Cart for Press Die Operations

Our Company
Our factory is located in Xinxiang City, Henan province. Our company has 15 years of industry experience, passed ISO9001 Quality management system and got the CE, SASO, SGS certificate.
we can produce all kinds of transfer cart from 1-1300 tons, our main products including BDG series Transfer cart , BJT cable drum series Transfer cart , BHX safety sliding line series Transfer cart , BXC battery series Transfer cart , BTL towed cable series Transfer cart , BP non-power series Transfer cart , BQY train towed series Transfer cart , BWP trackless series Transfer cart and special Transfer cart , such as turning, trackless, ladle, hydraulic lifting, ferry, painting room, blasting booth etc.
