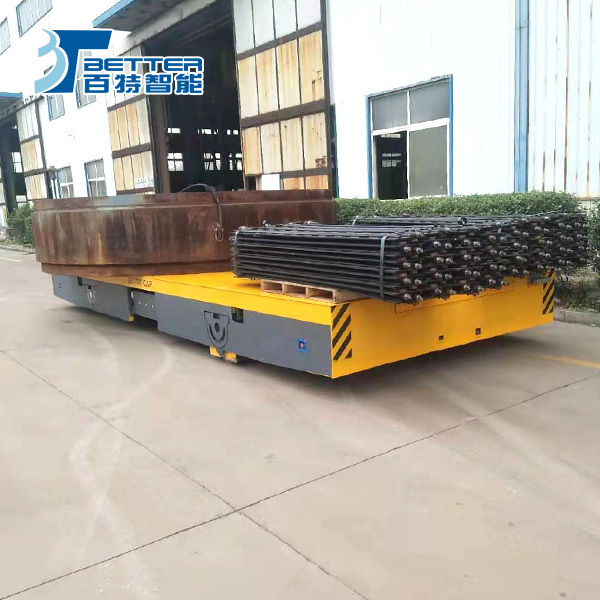

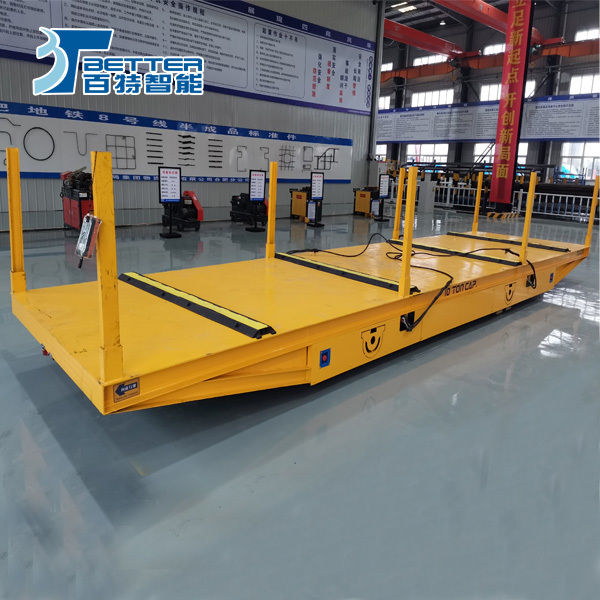

Customizable Trackless Transfer Cart for Material Handling in Limited Spaces
Customizable Trackless Transfer Cart for Material Handling in Limited Spaces
Customizable Trackless Transfer Cart for Material Handling in Limited Spaces
Customizable Trackless Transfer Cart for Material Handling in Limited Spaces
Customizable Trackless Transfer Cart for Material Handling in Limited Spaces
Customizable Trackless Transfer Cart for Material Handling in Limited Spaces
Customizable Trackless Transfer Cart for Material Handling in Limited Spaces
Customizable Trackless Transfer Cart for Material Handling in Limited Spaces
Customizable Trackless Transfer Cart for Material Handling in Limited Spaces
Customizable Trackless Transfer Cart for Material Handling in Limited Spaces
Customizable Trackless Transfer Cart for Material Handling in Limited Spaces
Customizable Trackless Transfer Cart for Material Handling in Limited Spaces
Specifications
Brand Name :
BETTER
Model Number :
BWP
Place of Origin :
Xinxiang
MOQ :
1 Piece
Price :
US$3000-3500
Payment Terms :
L/C,T/T
Supply Ability :
50 Sets/Month
Delivery Time :
15-30 days
Packaging Details :
Single Package: Dimensions 300×200×100 cm; Gross Weight 1000 kg; Quantity per Package 1 unit.
Product Name :
Motorized Handling Vehicle
Usage :
Heavy Duty Material Transportation
Application :
Steel Industry, Factory, Warehouse, Port
Load Capacity :
1-300 Ton
Special Function :
Anti-Explosion, Heat-Resistant, Lifting, Dumpling
Control Mode :
Pendant/Remote/PLC Control
Power Mode :
Battery, Cable, Conductive Rails
Material :
Steel
Transport Package :
The Whole Cart Will Be Packed by Tarp.
Specification :
2000*2000*500
Trademark :
BETTER
Origin :
Xinxiang
HS Code :
84289090
Production Capacity :
50 Sets/Month
Description
Customizable Trackless Transfer Cart for Material Handling in Limited Spaces

1. Introduction of Motorized Handling Vehicle
The Customizable Trackless Transfer Cart is a compact yet powerful solution engineered for efficient material handling in confined or limited-space environments. Its modular design allows for tailored configurations—including adjustable dimensions, specialized deck surfaces, and custom lifting or clamping attachments—to meet specific operational needs without compromising performance. The trackless capability ensures exceptional maneuverability around tight corners, narrow aisles, and between equipment, eliminating the need for fixed infrastructure. Built with precision steering controls and robust safety features such as anti-collision sensors and stability monitoring, this cart guarantees safe and accurate transport of goods even in densely organized facilities. Ideal for warehouses, assembly lines, and compact workshops, it maximizes space utilization, enhances workflow adaptability, and boosts productivity where conventional equipment cannot operate.

2. Details of Motorized Handling Vehicle

3. Application of Motorized Handling Vehicle

Achieve efficient material flow in narrow Spaces
With its customizable compact size and flexible steering, it can freely move through narrow passageways and space-constrained operation areas, ensuring the safe distribution and turnover of materials.

Adapt to the precise connection of non-standard layouts and special vehicles
It can be customized according to the on-site equipment layout, shelf spacing or the size of specific carriers to ensure rapid and precise connection with the target workstation in a limited space.

Ensure the flexibility and security of material access in dense storage areas
Its customized body and control system can operate stably beside dense shelves or crowded production lines, effectively avoiding collision accidents and improving space utilization and operation safety.

The modular design meets the requirements for future layout adjustments and functional expansions
The design based on the modular concept allows vehicles to be readjuted in terms of function and size according to future production line reorganization or process changes, providing a long-term handling solution for limited factory space.




4. Parameter of Motorized Handling Vehicle
Model BWP-5t BWP-10 BWP-15 BWP-20t BWP-30t BWP-40t BWP-50t
Rated Load(t) 5 10 15 20 30 40 50
Impacted rated load(t) 7.5 15 22.5 30 45 60 75
Structure of Frame Steel plates welded, beam structure
Thickness of the steel plate 8 10 12 14 14 16 16
Cart weight(t) 4.3 5.3 6.6 7.9 8.8 10 10.5
Max. wheel load (t) 2.8 4.6 4.3 5.6 7.7 10 12
Ground requirement Cement floor or Steel plate ground
Ground Clearance(mm) 50 50 50 50 50 50 50
Table size (mm) 3000*2000 3600*2000 4000*2200 4500*2200 5000*2200 5500*2300 6000*2300
Height of the whole cart (mm) 450 530 600 600 650 700 700
Wheel base (mm) 1500 1500 1500 1700 1700 1800 1800
Axles distance (mm) 2500 3100 3400 3900 4300 4800 5200
Turning radius (mm) 2501 3101 3401 3901 4301 4801 5201
Turning type Turning while driving with no stop
Control method for turning Control button
Turning structure Mechanical
Motor power (KW) 3 4.4 6 7 10 12 15
Wheel diameter (mm) 350-2/220-2 350-2/240-2 400-2/240-2 400-2/320-2 540-2/360 580-2/360-2 580-2/360-2
Wheel material ZG55+hydropurture
Running speed (m/min) 0-20
Brake principle Electric magnetic brake
Ground balance mechanical automatic adjustment
Operation method With wire or no wire
Battery model D-250 24pieces D-330 24pieces D-400 24pieces D-440 24pieces D-250 36pieces D-330 36pieces D-440 36pieces
Battery maintenance Free of maintenance
Charger's installation Installed on cart Split-type
Cart color Yellow and warning sign
Charger's function Automatic stop for obstacles
Radar control 3-0.3 m, Automatic stop for obstacles
Warning equipment Sound and light
Other functions Turning light, night light and power display

5. Our Company
Henan BETTER Handling Equipment Co., Ltd. is specializing in the Design and Manufacture of transport system to solve every material handling requirement. Our product includes Industrial Trailers, Transfer Cars, Electric Railway Transfer Trolley, Scissor Lift Tables, Turntables and many other specialty items. We design our special transfer cars for all kind of industries. We can manufacture them according to clients' specifications. For example, we can prepare them to be used in rails, with autonomous batteries or for special applications.


6.Customization of Motorized Handling Vehicle

Mechanical Options Include:
─ Deck Railings
─ Wood Decking Material
─ Screw-Jack Lift Deck
─ Paint Color (customer specified)
─ Rail Guides
─ End Stops
─ Urethane Wheels (not available on guided carts)
─ Live Axle

7. Q&A
How can Transfer Carts be customized?
Please tell us:
What load or product will be transferred onto the cart?
What is the weight of the heaviest lift or load?
What are the dimensions? (Length; Width ; Height)
What is the trip time and frequency? (# of Trips per , Shifts per day:)
What is the travel area you need to cover? (Rail/cement floor, Indoor/Outdoor, straight line travel, etc)
What is the distance to travel?
Other relevant information or using condition.
