Specifications
MOQ :
1 Piece
Price :
US$3000-3500
Place of Origin :
Xinxiang
Brand Name :
BETTER
Packaging Details :
Single Package: Dimensions 300×200×100 cm; Gross Weight 1000 kg; Quantity per Package 1 unit.
Delivery Time :
15-30 days
Payment Terms :
L/C,T/T
Supply Ability :
50 Sets/Month
Model Number :
BXC
Model NO. :
BXC
Product Name :
Heavy Cargo Transfer Vehicle
Usage :
Heavy Duty Material Transportation
Application :
Steel Industry, Factory, Warehouse, Port
Material :
Steel
Load Capacity :
1-1500 Tons
Control Mode :
Pendant/Remote/PLC Control
Transport Package :
Other
Specification :
20 ton
Trademark :
BETTER
Origin :
China
HS Code :
84289090
Description

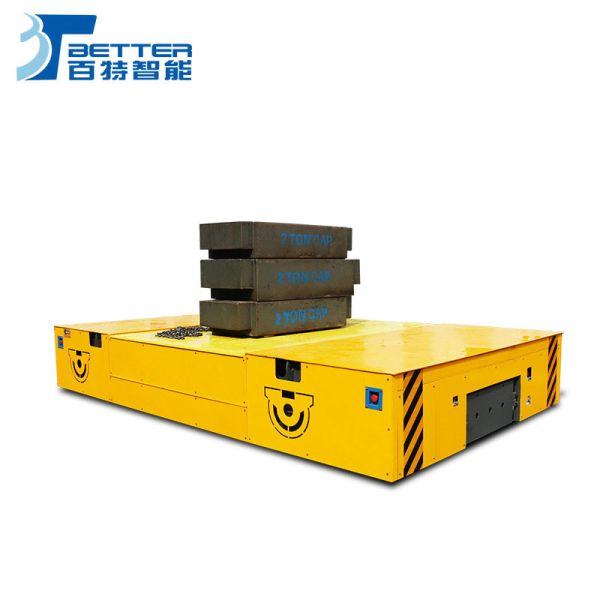

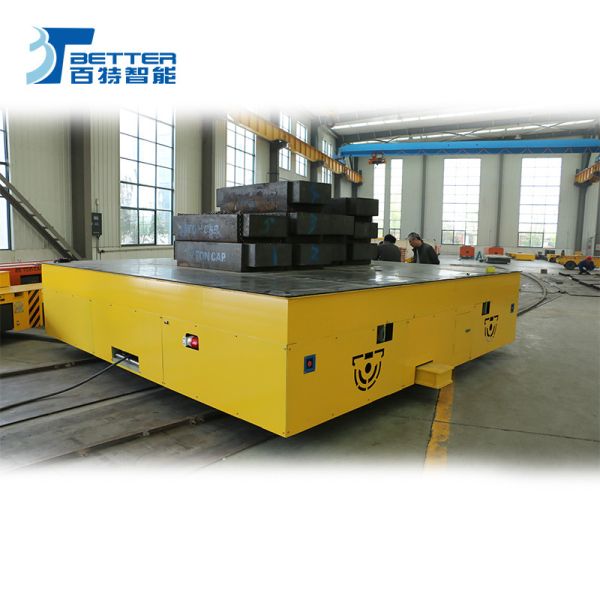

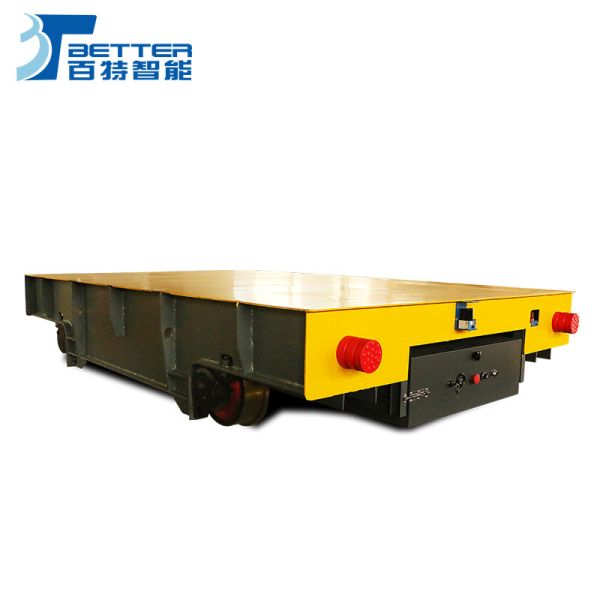

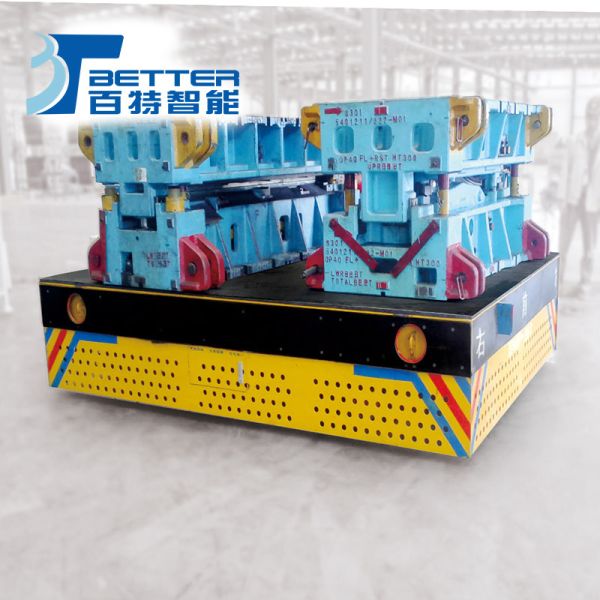

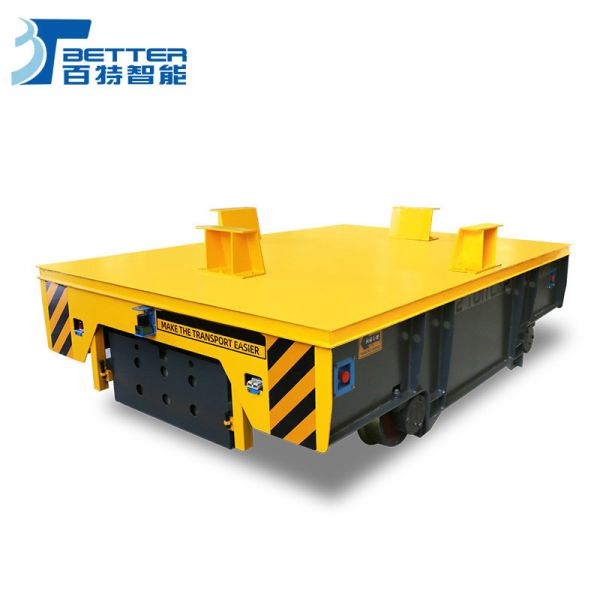

China supply electric transport carriage motorized heavy cargo transfer vehicle

Product Description

Our company designs and manufactures a various electric transport carriage for heavy industrial factories for workshop material handling. Our products include electric transfer cart, electric transport carriage, die transport trolley, railway guided transfer trolley, coils and pipes motorized transfer vehicle, ladle transporters, rail turntable, mold transfer car and son on.

All our electric transport carriage can be customized as specific requirements with working environment, they would be used to carry heavy cargo along fixed rail lines or work through whole warehouses with steerable wheels.

Application of products

Our products are mainly used to transport heavy cargo and products from one place to another, they could work cooperate with crane or transport independently along assembly lines or all around within warehouse,metallurgy, die factory, shipyards, manufacture, mining, coal industry, paper mills and others.



Product Parameters

Model BXC-2t BXC-5t BXC-10t BXC-16t BXC-20t BXC-25t BXC-30t BXC-40t BXC-50t BXC-63t BXC-80t BXC-100t BXC-150t
Rated Load(t) 2 5 10 16 20 25 30 40 50 63 80 100 150
Table Size (mm) Length(L) 2000 3500 3600 4000 4000 4500 4500 5000 5500 5600 6000 6500 10000
Width(W) 1500 2000 2000 2000 2200 2200 2200 2500 2500 2500 2600 2800 3000
Height(H) 450 500 500 550 550 600 600 650 650 700 800 900 1200
Wheel Base(mm) 1200 2500 2600 2800 2800 3200 3200 3800 4200 4300 4700 4900 7000
Rail Inner Gauge(mm) 1200 1435 1435 1435 1435 1435 1435 1435 1435 1435 1800 2000 2000
Wheel Diameter (mm) 270 270 300 350 350 400 400 500 500 600 600 600 600
Wheel Quantity 4 4 4 4 4 4 4 4 4 4 4 4 8
Ground Clearance(mm) 50 50 50 50 50 50 50 50 50 75 75 75 75
Running Speed (m/min) 0-25 0-25 0-25 0-20 0-20 0-20 0-20 0-20 0-20 0-20 0-20 0-20 0-18
Total Power(kw) 2 3 2.2 2.2 2.2 3 3.5 4 5 6.3 8 10 15
Battery Capacity(Ah) 150 180 180 200 220 220 260 300 330 400 400 440 600
Battery Voltage(V) 48 48 48 48 48 48 48 48 48 48 72 72 72
Running Time When Full Load 4.32 5.4 4.8 4.3 4 4 3.5 3.6 3.3 3 3.6 3.2 2.9
Running Distance for One Charge(km) 6.5 8.1 7.2 5.1 4.8 4.8 4.2 4.3 4 3.6 4.3 3.8 3.2
Max Wheel Load(KN) 14.4 25.8 42.6 64.5 77.7 94.5 110.4 142.8 174 221.4 278.4 343.8 265.2
Recommended Rail Model P15 P18 P18 P24 P24 P38 P38 P43 P43 P50 P50 QU100 QU100
