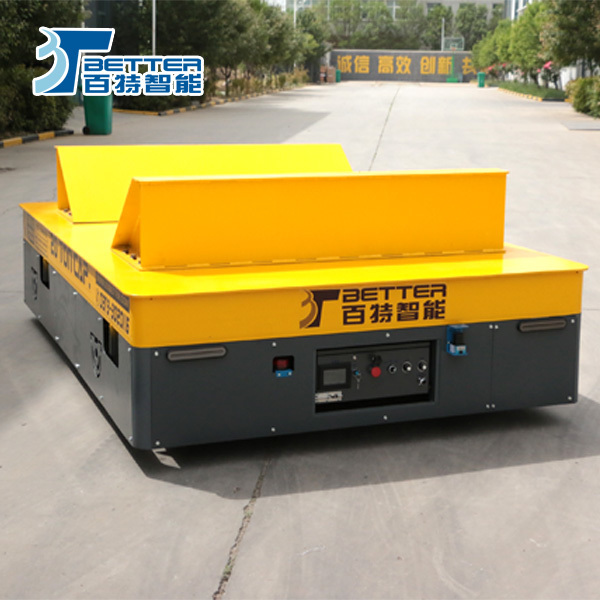

Flexible Trackless Transfer Cart for Material Transfer in Heavy Duty Industrial Applications
Flexible Trackless Transfer Cart for Material Transfer in Heavy Duty Industrial Applications
Flexible Trackless Transfer Cart for Material Transfer in Heavy Duty Industrial Applications
Flexible Trackless Transfer Cart for Material Transfer in Heavy Duty Industrial Applications
Flexible Trackless Transfer Cart for Material Transfer in Heavy Duty Industrial Applications
Flexible Trackless Transfer Cart for Material Transfer in Heavy Duty Industrial Applications
Flexible Trackless Transfer Cart for Material Transfer in Heavy Duty Industrial Applications
Flexible Trackless Transfer Cart for Material Transfer in Heavy Duty Industrial Applications
Flexible Trackless Transfer Cart for Material Transfer in Heavy Duty Industrial Applications
Flexible Trackless Transfer Cart for Material Transfer in Heavy Duty Industrial Applications
Specifications
Brand Name :
BETTER
Model Number :
BWP
Place of Origin :
Xinxiang
MOQ :
1 Piece
Price :
US$3000-3500
Payment Terms :
L/C,T/T
Supply Ability :
50 Sets/Month
Delivery Time :
15-30 days
Packaging Details :
Single Package: Dimensions 300×200×100 cm; Gross Weight 1000 kg; Quantity per Package 1 unit.
Product Name :
Heavy Load Transport Cart
Usage :
Heavy Duty Material Transportation
Application :
Steel Industry, Factory, Warehouse, Port
Material :
Steel
Load Capacity :
1-1500 Tons
Control Mode :
Pendant/Remote/PLC Control
Control Way :
Hand Pendant/Remote Controller
Customized Function :
Anti-Explosion, Heat-Resistant, Lifting, Dumpling
Transport Package :
Other
Trademark :
BETTER
Origin :
China
HS Code :
84289090
Production Capacity :
5000/Years
Description
Flexible Trackless Transfer Cart for Material Transfer in Heavy Duty Industrial Applications
Product Description

1. Product description---Material Transfer Trolley
The Flexible Trackless Transfer Cart is engineered for demanding material transfer tasks in heavy-duty industrial applications. Its rail-free design provides exceptional adaptability to navigate complex factory layouts, congested production areas, and evolving workflow configurations without infrastructure modifications. Built with a reinforced chassis and high-torque drive system, it ensures stable transportation of heavy loads under rigorous operating conditions. Customizable decks and intelligent control systems enable seamless handling of diverse materials—from raw components to finished products. By combining rugged reliability with operational versatility, this cart significantly enhances logistics efficiency, reduces manual intervention, and supports continuous productivity in sectors like metalworking, automotive assembly, and bulk material processing.


2. Product Purpose---Material Transfer Trolley
3. Customized Product---Material Transfer Trolley
We design & manufacture of high quality motorized material transfer trolleys according to per client' requirements. It's optional in various size and shape. We used preeminent quality of steel, iron for all the transfer trolleys manufacturing.

4.Technical Parameter---Material Transfer Trolley
Technical Parameters for Electric Transfer Carts
1 rated load(t) 5 10 15 20 30 40 50
2 impacted rated load(t) 7.5 15 22.5 30 45 60 75
3 structure of frame steel plates welded,beam structure
4 thickness of the steel plate(mm) 8 10 12 14 14 16 16
5 cart weight(t) 4.3 5.3 6.6 7.9 8.8 10 10.5
6 max. wheel load(t) 2.8 4.6 4.3 5.6 7.7 10 12
7 ground requirement cement floor steel plate ground
8 table size(mm) 3000x2000 3600x2000 4000x2200 4500x2200 5000x2200 5500x2300 6000x2300
9 height of the whole cart(mm) 450 530 600 600 650 700 700
10 ground clearance(mm) 50
11 (mm)wheels base 1500 1700 1800
12 (mm)axles distance 2500 3100 3400 3900 4300 4800 5200
13 turning radius(mm) 2501 3101 3401 3901 4301 4801 5201
14 turning type turning while driving with no stop
15 control method for turning control button
16 turning structure mechanical
17 motor power(Kw) 3.5 5 6 7 10 12 15
18 (mm)wheel diameter Ф300(4) Ф350(4) Ф400(4) Ф400(6) Ф500(6)
19 wheel material ZG55+hydropur ture
20 running speed(m/min) 0-15 0-12
21 brake principle electric magnetic brake
22 ground balance mechanical automatic adjustment
23 operation method with wire or no wire
24 battery model D-250 24 D-330 24 D-400 24 D-440 24 D-250 36 D-330 36 D-440 36
25 battery maintainance free of maintainance
26 charger's installation installed on cart split-type
27 charger function automatic charging
28 cart color yellow and warning sign
29 radar control 3-0.3m,automatic stop for obstacles
30 warning equipment sound and light
31 other functions turning light,night light and power display

5. Other Products
Based on modern plant and advanced production equipment, we can produce all kinds of handling equipment from 1-300 tons, our main products including BDG conductor rail equipment, BJT cable drum type, BHX safety sliding line type, BXC battery type, BTL towed cable type, BP non-power type, BQY train towed type, BWP trackless type and special type, such as turning cart, trackless cart, ladle car, hydraulic lifting car, ferry car, painting room car, blasting booth car, etc.

6. Custormer Visit

7. Packing and Shipping
For lenght is less than 6m, the width is less than 2.2m. It will be transported by 20ft container. If the length is longer than 5.9m and less than 12m, it will be transported by 40ft container. If the quantity is 2 sets or 3 sets, they can be transported by full container. If the quantity is 1 set, it can be transported by LCL Container.
If the length is less than 12m, the width is beyond 2.2m. It needs to be transported by flat rack (20 or 40 ft) . If the equipment is beyond above dimension, and quantity need to consider bulk cargo.
