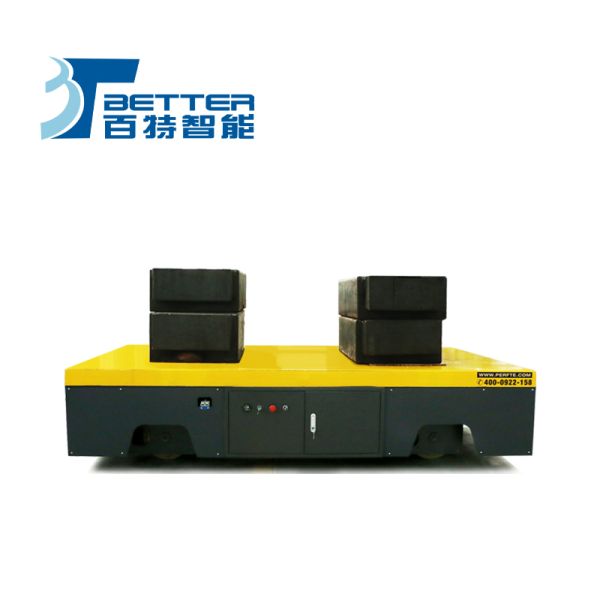

Battery-Powered Trackless Transfer Cart with 1-300ton Load Capacity, Anti-Explosion, and Heat-Resistant Features
Battery-Powered Trackless Transfer Cart with 1-300ton Load Capacity, Anti-Explosion, and Heat-Resistant Features
Battery-Powered Trackless Transfer Cart with 1-300ton Load Capacity, Anti-Explosion, and Heat-Resistant Features
Battery-Powered Trackless Transfer Cart with 1-300ton Load Capacity, Anti-Explosion, and Heat-Resistant Features
Battery-Powered Trackless Transfer Cart with 1-300ton Load Capacity, Anti-Explosion, and Heat-Resistant Features
Battery-Powered Trackless Transfer Cart with 1-300ton Load Capacity, Anti-Explosion, and Heat-Resistant Features
Battery-Powered Trackless Transfer Cart with 1-300ton Load Capacity, Anti-Explosion, and Heat-Resistant Features
Battery-Powered Trackless Transfer Cart with 1-300ton Load Capacity, Anti-Explosion, and Heat-Resistant Features
Specifications
Model Number :
BXC
Usage :
Heavy Duty Material Transportation
Price :
US$3000-3500
Packaging Details :
Single Package: Dimensions 300×200×100 cm; Gross Weight 1000 kg; Quantity per Package 1 unit.
Material :
Steel
Origin :
Xinxiang
Supply Ability :
50 Sets/Month
Specification :
2000*2000*500
Running Speed :
0-25 m/min
Payment Terms :
L/C,T/T
Transport Package :
The Whole Cart Will Be Packed by Tarp.
Battery Voltage :
48V
Wheel Quantity :
4
Delivery Time :
15-25 days
Trademark :
BETTER
Production Capacity :
50 Sets/Month
Brand Name :
BETTER
Product Name :
Battery-Power Transfer Cart
Place of Origin :
Xinxiang
Load Capacity :
1-300ton
MOQ :
1 Piece
Special Function :
Anti-Explosion,Heat-Resistant,Lifting,Customized
HS Code :
84289090
Description
Battery Powered Rail Transfer Cart
Battery powered rail transfer cart is powered by battery, the battery is installed inside the flat cart. The power supply provides power to DC traction motors through an electrical control system to control start, stop, advance, retreat, speed control, etc. of the flat cart.
Battery powered rail transfer cart is a rail electric transport cart in the factory. It has the characteristics of simple structure, convenient use, large carrying capacity, easy maintenance, long service life, etc. Because of its convenience, economy, practicality, easy cleaning and many other advantages, it has become the preferred transport cart for moving heavy objects regularly when the journey is fixed.

Battery-Powered Trackless Transfer Cart with 1-300ton Load Capacity, Anti-Explosion, and Heat-Resistant Features

Technical Specifications
Model BXC-2t BXC-5t BXC-10t BXC-16t BXC-20t BXC-25t BXC-30t BXC-40t BXC-50t BXC-63t BXC-80t BXC-100t BXC-150t
Rated Load (t) 2 5 10 16 20 25 30 40 50 63 80 100 150
Table Size Length (mm) 2000 3500 3600 4000 4000 4500 4500 5000 5500 5600 6000 6500 10000
Table Size Width (mm) 1500 2000 2000 2000 2200 2200 2200 2500 2500 2500 2600 2800 3000
Table Size Height (mm) 450 500 500 550 550 600 600 650 650 700 800 900 1200
Wheel Base (mm) 1200 2500 2600 2800 2800 3200 3200 3800 4200 4300 4700 4900 7000
Rail Inner Gauge (mm) 1200 1435 1435 1435 1435 1435 1435 1435 1435 1435 1800 2000 2000
Wheel Diameter (mm) 270 270 300 350 350 400 400 500 500 600 600 600 600
Wheel Quantity 4 4 4 4 4 4 4 4 4 4 4 4 8
Ground Clearance (mm) 50 50 50 50 50 50 50 50 50 75 75 75 75
Running Speed (m/min) 0-25 0-25 0-25 0-20 0-20 0-20 0-20 0-20 0-20 0-20 0-20 0-20 0-18
Total Power (kw) 2 3 2.2 2.2 2.2 3 3.5 4 5 6.3 8 10 15
Battery Capacity (Ah) 150 180 180 200 220 220 260 300 330 400 400 440 600
Battery Voltage (V) 48 48 48 48 48 48 48 48 48 48 72 72 72
Running Time When Full Load (hours) 4.32 5.4 4.8 4.3 4 4 3.5 3.6 3.3 3 3.6 3.2 2.9
Running Distance for One Charge (km) 6.5 8.1 7.2 5.1 4.8 4.8 4.2 4.3 4 3.6 4.3 3.8 3.2
Max Wheel Load (KN) 14.4 25.8 42.6 64.5 77.7 94.5 110.4 142.8 174 221.4 278.4 343.8 265.2
Recommended Rail Model P15 P18 P18 P24 P24 P38 P38 P43 P43 P50 P50 QU100 QU100

Battery-Powered Trackless Transfer Cart with 1-300ton Load Capacity, Anti-Explosion, and Heat-Resistant Features

Battery-Powered Trackless Transfer Cart with 1-300ton Load Capacity, Anti-Explosion, and Heat-Resistant Features

Product Advantages
  • Low noise - Causes low noise level
  • Maximum safety - Offers guarantee of maximum safety for operators and for the material handled
  • Easy for operation - These vehicles are easy to drive, so as soon as you get it you will be able to use it to transport your loads
  • Easy to implement into manufacturing process - Operates on standard floors; Do not require complex or permanent installation
  • Suitable for All Kinds of Weight - The steering battery powered trolley is superb for handling both small and extremely huge loads for its modular fabrication and its high payloads: up to 300 ton for each trolley

Battery-Powered Trackless Transfer Cart with 1-300ton Load Capacity, Anti-Explosion, and Heat-Resistant Features

Battery-Powered Trackless Transfer Cart with 1-300ton Load Capacity, Anti-Explosion, and Heat-Resistant Features

Frequently Asked Questions
What Are The Advantages of Using a Transfer Cart?
For smaller loads, manual carts can be dedicated to specific work place activities such as shuttling materials. This often makes the carts more available for use. Transfer carts are more accommodating for moving long loads through restrictive passage ways or doorways. For heavier loads transfer carts are an excellent affordable choice for their ability to handle heavy loads. Transfer carts are compact in design and work well in areas with limited floor area. Another advantage over lift trucks is how the cart deck can be customized to suit specific loads.
What Product Handling Applications Use Transfer Carts?
  • Coils (V-Groove deck)
  • Tanks (size/stability for uniformly distributed loads)
  • Assemblies (fixture cradle) for a complete build or to send a partially completed product to the next station (tractors, heavy equipment machinery)
  • Sub-Assembly shuttle from one line to another line
  • Maintenance cart for motors and pumps
  • Equipment support (stand-off deck) for navigating loads to locations with a plant facility
  • Material shuttle for steel tubing (flat decking with guard rails)
  • Elevating platform for assembly process (integrated screw-jack table)
  • Sand casting (flat decking)
How can Transfer Carts be customized?
Please tell us:
  • What load or product will be transferred onto the cart?
  • What is the weight of the heaviest lift or load?
  • What are the dimensions? (Length; Width; Height)
  • What is the trip time and frequency? (# of Trips per, Shifts per day:)
  • What is the travel area you need to cover? (Rail/cement floor, Indoor/Outdoor, straight line travel, etc)
  • What is the distance to travel?
  • Other relevant information or using condition

Battery-Powered Trackless Transfer Cart with 1-300ton Load Capacity, Anti-Explosion, and Heat-Resistant Features

Battery-Powered Trackless Transfer Cart with 1-300ton Load Capacity, Anti-Explosion, and Heat-Resistant Features

Packaging & Shipping
For length less than 6m and width less than 2.2m, it will be transported by 20ft container. If the length is longer than 5.9m and less than 12m, it will be transported by 40ft container. If the quantity is 2 sets or 3 sets, they can be transported by full container. If the quantity is 1 set, it can be transported by LCL Container.
If the length is less than 12m and the width is beyond 2.2m, it needs to be transported by flat rack (20 or 40 ft). If the equipment is beyond above dimensions, quantity need to consider bulk cargo.

Battery-Powered Trackless Transfer Cart with 1-300ton Load Capacity, Anti-Explosion, and Heat-Resistant Features

Battery-Powered Trackless Transfer Cart with 1-300ton Load Capacity, Anti-Explosion, and Heat-Resistant Features

Battery-Powered Trackless Transfer Cart with 1-300ton Load Capacity, Anti-Explosion, and Heat-Resistant Features

Certifications
Certification details available upon request
