Steel Coil Motorized Transfer Trolley Steerable 30 Tons
Steel Coil Motorized Transfer Trolley Steerable 30 Tons
Steel Coil Motorized Transfer Trolley Steerable 30 Tons
Steel Coil Motorized Transfer Trolley Steerable 30 Tons
Steel Coil Motorized Transfer Trolley Steerable 30 Tons
Steel Coil Motorized Transfer Trolley Steerable 30 Tons
Steel Coil Motorized Transfer Trolley Steerable 30 Tons
Steel Coil Motorized Transfer Trolley Steerable 30 Tons
Specifications
Brand Name :
Remarkable
Model Number :
RWP-30T
Certification :
CE, ISO9001
Place of Origin :
China
MOQ :
1 set
Price :
Negotiable
Payment Terms :
T/T, L/C, D/A, D/P, Western Union, MoneyGram
Supply Ability :
300 sets per year
Delivery Time :
30-45 days
Packaging Details :
The whole cart will be packed by the tarp, the parts will be packed by polywood case.
Application :
Industry metallurgy, Material handling/steel coil/industrial
Load capacity :
30 Tons
Running speed :
0-20m/min
Size :
Customized Size
Power source :
battery
Safety features :
Warning alarm and End stop, end stop, Warning alarm
Control model :
wireless remote control
Safety facilities :
warning light, E-stop
Steer mode :
Hydraulic steering
Description

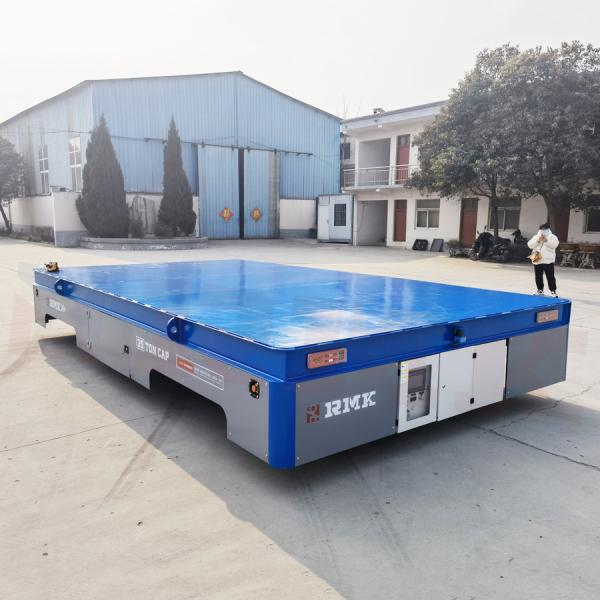

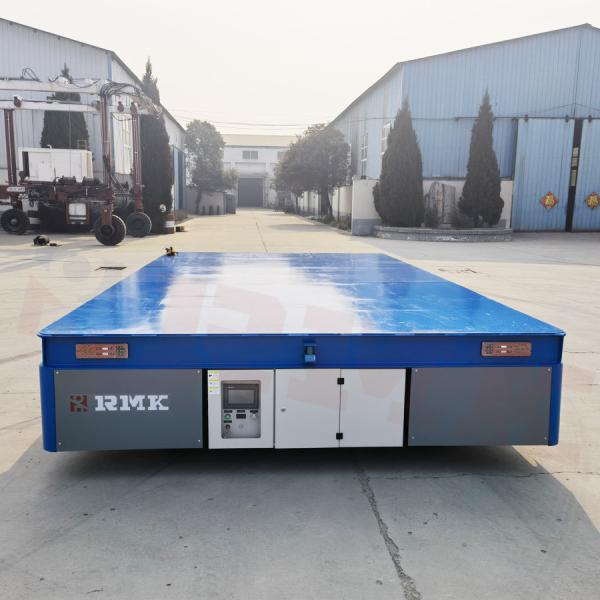

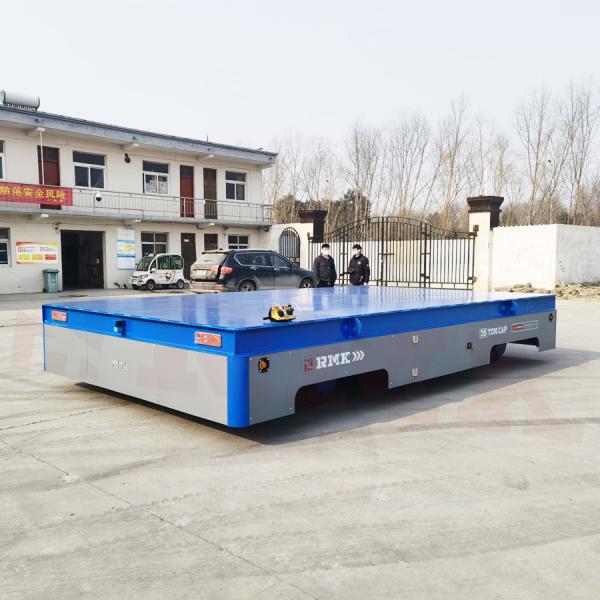

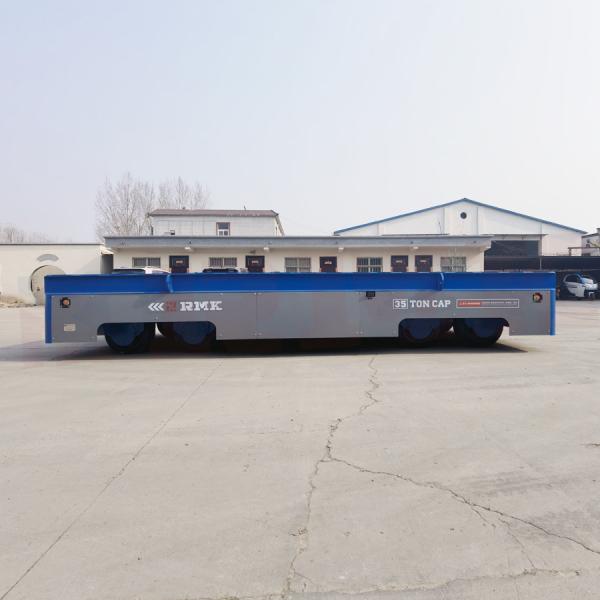

Steerable 30 Tons Steel Coil Using Motorized Transfer Trolley

Henan Remarkable 30 Tons Steel Coil Using Motorized Transfer Trolley Is A Wheeled Handling Equipment That Can Be Steered At Will By Manual Control. The Power Supply Method Is Battery Power Supply, And The Driving Wheel And Bearing Wheel Can Be Made Of High-Strength Polyurethane Rubber Solid Tires Or Pneumatic Tires. Restricted By Space And Ground, The Walking Direction And Route Can Be Changed At Any Time, Which Is Very Suitable For Occasions Where The Running Route Is Not Fixed.

Product Range:

Our Company Is A Professional Manufacturer Of Motorized Transfer Trolley In China. Our Mtotorized Transfer Cars Run On The Rail. They Can Transport The Heavy Cargo Or Heavy Equipment With 1-100 Tons. They Are Suitable For The Transfer Between The Workshops Or Warehouses In The Factory.

30 Tons Steel Coil Using Motorized Transfer Trolley Is Designed For Transporting Heavy Duty Cargoes Or Equipment From One Place To Another Place. It Can Be Used Indoor Or Outdoor. The Fields Include Metallurgy, Foundry, New Factory Construction And Shipbuilding And So On. With Different Styles And Standard Capacities Up To 100 Tons, We Have The Solution You Need And Each Style Can Be Designed For Your Specific Application.

Steel Coil Motorized Transfer Trolley Steerable 30 Tons

Steel Coil Motorized Transfer Trolley Steerable 30 Tons

Technical parameters for trackless electric transfer carts
rated load(t) 5 10 15 20 30 40 50
impacted rated load(t) 7.5 15 22.5 30 45 60 75
structure of frame steel plates welded, beam structure
max. wheel load(t) 2.8 4.3 4.8 5.6 7.7 10 12
ground requirement cement floor steel plate ground
table size(mm) 3000×2000 3600×2000 4000×2200 4500×2200 5000×2200 5500×2300 6000×2300
height of the whole cart(mm) 450 530 600 600 650 700 700
ground clearance(mm) 50
wheels base(mm) 1500 1700 1800
axles distance(mm) 2500 3100 3400 3900 4300 4800 5200
turning radius(mm) 2501 3101 3401 3901 4301 4801 5201
turning type turning while driving with no stop
control method for turning control button
turning structure mechanical
motor power(Kw) 3.5 5 6 7 10 12 15
wheel diameter(mm) 300 x 4 350 x 4 400 x 4 400 x 6 500 x 6
wheel material ZG55+hydropur ture
running speed(m/min) 0-20
brake principle electric magnetic brake
operation method with wire or no wire
battery maintenance free of maintenance
charger's installation installed on cart split-type
radar control 3-0.3m, automatic stop for obstacles
warning equipment sound and light
other functions turning light, night light and power display

Steel Coil Motorized Transfer Trolley Steerable 30 Tons

Steel Coil Motorized Transfer Trolley Steerable 30 Tons

Steel Coil Motorized Transfer Trolley Steerable 30 Tons

Steel Coil Motorized Transfer Trolley Steerable 30 Tons

Steel Coil Motorized Transfer Trolley Steerable 30 Tons
