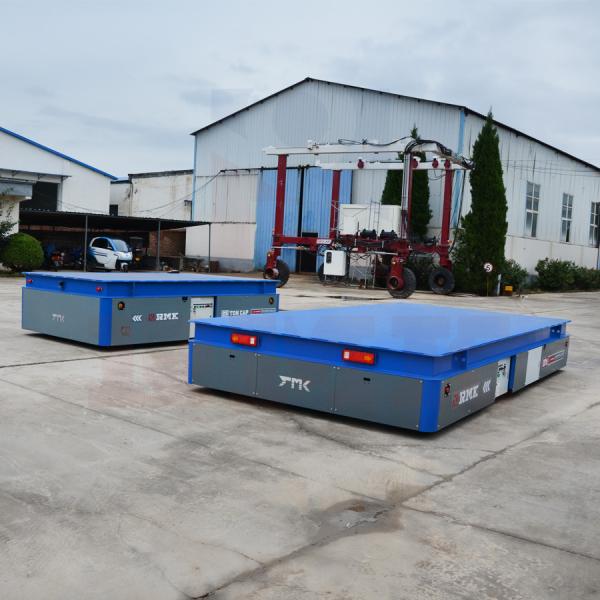

Electric 20 Tons Heavy Duty Transfer Cart For Granite Material Transferring
Electric 20 Tons Heavy Duty Transfer Cart For Granite Material Transferring
Electric 20 Tons Heavy Duty Transfer Cart For Granite Material Transferring
Electric 20 Tons Heavy Duty Transfer Cart For Granite Material Transferring
Electric 20 Tons Heavy Duty Transfer Cart For Granite Material Transferring
Electric 20 Tons Heavy Duty Transfer Cart For Granite Material Transferring
Electric 20 Tons Heavy Duty Transfer Cart For Granite Material Transferring
Electric 20 Tons Heavy Duty Transfer Cart For Granite Material Transferring
Electric 20 Tons Heavy Duty Transfer Cart For Granite Material Transferring
Electric 20 Tons Heavy Duty Transfer Cart For Granite Material Transferring
Electric 20 Tons Heavy Duty Transfer Cart For Granite Material Transferring
Electric 20 Tons Heavy Duty Transfer Cart For Granite Material Transferring
Specifications
Brand Name :
Remarkable
Model Number :
RWP-20T
Certification :
CE, ISO9001
Place of Origin :
China
MOQ :
1 set
Price :
Negotiable
Payment Terms :
T/T, D/A, D/P, L/C, Western Union, MoneyGram
Supply Ability :
300 sets per year
Delivery Time :
30-45 days
Packaging Details :
The whole cart will be packed by the tarp, the parts will be packed by polywood case.
After-sales service provided :
commissioning and training
Color :
Customized
Application :
Industry metallurgy, Material handling/steel coil/industrial
Capacity :
20 tons
Power supply :
Battery
Load capacity :
customized
Running speed :
0-20m/min
Power source :
battery
Usage :
material transferring
Safety features :
Warning alarm and End stop, end stop, Warning alarm
Control model :
wireless remote control and hand pendant
Description


Electric 20 Tons Heavy Duty Transfer Cart For Granite Material Transferring


Remarkable Trackless Transport Vehicle Weighs From 1 Ton To 300 Tons. Heavy Trackless Transfer Trolley Is Convenient For Manufacturing Large Mechanical Equipment And Transporting Heavy Materials Such As Concrete And Mold. It Is Suitable For Large Production Workshops, Sites And Outdoor Sites. It Does Not Need To Lay Track. It Is More Convenient And Flexible To Use, Reduces Production Costs And Improves Work Efficiency.

20 Tons Battery Steerable Transfer Trolley Is Suitable For Material Handling And Transportation In Various Industries. The Light-Weight Trackless Vehicle Is Easier To Realize High Intelligence And Can Customize The Steering Wheel System, Lifting System, Positioning System And Wireless Communication System Intelligent AGV, Such As Unified, Is Favored By Many Production Enterprises.

Electric 20 Tons Heavy Duty Transfer Cart For Granite Material Transferring

Technical parameters for trackless electric transfer carts
rated load(t) 5 10 15 20 30 40 50
impacted rated load(t) 7.5 15 22.5 30 45 60 75
structure of frame steel plates welded, beam structure
max. wheel load(t) 2.8 4.3 4.8 5.6 7.7 10 12
ground requirement cement floor steel plate ground
table size(mm) 3000×2000 3600×2000 4000×2200 4500×2200 5000×2200 5500×2300 6000×2300
height of the whole cart(mm) 450 530 600 600 650 700 700
ground clearance(mm) 50
wheels base(mm) 1500 1700 1800
axles distance(mm) 2500 3100 3400 3900 4300 4800 5200
turning radius(mm) 2501 3101 3401 3901 4301 4801 5201
turning type turning while driving with no stop
control method for turning control button
turning structure mechanical
motor power(Kw) 3.5 5 6 7 10 12 15
wheel diameter(mm) 300 x 4 350 x 4 400 x 4 400 x 6 500 x 6
wheel material ZG55+hydropur ture
running speed(m/min) 0-20
brake principle electric magnetic brake
operation method with wire or no wire
battery maintenance free of maintenance
charger's installation installed on cart split-type
radar control 3-0.3m, automatic stop for obstacles
warning equipment sound and light
other functions turning light, night light and power display

This Kind Of Electric Handling Bogie Usually Be Used As One Automated Transport Vehicle For Factory Transportation To Carry Various Heavy Stuff And Workpiece. As Customers' Working Environment These Transfer Carts Equipment Can Be Used In High-Temperature, Anti-Explosion Or Other Sever Condition With Strong Bearing Capacity. These Material Handling Equipment Are More Suitable For That High Using Frequency And Long Running Distance. Normally, The Hydraulic Lifting Device And PLC Control System Could Be Added On The Motorized Handling Transfer Carts To Meet Special Using Condition.
Electric 20 Tons Heavy Duty Transfer Cart For Granite Material Transferring
Electric 20 Tons Heavy Duty Transfer Cart For Granite Material Transferring

Electric 20 Tons Heavy Duty Transfer Cart For Granite Material Transferring

Electric 20 Tons Heavy Duty Transfer Cart For Granite Material Transferring

Electric 20 Tons Heavy Duty Transfer Cart For Granite Material Transferring

Electric 20 Tons Heavy Duty Transfer Cart For Granite Material Transferring
