Specifications
Brand Name :
Remarkable
Model Number :
RWP-20T
Certification :
CE, ISO9001
Place of Origin :
China
MOQ :
1 set
Price :
Negotiable
Payment Terms :
T/T, D/A, D/P, L/C, Western Union, MoneyGram
Supply Ability :
300 sets per year
Delivery Time :
30-45 days
Packaging Details :
The whole cart will be packed by the tarp, the parts will be packed by polywood case.
After-sales service provided :
commissioning and training
Color :
Customized
Application :
Industry metallurgy, Material handling/steel coil/industrial
Capacity :
20 tons
Power supply :
Battery
Load capacity :
customized
Running speed :
0-20m/min
Power source :
battery
Usage :
material transferring
Safety features :
Warning alarm and End stop, end stop, Warning alarm
Control model :
wireless remote control and hand pendant
Description

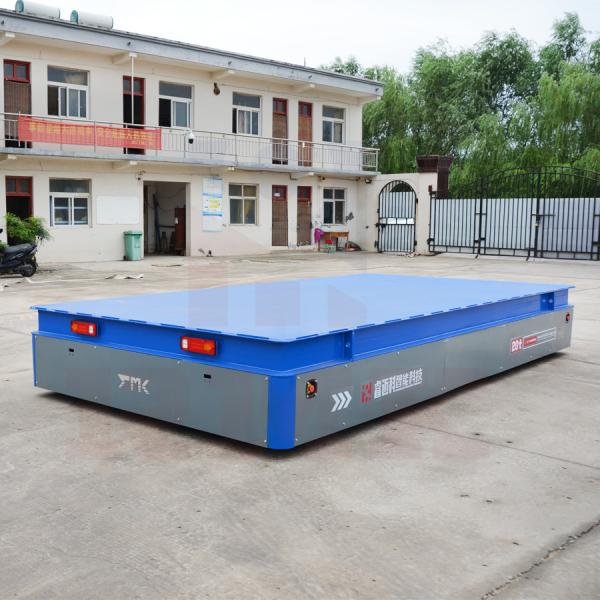

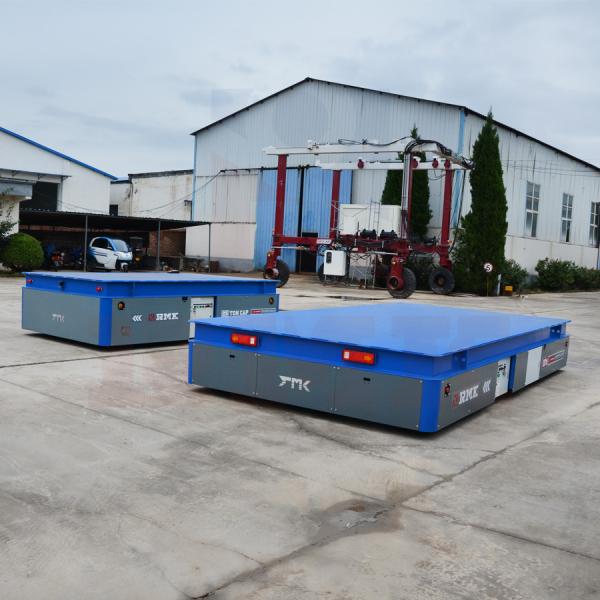

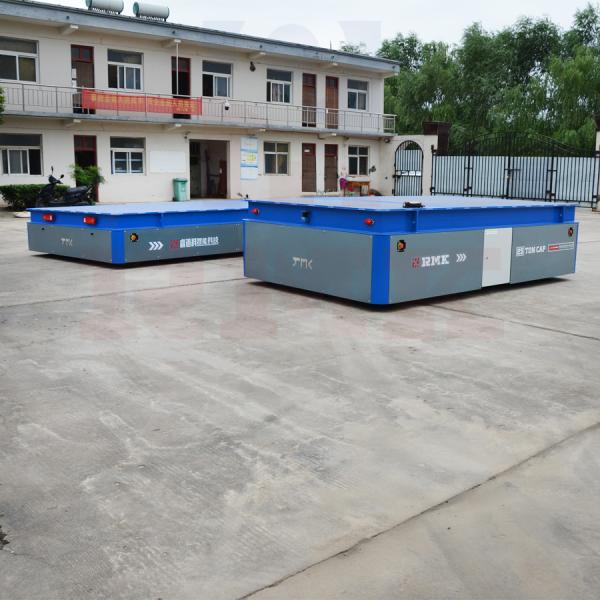

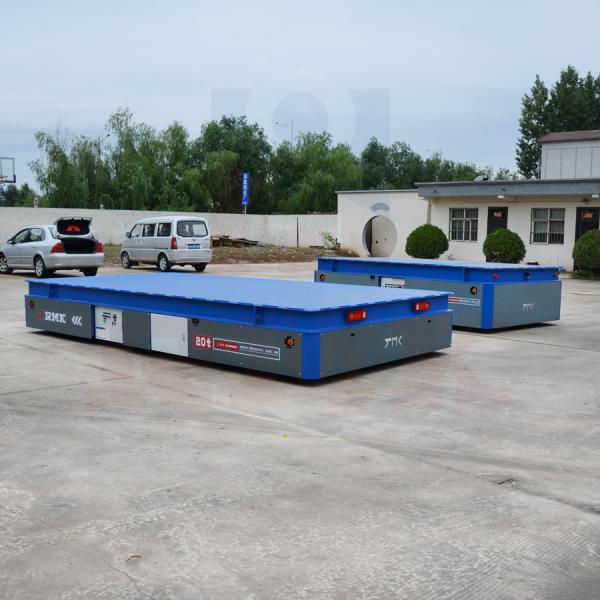

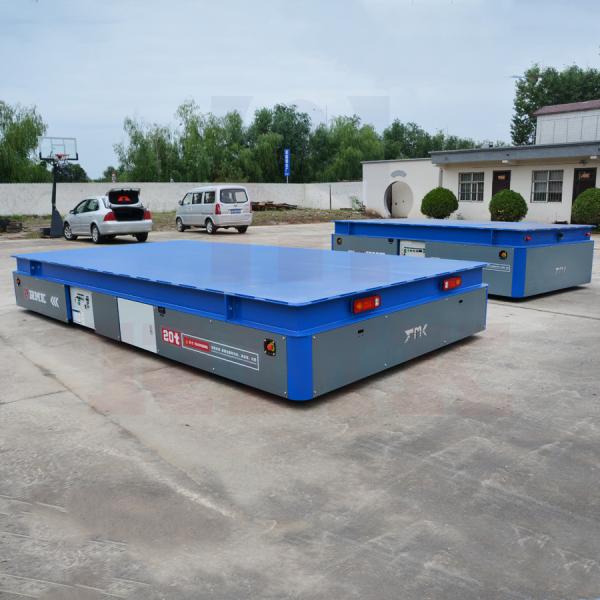

Steel Billet Heavy Load Transfer Cart

Remarkable Trackless Transport Vehicle Weighs From 1 Ton To 300 Tons. Heavy Trackless Transfer Trolley Is Convenient For Manufacturing Large Mechanical Equipment And Transporting Heavy Materials Such As Concrete And Mold. It Is Suitable For Large Production Workshops, Sites And Outdoor Sites. It Does Not Need To Lay Track. It Is More Convenient And Flexible To Use, Reduces Production Costs And Improves Work Efficiency.

20 Tons Battery Steerable Transfer Trolley Is Suitable For Material Handling And Transportation In Various Industries. The Light-Weight Trackless Vehicle Is Easier To Realize High Intelligence And Can Customize The Steering Wheel System, Lifting System, Positioning System And Wireless Communication System Intelligent AGV, Such As Unified, Is Favored By Many Production Enterprises.

Steel Billet Heavy Load Transfer Cart

Technical parameters for trackless electric transfer carts
rated load(t)5101520304050
impacted rated load(t)7.51522.530456075
structure of framesteel plates welded, beam structure
max. wheel load(t)2.84.34.85.67.71012
ground requirementcement floorsteel plate ground
table size(mm)3000×20003600×20004000×22004500×22005000×22005500×23006000×2300
height of the whole cart(mm)450530600600650700700
ground clearance(mm)50
wheels base(mm)150017001800
axles distance(mm)2500310034003900430048005200
turning radius(mm)2501310134013901430148015201
turning typeturning while driving with no stop
control method for turningcontrol button
turning structuremechanical
motor power(Kw)3.5567101215
wheel diameter(mm)300 x 4350 x 4400 x 4400 x 6500 x 6
wheel materialZG55+hydropur ture
running speed(m/min)0-20
brake principleelectric magnetic brake
operation methodwith wire or no wire
battery maintenancefree of maintenance
charger's installationinstalled on cartsplit-type
radar control3-0.3m, automatic stop for obstacles
warning equipmentsound and light
other functionsturning light, night light and power display


Steel Billet Heavy Load Transfer Cart
Steel Billet Heavy Load Transfer Cart

Steel Billet Heavy Load Transfer Cart

Steel Billet Heavy Load Transfer Cart

Steel Billet Heavy Load Transfer Cart

Steel Billet Heavy Load Transfer Cart
