ISO 30 Tons Refrigerator Box Truck 6X2 For Frozen Food Transport
ISO 30 Tons Refrigerator Box Truck 6X2 For Frozen Food Transport
ISO 30 Tons Refrigerator Box Truck 6X2 For Frozen Food Transport
ISO 30 Tons Refrigerator Box Truck 6X2 For Frozen Food Transport
ISO 30 Tons Refrigerator Box Truck 6X2 For Frozen Food Transport
ISO 30 Tons Refrigerator Box Truck 6X2 For Frozen Food Transport
ISO 30 Tons Refrigerator Box Truck 6X2 For Frozen Food Transport
ISO 30 Tons Refrigerator Box Truck 6X2 For Frozen Food Transport
Specifications
Brand Name :
SINOTRUK HOWO
Model Number :
ZZ1257M5847C
Certification :
ISO/CCC/BV
Place of Origin :
China
MOQ :
1set
Price :
USD20000-50000/set
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
500sets/month
Delivery Time :
20days after receiving deposite
Packaging Details :
packaging suitable for sea transport
Product Name :
Refrigerator Truck
Application :
Tansport frozen or fresh goods
Drive :
6x2
Refrigerating capacity :
30ton
Min. temperature(°C) :
-25
Color :
optional
Box material :
FRP+PU Foam+FRP
Description

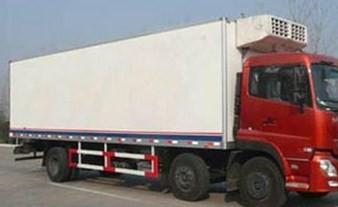

ISO 30 tons Howo Refrigerated FRP sandwich insulation box truck 6X2 for frozen food transport

Specifications:

Truck Drive mode 6*2
Chassis ZZ1257M5847C
Engine Model WD615.87
Type 4-stroke direct injection , 6-cylinder in-line with water cooling, turbo-charging
and inter-cooling
Horsepower(ps) 290
Type of fuel Diesel
Emission standard Euro II
Wheel base (mm) 4600+1350
Front/Rear tread(mm) 2022/1830
App./Dep. angel (°) 12/16
Transmission HW13710CL
Driving type RHD
Axles VGD060QB
Steering type ZF

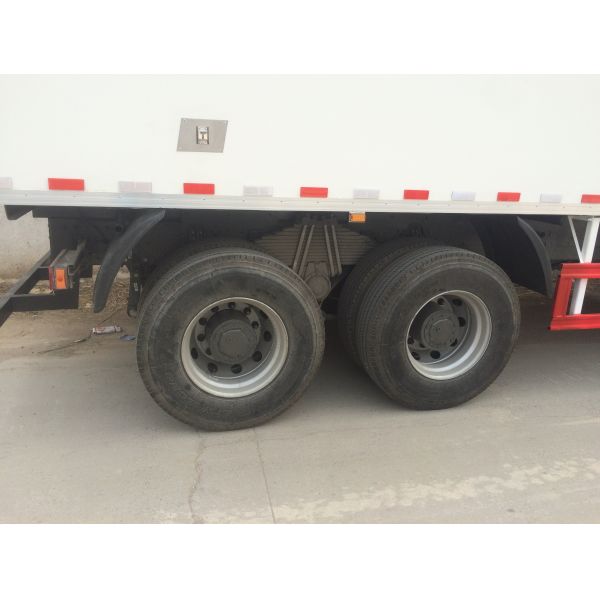

Tire 295/80R22.5
Performance Max. speed(Km/h) 102
Mass Payload (Kg) 30000
Curb weight(Kg) 11000
G.V.W (Kg) 40000
Special functions Specifications Overall dimension of body
(mm)		 8100x 2500 x 2850
Thickness of body(mm) 75
Refrigerating capacity(ton) 25
Refrigerant 404A
Min. temperature(°C) -25
Inside and outside of van's
material		 FRP(Fiber Reinforced Plastics)
Middle of van's material Polyurethane
Insulation layer Under 120kPa high pressure,overall foam
Rear doorpost stainless steel
ventilation opening yes

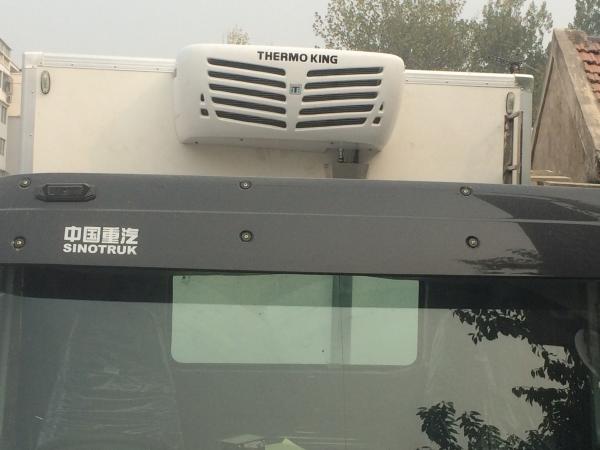

Refrigerator USA original Thermo King
independent refrigerator






Description:

1. Cargo body adopt with all-plastic structure and totallyenclosed composite material plate composite
structure, outside of the cargo adopted of reinforced plastic plate, inside of the cargo adopt of reinforced
plastic plate, insulating layer is adopt with polyurethane foam insulation materials, the box thickness is
5cm, and bottom of the cargo adopt of 3mm checkered plate. Cargo equipped with stainless steel latch
fitting/stainless steel door frame;
2. Cooling unit can be chosen from American Carrier, Thermoking or Chinese brand;

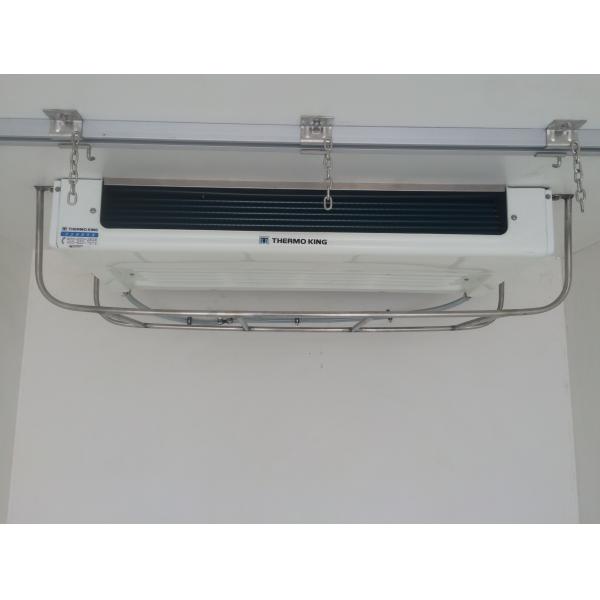

3. Equipped with condenser, evaporator, Cab with adjustable temperature display;
4. Optional equipment: Emergency power

ISO 30 Tons Refrigerator Box Truck 6X2 For Frozen Food TransportISO 30 Tons Refrigerator Box Truck 6X2 For Frozen Food Transport
Applications:

Refrigerator truck is closed van truck, which is used to transport frozen or fresh goods, it fitted with the
refrigeration unit device and polyurethane thermal insulation van and it is refrigeration special use
transport truck, usually use for transporting frozen foods (freezer truck), dairy (milk truck), vegetables
and fruits (fresh goods transport vehicle), vaccine and drug (vaccine vehicles) etc…

Competitive Advantage:

1. Factory Supply:
a. one of the biggest special using truck manufacturers in China,
b. more than 300 kinds of special truck for your needing,
2. OEM Ability:
can produce according to your demand,the size,the color and the logo is optional for you.
3. Good Quality:
a. has solid technology,advanced equipment: reliant quality and flexible modes of operation also
have strict quality control system
b. passed the ISO9001 and the 3C (China Compulsory Certification)
c. our brand is China famous brand with good reputation in the market.
4. Good Service:
24-hour hot line and email
5. Fast Delivery:
10-15 days after payment, quick delivery
