Sinotruk Howo 20 Ton Dump Tipper Truck , 6x4 Heavy Load Truck With Cabin
Sinotruk Howo 20 Ton Dump Tipper Truck , 6x4 Heavy Load Truck With Cabin
Sinotruk Howo 20 Ton Dump Tipper Truck , 6x4 Heavy Load Truck With Cabin
Sinotruk Howo 20 Ton Dump Tipper Truck , 6x4 Heavy Load Truck With Cabin
Specifications
Brand Name :
Dump truck
Model Number :
ZZ3257N3447C1
Certification :
ISO/CCC/SGS
Place of Origin :
China
MOQ :
1 units
Price :
$ 38500-42000
Payment Terms :
T/T or L/C
Supply Ability :
3000 units per month
Delivery Time :
20 days
Packaging Details :
Nude
Product Name :
Tipper truck
Model :
ZZ3257N3447C1
Drive Type :
LHD 6X4
Emission Standard :
Euro 2
Engine :
336HP
Cargo Body(CBM) :
18.63
Loading Capacity :
30 tons
Cabin :
HW76 Cab
Application :
Transportation
Description

Sinotruk howo 20 ton tipper truck , 6X4 dump truck with green color cabin

Specifications:

Truck ModelZZ3257N3447C1 20tons howo truck
Driving TypeLHD or RHD (optional) HOWO Dump Truck
Truck BrandHOWO Dump Truck
Dimension(Lx W xH)(unloaded)(mm)7835*2496*3170
Cargo body size (L*W*H, mm) (mm)5400x2300x1500, bottom:8mm, side:6mm 18.63m3
Lift type of CarriageMiddle Lift 0tons howo truck
Approaching angle/Departure angle19/30
Overhang(front/rear) (mm)1500/1560
Wheel base (mm)3425+1350
Max speed(km/h)75
Curb weight(kg)12220
Fuel tanker capacity(L)300
Fuel consumption(L/km)20-40 L/100 km
ClutchSingle-plate dry clutch430mm

Engine Model
(Steyr technology, made in China)

Fuel typeDiesel engine 20 ton truck dump truck
Horse Power, max(kw/rpm)336HP,247/2200 20 ton truck dump truck
EmissionEURO II
ModelWD615.69, water-cooled,four strokes,6 cylinders in line with water cooling,turbocharged and intercooling, directly injection
TransmissionModelHW15710,10 forwards and 2 reverse

Brake system

Service brakeDual circuit compressed air brake
Parking brakespring energy, compressed air operating on rear wheels
Auxiliary brakeEngine exhaust brake
Steering systemModelZF8098 hydraulic steering with power assistance
Front axleHF9 , Steering with double T-cross section beam
Rear axleHC16, casting axle housing, central double reduction with differential locks between axles and wheels
ColorRed,White,etc
Tyre12.00--20 NO.10+1=11 tyres
Electrical systemBattery2X12V/165Ah
Alternator28V-1500kw
Starter7.5Kw/24V
CabHW76 cab, (one sleeper, with air-condition), all-steel forward control,55hydraulically tiltable to the front, 2- arm windscreen wiper system with three speeds, laminated windscreen with casted-in radio aerial, hydraulically damped adjustable driver seat and rigid adjustable co-driver seat, with heating and ventilating system, outer sun visor, adjustable roof flap, with stereo radio/cassette recorder, safety belts and adjustable steering wheel, air horn, with 4-point support fully floating suspension and shock absorbers


Description:
1. High backrest with air bag can give effective support for the waist. The upper part of the backrest is adjustable, which can obviously relieve the fatigue of both shoulder and neck of the driver.
2. The special door opening and closing mechanism, 90-degree maximum door opening angle,two side door handles, and two stainless steel non-slip pedals make it safer and more convenient to open the door and get on or off the vehicle.

Applications:

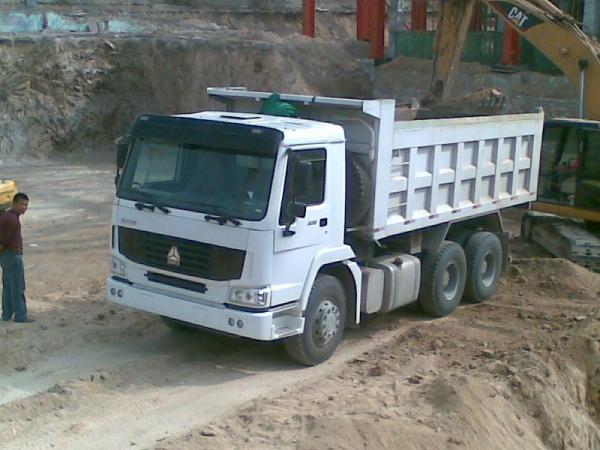

It is suitable for in normal roads and tough roads, to transport and unload transport, stone, ore, and others loose materials.

Competitive Advantage
1. Multiple aspects of this HOWO dump truck can be well controlled, such as both water and oil temperature of engine, oil consumption and degree of combustion, electrical circuit of the vehicle, load of the intake and exhaust system, pressure state of the whole vehicle, and so on. All control parameters can be displayed in different symbols on the largest liquid crystal display (dashboard) of domestic commercial vehicles.
2. Our product can automatically detect faults and automatically store important operating data.
3. The reflection mirror of the HOWO dump truck is designed with reference to the most advanced foreign vehicle models. Electrically controlled operation and electric defrosting are available to choose. The large-field-of-view rear view mirror, right-side road mirror, and the front lower mirror enable the driver to fully grasp the driving environment.Sinotruk Howo 20 Ton Dump Tipper Truck , 6x4 Heavy Load Truck With CabinSinotruk Howo 20 Ton Dump Tipper Truck , 6x4 Heavy Load Truck With Cabin
