Three Axles Flat Bed Semi Trailer For 20ft / 40ft Container 12 Twist Container Lock
Three Axles Flat Bed Semi Trailer For 20ft / 40ft Container 12 Twist Container Lock
Three Axles Flat Bed Semi Trailer For 20ft / 40ft Container 12 Twist Container Lock
Three Axles Flat Bed Semi Trailer For 20ft / 40ft Container 12 Twist Container Lock
Three Axles Flat Bed Semi Trailer For 20ft / 40ft Container 12 Twist Container Lock
Three Axles Flat Bed Semi Trailer For 20ft / 40ft Container 12 Twist Container Lock
Three Axles Flat Bed Semi Trailer For 20ft / 40ft Container 12 Twist Container Lock
Three Axles Flat Bed Semi Trailer For 20ft / 40ft Container 12 Twist Container Lock
Specifications
Brand Name :
CIMC
Model Number :
Flatbed semitrailer
Certification :
BV,SGS, CNCA, CIQ
Place of Origin :
China
MOQ :
1 Unit
Price :
$9000-$16000 per unit
Supply Ability :
1000 units / per month
Delivery Time :
20 work days
Packaging Details :
Nude, but with wax sprayed
Product name :
flatbed container semitrailer
Loading weight :
40000kg
Axle :
3 axle
Main beam :
height of beam is 500mm,upper plate is 14mm,down plate is 16mm, middle plate is 6mm
platform plate :
3mm Diamond plate
container Twist lock :
12pcs container lock
Tire :
1100R20
Traction Pin :
50mm 90mm
Tool Box :
1 standard
Landing Gear :
JOST 28 Ton
Description

Three axles flatbed semitrailer for 20ft or 40 ft container with 12 twist container lock

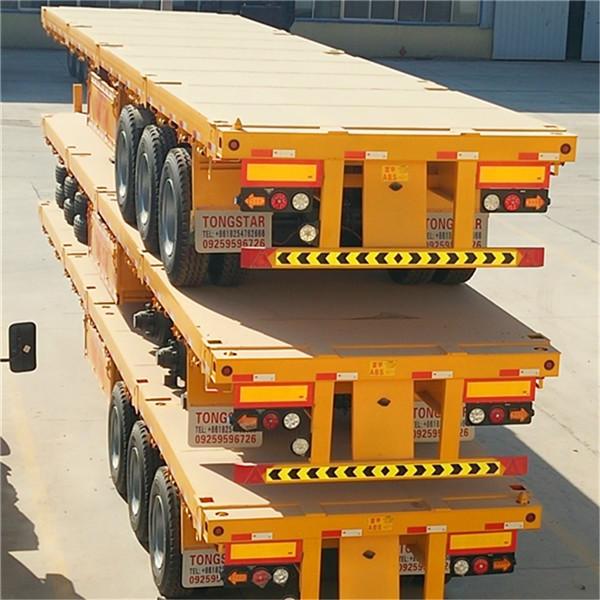

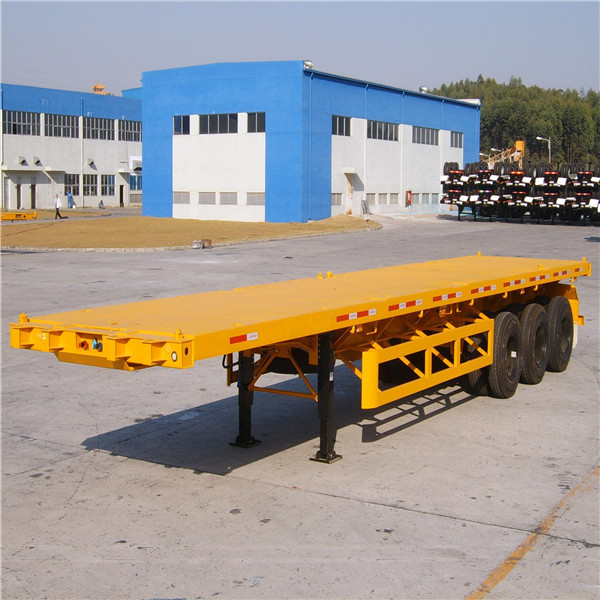

picture of product:

Three Axles Flat Bed Semi Trailer For 20ft / 40ft Container 12 Twist Container LockThree Axles Flat Bed Semi Trailer For 20ft / 40ft Container 12 Twist Container Lock

Specifications:

General
Overall Dimension 12340mm*2490mm*1600mm
Tare Weight 7630kg Pay Load 40ton
King Pin Setting 1240mm Rear Overhang 1690mm
Track 1840mm Wheel base 6800mm+1305mm+1305mm
Running Gear
Suspension Tri-axle 11-pcs leaf spring suspension with equalizer beam
Tires 11.00-20, 12.00-20, 12units
Axles 3JSAF,AQ,FUWA, BPW or STEYR axle, 13T capacity
Brakes Dual lines pneumatic brake system, WABCO Emergency Relay Valve; T30/30+T30 air chamber; parking brake
Under Frame
Main Beam I shape, Mild Alloy (16Mn) by Automatic submerged arc welding.
Cross Beam Mild Alloy Q235
King Pin Size: 50# (2'') or 90#(3.5’’); Type: welded or assembled
Landing Gear Single side operation or double side operation, Static capacity 30Ton
Twist Locks 12 lock positions with 8 twist locks
Flatbed Floor Checkered sheet, thickness 2.5mm
Toolbox 1 tool box, length 1.5m
Electrical & Paint
Lights & Reflectors Rear light, rear reflector, turn indicative light, side reflector, fog lamp, number plate light
Wiring 24V, 6 lines
Air/Elec. Connector ISO standard air connector, 24V 7 pin plug socket
Paint Sand blasting before painting, color upon request

Useful:

(1)The mainly used to transport containers with container twist lock(20ft,40ft,45ft)

(2)It is Multi-purpose semi trailer,It has the Function of flatbed semitrailer without container.

(3)It can transport bulk cargo,such as shoes and clothes

(4)It can transport crude wood,Steel Pipe,Cement pipes.

Transportation:

Three Axles Flat Bed Semi Trailer For 20ft / 40ft Container 12 Twist Container Lock
