Specifications
Brand Name :
Jackwin
Model Number :
JW-RB-011B
Certification :
CE/ROHS/FCC/SGS
Place of Origin :
Wuhan,Hubei,China
MOQ :
200 Pieces
Price :
USD25-60
Supply Ability :
10000 pcs per Month
Delivery Time :
15-20 days Working days
Packaging Details :
Nude Package
Product Name :
Crowd Control Fence
Material :
Stainless Steel
Surface Treatment :
Hot-dipped Galvanized Or PVC Paiting,powder Coating
Feature :
Easily Assembled, Eco Friendly, Waterproof
Frame Tube :
20mm,25mm,32mm, 38mm,42mm
Frame Tube Thickness :
1.2mm To 3 mm
Infill OD :
16mm To 25 mm
Infill Thickness :
1mm,1.2mm,1.5mm,2mm,2.5mm,3mm
Size :
1*1.2/ 1*1.5 / 1*1.8 / 1*2 Meters (can be customized)
Feet Shape :
Flat Feet, Bridge Feet, Cross Feet
Color :
Silver,Yellow,Orange,Black,Blue
Description

Metal Temporary Road Traffic Barricade Galvanized Flat Feet Crowd Control Fence

Traffic Barrier-P18-20.pdf

Traffic Barrier-P19-20.pdf

Model No Length Total Height Barrier Body Height Base Width Outer Pipe Inner Pipe
JW-RB-011A 1 Meter 1090mm 1000mm 400mm dia.35x1.5mm dia.16x1.2mm
JW-RB-011B 2 Meter 1090mm 1000mm 400mm dia.35x1.5mm dia.16x1.2mm
JW-RB-011C 2 Meter 1220mm 1130mm 520mm dia.35x1.5mm dia.22.5x1.2mm
JW-RB-011D 2.5 Meter 1100mm 1010mm 400mm dia.35x1.5mm dia.16x1.2mm


1. Specification of the Crowd Control Fence:
Pedestrian Barrier (also referred to as crowd control barricades, with some versions called a french barrier or bike rack in the USA), are commonly used at many public events. Crowd control barriers have been designed for use at events that need to accommodate for a larger crowd. They are designed to physically discourage transgression and encourage directional order and crowd control. Their flat feet feature (to prevent trip hazard) provides a quick and efficient solution in any situation where you need to divert patrons and the general public away from a designated area.
2. Surface Finish of the crowd control barrier :
- Electro-galvanized
- Hot-dipped galvanized
- Black + PVC coated / Powder coated
- Galvanized + PVC coated / Powder coated

3. Details of the Crowd Control Fence:

Product Name Crowd Control Fence
Material Stainless Steel
Surface Treatment Hot-dipped Galvanized Or PVC Paiting,powder Coating
Feature Easily Assembled, Eco Friendly, Waterproof
Frame Tube 20mm,25mm,32mm, 38mm
Frame Tube Thickness 1mm,1.2mm,1.5mm,2mm,2.5mm,3mm
Infill OD 20mm, 25mm
Panel Size 1*1.2/ 1*1.5 / 1*1.8 / 1*2 Meters (can be customized)
application stopping the cross, animals vehicles etc.
feature easy to handle and remove

4. Benefits of the Crowd Control Fence:

Ideal for directing pedestrian traffic.

Used extensively for special events and functions.

Acts as safety barrier for people protection.

Perfect for cordoning off restricted areas.

Openings available for ready access options.
5. Applications of the Crowd Control Fence:

1. Traffic road control, Road isolation belt, Limit vehicles

2. Concert, Outdoor activity, Sport ground

3. Highway, Public activities for crowd control

4. Temporary isolation
6. Features of the Crowd Control Fence:

1.Fully hot-dipped galvanized after welded, zinc coating is more than 70 microns.

2. More weather resistant and durable, and it can last more than 10 years.

3. The barrier are light and easy to handle, while being strong and robust at the same time.

4. The feet are removable which makes transportation and storage much easier and more efficient.

Product Pictures:

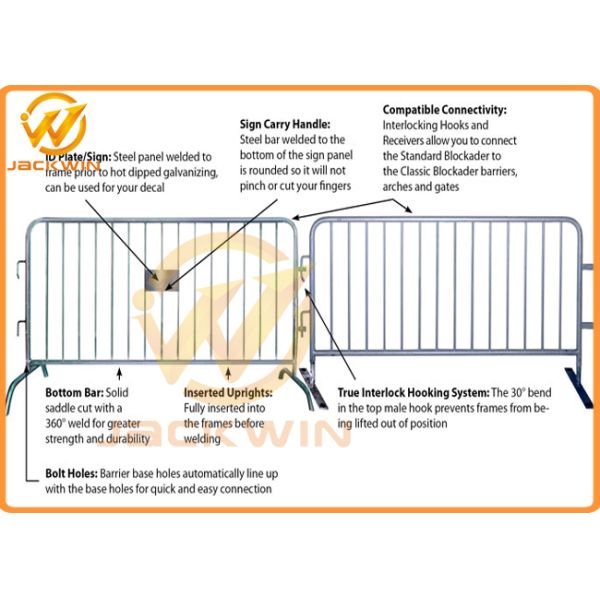

Metal Temporary Road Traffic Barricade Galvanized Flat Feet Crowd Control Safety Fence

Metal Temporary Road Traffic Barricade Galvanized Flat Feet Crowd Control Safety Fence
