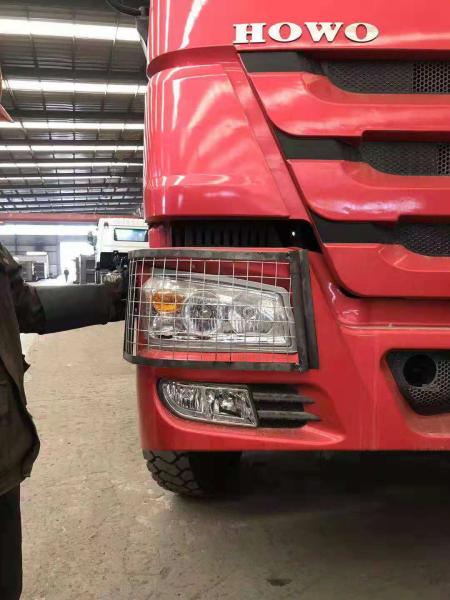

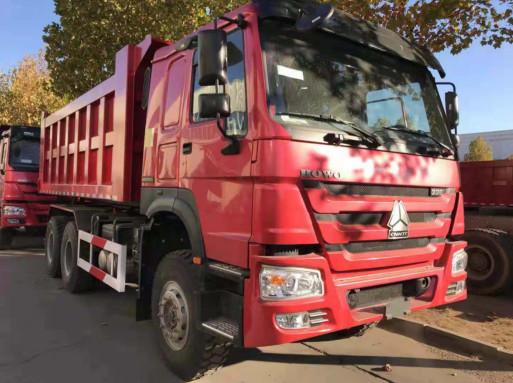

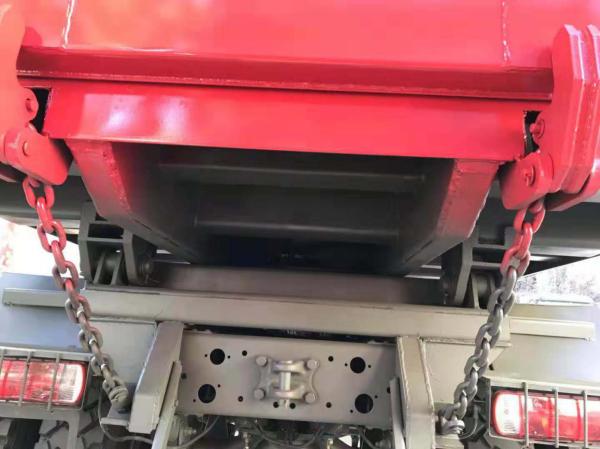

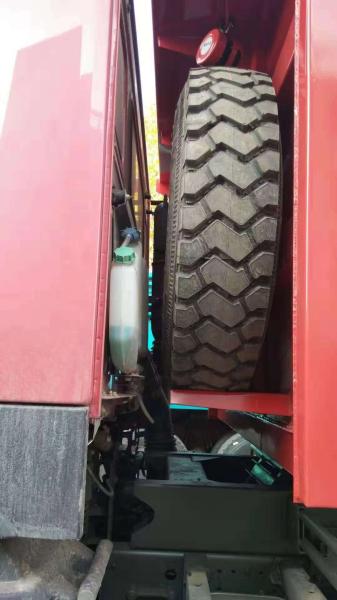

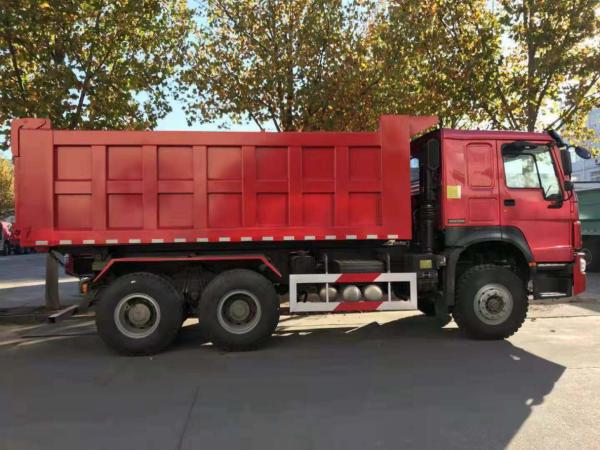

SINOTRUCK HOWO 6x4 336hp used dump truck
SINOTRUCK HOWO 6x4 336hp used dump truck
SINOTRUCK HOWO 6x4 336hp used dump truck
SINOTRUCK HOWO 6x4 336hp used dump truck
SINOTRUCK HOWO 6x4 336hp used dump truck
SINOTRUCK HOWO 6x4 336hp used dump truck
SINOTRUCK HOWO 6x4 336hp used dump truck
SINOTRUCK HOWO 6x4 336hp used dump truck
SINOTRUCK HOWO 6x4 336hp used dump truck
SINOTRUCK HOWO 6x4 336hp used dump truck
SINOTRUCK HOWO 6x4 336hp used dump truck
SINOTRUCK HOWO 6x4 336hp used dump truck
Specifications
Brand Name :
SINOTRUCK HOWO
Model Number :
ZZ3257N3447A
MOQ :
1
Price :
$16500 - $35000
Supply Ability :
50 units/month
Packaging Details :
Nude packing
Product name :
Dump truck
Brand :
SINOTRUCK HOWO
Drive mode :
6X4, 8X4
Year :
2010-2018
Emission standard :
EURO II, EURO III, EURO IV
Condition :
used, brand new stock
Color :
Red, Green
Description
VEHICLE SPECIFICATION DESCRIPTION
Type of Vehicle ZZ3257N3447A
Truck Type 6x4
Driving Position Left hand Driving
Truck weight 8680kg
G.V.W 25,000kg
Max speed(km/h) 75
Color Red
Chassis & Add Components
Frame Details High-Strength U-profile ladder frame with section of 300*90*8mm and reinforced sub frame, all cold riveted cross members.
Dimension(Lx W xH)(unloaded)(mm) 7125*2496*3600
Cargo box: 5200*2300*1400mm(bottom: 8mm, side: 6mm)
Approaching angle/Departure angle(°) 16/70
Overhang(front/rear) (mm) 1500/725
Wheel base (mm) 3425+1350
Engine
Model WD615.69
Power 336HP
Emission EURO II
Displacement(L) 9.726
Type water-cooled,four strokes,6 cylinders in line,turbocharged, directly injection
Kind of Fuel Diesel
Clutch & Gear Box System
Clutch SINOTRUKΦ430mm diaphragm spring clutch
Gear Box HW19710 10 forwards and 2 reverse
Axles
Front Axle Model HF9 axle
Rear Axle HC16 axle
Electrical System
Battery 2X12V/165Ah
Alternator 28V-1500w
Starter 7.5Kw/24V
Brake System
Service brake Dual circuit compressed air brake
Parking brake spring energy, compressed air operating on rear wheels
Auxiliary brake Engine exhaust brake
Steering system
Model 8118
Type hydraulic steering with power assistance
Wheels & Tyres
Type 11.00R20
Brand Common Brand
Quantity 10+1 spare
Kin pin 90mm
Cabin
Type HW76 New cabin
Double sleeper, with air conditioner, all-steel forward control,55ºhydraulically tillable to the front,2- arm windscreen wiper system with three speeds, laminated windscreen with casted-in radio aerial, hydraulically damped adjustable driver’s seat and rigid adjustable co-driver’s seat, with heating and ventilating system, outer sun visor, adjustable roof flap, with stereo radio/cassette recorder, safety belts and adjustable steering wheel, air horn, with 4-point support fully floating suspension and shock absorbers
