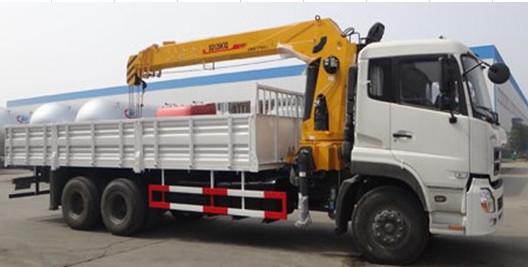

White Special Purpose Trucks DFD1250A9 Truck Mounted Crane With Cummins C245 Engine
White Special Purpose Trucks DFD1250A9 Truck Mounted Crane With Cummins C245 Engine
White Special Purpose Trucks DFD1250A9 Truck Mounted Crane With Cummins C245 Engine
White Special Purpose Trucks DFD1250A9 Truck Mounted Crane With Cummins C245 Engine
Specifications
Brand Name :
DongFeng
Model Number :
DFD1250A9
Certification :
ISO GCC
Place of Origin :
Hubei
MOQ :
1 unit
Price :
USD
Payment Terms :
L/C, T/T
Delivery Time :
30-35 working days
Packaging Details :
nude
color :
white
model :
4X2
engine :
Cummins engine
gearbox :
fast
axle :
DANA
crane :
XCMG
displacement :
8300
type of fuel :
Diesel
GVW :
25000
Description
Dongfeng Vehicle-mounted Crane
Specification
Truck Drive mode 6×4
Chassis DFD1250A9
Engine Model Cummins C245 20
Type 6-cylinder in line, turbocharging and inter cooling, mechanical injection pump, bulit-in EGR
Max. power(Kw/rpm) 180/2200
Max. torque(N.m/rpm) 1025/1400
Bore/Stroke(mm) 114×135
Displacement(ml) 8300
Type of fuel Diesel
Compression ratio (18±0.5):1
No. of valves 2
Dimensions Overall dimension (mm) 11980×2500×3750
Wheel base (mm) 5350+1300
Front/Rear tread(mm) 1986/1860
Mass Payload (Kg) 9815
Curb weight(Kg) 14990
G.V.W (Kg) 25000
Crane Crane Weight (Kg) 3500
Max. Lifting Capacity (Kg) 10000
Max. Lifting Moment (T.M) 25
Lifting Capacity/Working Radius (Kg/m) 10000/2.5
5500/4.5
2300/9.0
1500/12.0
Max. Working Radius (m) 12
Max. Working Height (m) 13.8
