MachineU > China Products > Machinery > Engineering & Construction Machinery > Municipal Machinery > Garbage Truck

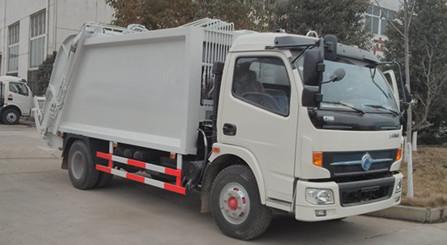

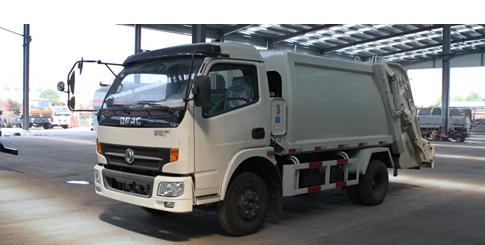

8 Cbm Garbage Compactor Truck Single Cab Rubbish Compactor Truck With Cummins Engine
8 Cbm Garbage Compactor Truck Single Cab Rubbish Compactor Truck With Cummins Engine
8 Cbm Garbage Compactor Truck Single Cab Rubbish Compactor Truck With Cummins Engine
8 Cbm Garbage Compactor Truck Single Cab Rubbish Compactor Truck With Cummins Engine
Specifications
Brand Name :
Dongfeng brand
Model Number :
DFA1063DJ10
Place of Origin :
china
MOQ :
1
Price :
USD28000-35000.00
Supply Ability :
500 Units
Delivery Time :
30 working days after received the down payment
Packaging Details :
in nude
engine :
cummins EQB140-30
displacement :
3922ml
Container Capacity(m³) :
8
Precompressor Load Time(s) :
18-22
Precompressor Lifting Time(s) :
15
Description

8 Cbm Garbage Truck With Cummins Engine , Compressed Rubbish Vehicle

Cabin Single Cab
Dimension(mm)
Outer 7350*2220*2810
Cargo Body 5000*2050*1700
Wheel Base(mm) 3800
Tread(F/R)(mm) 1750/1586
F/R suspension 1210/1960
Weight(kg)
Curb Weight(kg) 3645
Payload(Kg) 6000
G.V.W(kg) 8125
Engine
Engine type Cummins EQB140-30
Emission standard Euro III
Power 103/2500
Torque 502/1500
Bore*Stroke(mm) 107*124
Displacement(ml) 3922
Performance
Max Speed(kg/h) 105
Max Gradeability 30
Min Turning Radius(m) 7.5
Power steering Equipped
Brake air
Battery 24V
Tire 7.5R16

Heater Equipped
Air conditioner Optional/USD480.00
Specifiaciton of tanker 　
Container Capacity(m³) 8
Thickness of tanker(mm) 5
Filling Mouth Grand Clearance(mm) 860
Filling Circulation Time(s) 30
Precompressor Load Time(s) 18-22
Precompressor Lifting Time(s) 15
Max. Compression Strength(T) 16
Max.Discharge Strength(T) 18
Fill in loading Time(s)
 12
Discharge Time(s) 40
operation mode full-automatic or semi-automatic
component parts Compartments, drain tank, scraper, pushing shovel, hydraulic system, hang barrel device
