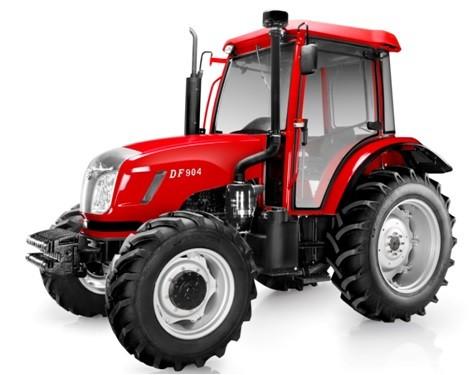

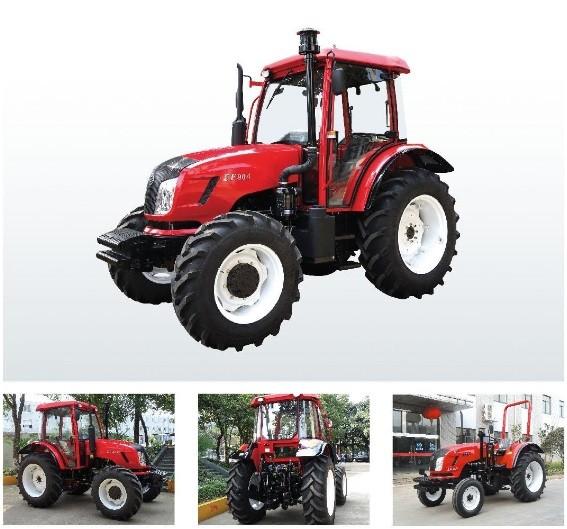

DF904 Four Wheel Tractor 4240×2050×2810mm 90HP 4WD Garden Tractors For Farm
DF904 Four Wheel Tractor 4240×2050×2810mm 90HP 4WD Garden Tractors For Farm
DF904 Four Wheel Tractor 4240×2050×2810mm 90HP 4WD Garden Tractors For Farm
DF904 Four Wheel Tractor 4240×2050×2810mm 90HP 4WD Garden Tractors For Farm
DF904 Four Wheel Tractor 4240×2050×2810mm 90HP 4WD Garden Tractors For Farm
DF904 Four Wheel Tractor 4240×2050×2810mm 90HP 4WD Garden Tractors For Farm
DF904 Four Wheel Tractor 4240×2050×2810mm 90HP 4WD Garden Tractors For Farm
DF904 Four Wheel Tractor 4240×2050×2810mm 90HP 4WD Garden Tractors For Farm
DF904 Four Wheel Tractor 4240×2050×2810mm 90HP 4WD Garden Tractors For Farm
DF904 Four Wheel Tractor 4240×2050×2810mm 90HP 4WD Garden Tractors For Farm
Specifications
Brand Name :
DONGFENG
Model Number :
DF-904
Certification :
ISO, CCC, CE, BV, SGS,
Place of Origin :
CHINA
MOQ :
1
Price :
US$16,192/unit
Payment Terms :
T/T, L/C, Western Union
Supply Ability :
1000unit per month
Delivery Time :
30 days after receipt of the deposit
Packaging Details :
320*210*250cm (3Sets) / 40HQ
Model :
DF-904
Drive Type :
4WD
Wheel Base :
2362
Construction Mass :
3575
Rated Power :
66/90(Kw/hp)
Displacement :
4.94/5.13l
Engine :
4-cylinder,Upright inline cylinder radiator cooling, 4-storke cycle, direct-injetion
name :
Dry Independent type dual Function clutch
Gearbox :
4×(2+1)×2
Overall Dimensions :
4240×2050×2810mm
Description

Specification Sheet
Tractor Parameters Model DF-904
Drive Type 4WD
Overall Dimensions L×W×H(mm) 4240×2050×2810
Wheel Track(mm) Front 1610
Rear 1620-2020(1620)
Wheel Base(mm) 2362
Ground Clearancre(mm) 379
Rated Traction 20800
Construction Mass(Kg) 3575
Min. Turning Radius(m) 4.1
Theoretical Forward 2.30,3.60,5.80,8.00,10.0,15.6,25.0,34.9
Speed(km/h) Reverse 3.10,4.80,7.70,10.80
Engine Specifications Type 4-cylinder,Upright inline cylinder radiator cooling, 4-storke cycle, direct-injetion
Rated Power(Kw/hp) 66/90.0
Rated Fuel Consumption(g/kw/h) ≤242
Rated Speed(rpm) 2300
Bore×Stroke(mm) 108×135/110×135
Total Displacement(L) 4.94/5.13
Drive System Clutch Dry Independent type dual Function clutch
Gear Box 4×(2+1)×2
Main Drive One Pair of Spiral Bevel Gear
Differential Obturation,four bevel gears
Differential Lock Mesh gear
Final Transmissions Planetary reduction gear
Travelling Mechanism Tyre front 11.2-24
rear 16.9-34
Steering Gear Hydraulic streering
Brake Oil immersed muliplate disc
Working Device Hydraulic System Lifting Capacity at 610 mm Behind Lift Point(kg) 1600
3-point Suspension Category:II
P.T.O.Shaft Rotating Speed(rpm) 540/1000
Spline size 6-φ35 Rectangular spline
