Commercial Vehicle - 340hp Prime Mover Truck Cummins Engine / Fast Gearbox
Commercial Vehicle - 340hp Prime Mover Truck Cummins Engine / Fast Gearbox
Commercial Vehicle - 340hp Prime Mover Truck Cummins Engine / Fast Gearbox
Commercial Vehicle - 340hp Prime Mover Truck Cummins Engine / Fast Gearbox
Specifications
Brand Name :
DONGFENG
Model Number :
DFD4251A
Place of Origin :
CHINA
MOQ :
1 unit
Price :
FOB Shanghai: USD39,000~49,999/unit
Supply Ability :
500 units / year
Delivery Time :
20 work days
Drive mode :
6X4
Engine :
Cummins L340 30
Engine capacity :
8900cc
Fuel type :
Diesel
Wheel base :
3400+1350mm
Gearbox :
Fast 12JS180T
Overall dimension (mm) :
7060 ×2500×3700
Curb weight :
9950kg
Trailer weight :
40,000kg
Description

DONGFENG 340HP TRACTOR HEAD TRUCK

Advantage:

1, Good appearance, confortable cabin with 3 seats and double sleeper.
2, RHD & LHD are available (We can make not only LHD but also RHD)
3, Good Performance (We adopt Cummins engine which with high durability and good performance even in rough roads)

Specification:

Drive mode 6×4
Engine Model Cummins L340 30
Type 6-cylinder in line, turbocharging and inter cooling, mechanical injection pump, built-in EGR
Max. power(Kw/rpm) 250/2200
Max. torque(N.m/rpm) 1350/1400
Cylinder bore ×Stroke(mm) 114×145
Displacement(ml) 8900
Type OF Fuel Diesel
Compression ratio (16.6±0.5):1
No. of valves 4
Cab D310-H1 height ceiling, double berth
Capacity 3 persons
Gearbox Type Fast 12JS180T
Max. torque(N.m) 1800
Gear ratio 15.53 12.08 9.39 7.33 5.73 4.46 3.48 2.71 2.10 1.64 1.28 1.00
Clutch Φ430mm pull-type diaphragm spring clutch
Frame H×W× T(mm) 300×90×(8+5)
Frame width 940 (front ), Frame width 810 ( rear )
No. of spring leaves 3/10
Tyre Size 12.00R20
Air conditioner A/C
Dimensions Overall dimension (mm) 7060 ×2500×3700
Wheel base (mm) 3400+1350
Front/Rear tread(mm) 2027/1820
App./Dep. angel (°) 18/32
Min. ground clearance(mm) 300
Performance Max. speed(Km/h) 98
Max. gradeability(%) 35
Min. turning diameter(m) 16
Fuel consumption(L/100Km) 38
Mass Curb weight(Kg) 9950
G.V.W (Kg) 25000
Trailer G.V.W(Kg) 40000

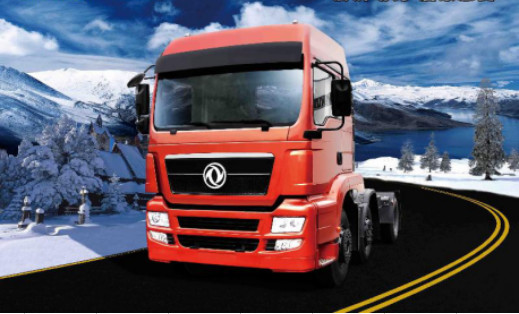

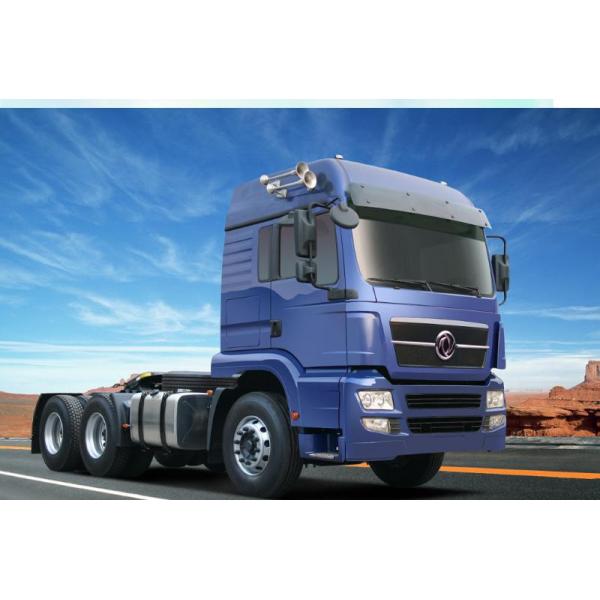

Photos:

Commercial Vehicle - 340hp Prime Mover Truck Cummins Engine / Fast GearboxCommercial Vehicle - 340hp Prime Mover Truck Cummins Engine / Fast Gearbox
