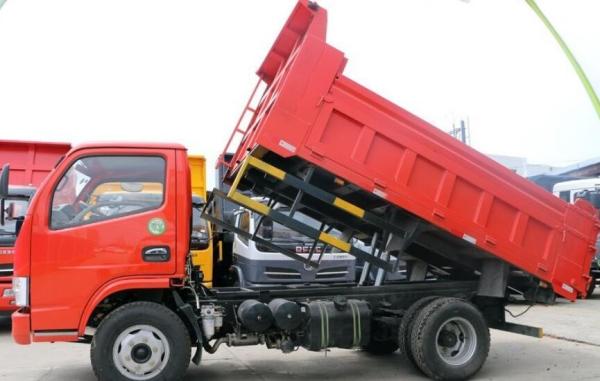

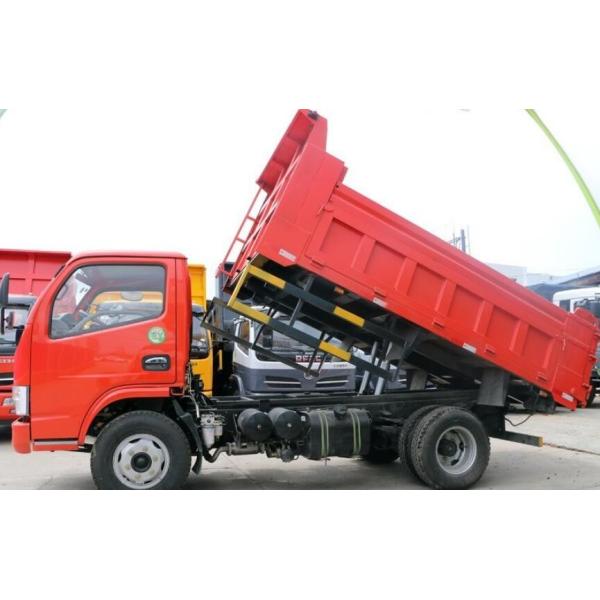

Dongfeng Light Duty Dump Truck 140hp EQ3110TL With Right Hand Drive / Left Hand Drive
Dongfeng Light Duty Dump Truck 140hp EQ3110TL With Right Hand Drive / Left Hand Drive
Dongfeng Light Duty Dump Truck 140hp EQ3110TL With Right Hand Drive / Left Hand Drive
Dongfeng Light Duty Dump Truck 140hp EQ3110TL With Right Hand Drive / Left Hand Drive
Dongfeng Light Duty Dump Truck 140hp EQ3110TL With Right Hand Drive / Left Hand Drive
Dongfeng Light Duty Dump Truck 140hp EQ3110TL With Right Hand Drive / Left Hand Drive
Specifications
Brand Name :
DF
Model Number :
EQ3110TL
Certification :
CCC/ISO
Place of Origin :
CHINA
MOQ :
1
Price :
US$11000-20000 UNIT
Delivery Time :
20 Workadays
Packaging Details :
no packaging
name :
6 wheel dump truck
horspower :
140hp
Engine :
B125-33
displacement :
3900ml
Description

Dongfeng 140hp light dump truck EQ3110TL righ hand drive/left hand drive

Model: EQ3110TL
Engine
Model B140-33
Type Diesel, Direct Injection,Turbo charged with Intercooler
Max. Engine Output (HP or KW/rpm) 103 KW(140HP)
Max. Tourque (N.m/rpm): 502 Nm @ 1400-1600 rpm
Cylinder Displacement L/cc 3900ml
Emission: Euro 3
Gear Box MT / Forward 5 & Reverse 1
Model WLY5S550
Suspension Strengthen spring
Type Spring leaf tablet: 9/11+8
Brakes Front&Rear drum,dual-circult service brakding system
Clutch
Type: Single,dry,diaphragm spring clutch⊙350
Overall Dimensions (LxWxH) mm: 6000×2310×2760
Wheel Track (front/rear) mm: 1750 /1586
Overhang (Front/Rear) mm: 1180 / 1080
Driving Type: 4×2
Wheel Base (mm): 3300
Min ground clearence (mm): 248
Vehicle Weight
Curb weight (kg): 4350
Pay Load Capacity (kg): 5600
Gross vehicle weight (kg): 9400
Tipper Body
Volume 4100×2000×600 4.92 CUM
Tipping Angle 45~56°
Cabin: 1+2 seats / 2 doors
Steering
Type: power steering gear
Wheels & Tyres
Front: Tire Number: 2, Tire Size: 7.00R16
Rear: Tire Number: 4, Tire Size: 7.00R16
Performance
Max speed (km/h): 95

Dongfeng Light Duty Dump Truck 140hp EQ3110TL With Right Hand Drive / Left Hand DriveDongfeng Light Duty Dump Truck 140hp EQ3110TL With Right Hand Drive / Left Hand Drive
