Specifications
Brand Name :
DONGFENG
Model Number :
DFL1203A
Certification :
ISO CCC SGS BV GCC
Place of Origin :
CHINA
MOQ :
1
Price :
US$40,660/Unit
Payment Terms :
T/T, L/C, Western Union
Supply Ability :
800Units per month
Delivery Time :
usualy 30 days after receipt of the deposit
Packaging Details :
Nude packing, RO-RO shipment
Model :
DFL1203A
Product name :
cargo dump truck
Drive type :
6X2 LHD/RHD
Engine :
Cummins ISDe 210 30
Horsepower :
210hp
Gearbox :
DC7J100TA
Transmission Type :
Manual
Clutch :
push-type diaphragm spring clutch
Cab :
D310-S3 single sleeper, luxurious 3 persons
Fuel Type :
Diesel
Wheelbase :
1950+5350mm
Overall dimension :
11990×2500×3200 mm
Payload :
16900KGS
Gross Vehicle Weight :
26940KGS
Description

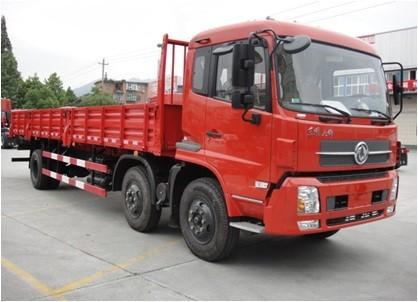

6x2 210hp Cargo Van Truck ISDe 210 30 Cummins Engine DC7J100TA Gearbox

Specification
Drive mode 6×2
Engine Model Cummins ISDe 210 30
Type 6-cylinder in line, turbocharging and inter cooling, electric control common rail diesel engine
Max. power(Kw/rpm) 155/2500
Max. torque(N.m/rpm) 800/1200-1700
Cylinder bore ×Stroke(mm) 107×124
Displacement(ml) 6700
Type of fuel Diesel
Compression ratio 17.3:1

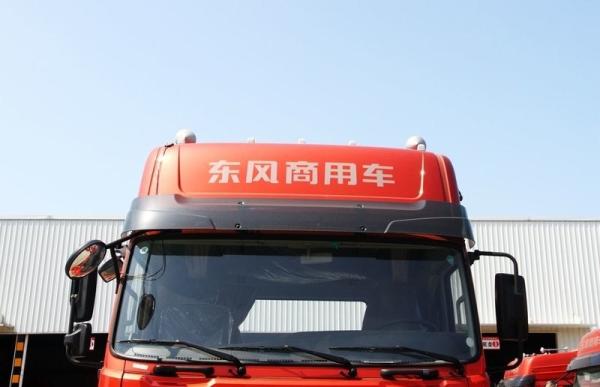

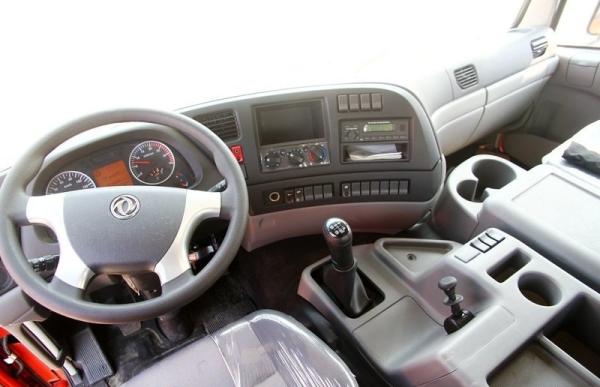

Cab D310-S3 single sleeper, luxurious
Capacity 3 persons
Gearbox Type DC7J100TA
Max. torque(N.m) 1000
Clutch Φ430mm push-type diaphragm spring clutch

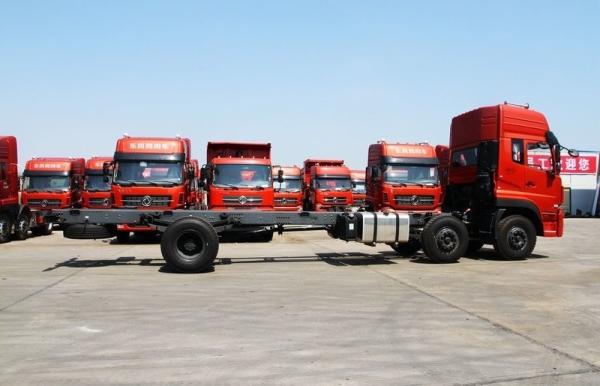

Frame H×W× T(mm) 300×90×(8+4)

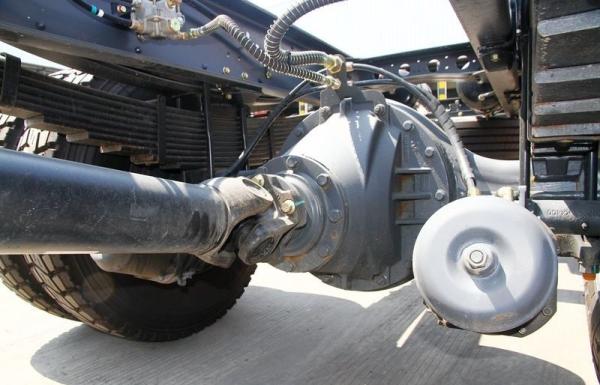

Axles Front axle(Kg) 5000×2
Rear axle(Kg) 13000

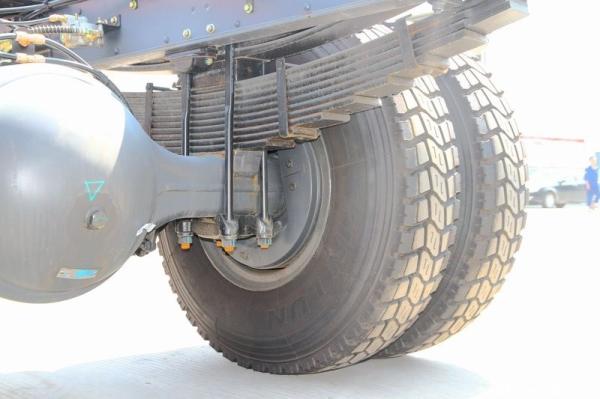

No. of spring leaves 8/8/9+9
Tyre Size 11.00R20
Air conditioner A/C
Dimensions Overall dimension(mm) 11990×2500×3200
Inner dimension(mm) 9600×2294×800
Wheel base(mm) 1950+5350
Front/Rear tread(mm) 1980/1860
App./Dep. angel (°) 30/18
Min. ground clearance(mm) 240
Performance Max. speed(Km/h) 90
Mass Payload(Kg) 16,900
Curb weight(Kg) 10,040
G.V.W(Kg) 26,940
