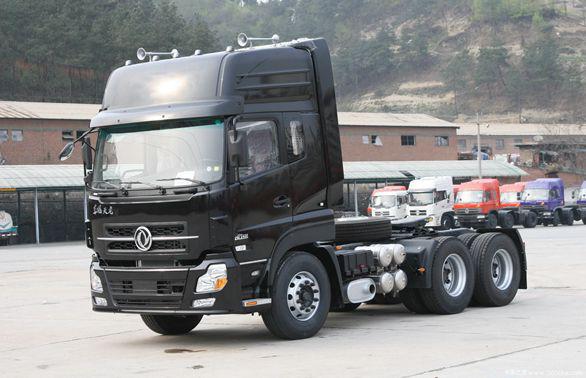

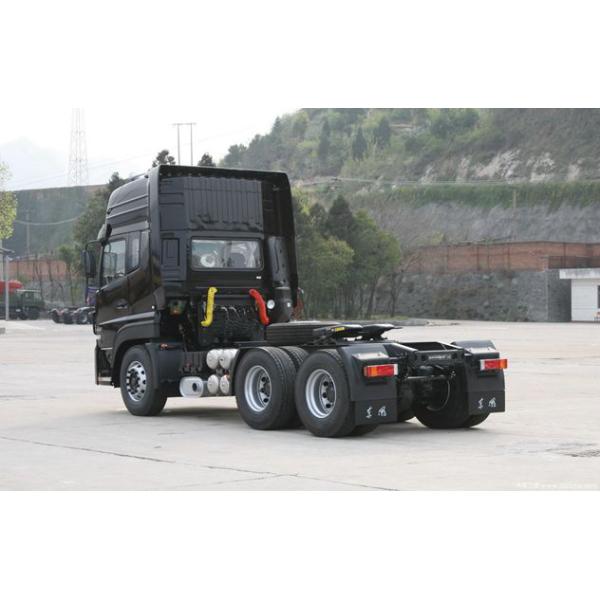

Dongfeng Tractor Trailer Truck 420 HP RHD DCI 420-30 Engine With 3 Persons Cab
Dongfeng Tractor Trailer Truck 420 HP RHD DCI 420-30 Engine With 3 Persons Cab
Specifications
Brand Name :
DONGFENG
Model Number :
DFL4251
Place of Origin :
CHINA
MOQ :
10
Price :
USD51,860.00
Payment Terms :
L/C, T/T
Supply Ability :
1000
Delivery Time :
20 DAYS
Engine :
DCI420-30
Max. power(KW/rpm) :
303/1900
Cab :
3 persons
Overall dimension (mm) :
7060 ×2500×3700
Trailer G.V.W(Kg) :
40000
G.V.W (Kg) :
25000
name :
aluminum dump trailer
Description

Drive mode 6×4
Engine Model dCi420-30
Max. power(KW/rpm) 303/1900
Max. torque(N.m/rpm) 1870/1300
Cylinder bore ×Stroke(mm) 123×156
Displacement(ml) 11120
Type of fuel Diesel
Compression ratio 16.4:1
No. of valves 4
Cab D310-H2 height ceiling, double berth RHD
Capacity 3 persons
Gearbox Type FAST 16JS200TA
Max. torque(N.m) 2000
Gear ratio 12.1 9.41 7.31 5.71 4.46 3.48 2.71 2.11 1.64 1.28 1 0.78
Clutch Φ430mm pull-type diaphragm spring clutch
Glass Manual
Frame H ×W× T(mm) 300×90×(8+5)
Frame width 940 (front ), Frame width 810 ( rear )
No. of spring leaves 3/4
Tyre Size 315/80R22.5
Air conditioner A/C
Dimensions Overall dimension (mm) 7060 ×2500×3700
Wheel base (mm) 3300+1350
Front/Rear tread(mm) 2027,1820/1820
App./Dep. angel (°) 18/32
Min. ground clearance(mm) 240
Performance Max. speed(km/h) 98
Mass Curb weight(Kg) 8805
G.V.W (Kg) 25000
Trailer G.V.W(Kg) 40000
