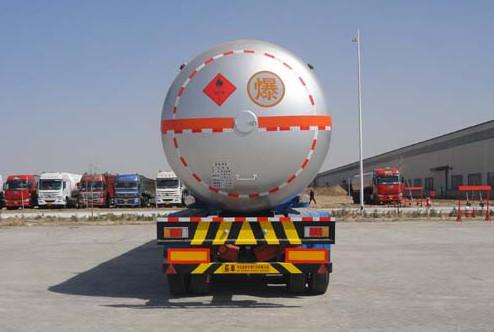

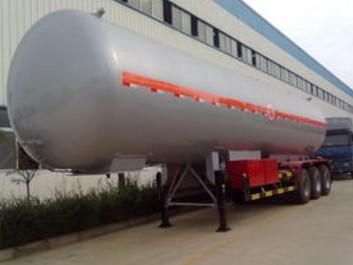

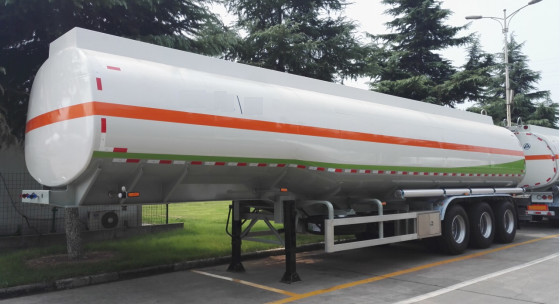

59.4CBM 3 Axle Semi Trailer / LNG Transport Trailers For Transport LPG
59.4CBM 3 Axle Semi Trailer / LNG Transport Trailers For Transport LPG
59.4CBM 3 Axle Semi Trailer / LNG Transport Trailers For Transport LPG
59.4CBM 3 Axle Semi Trailer / LNG Transport Trailers For Transport LPG
59.4CBM 3 Axle Semi Trailer / LNG Transport Trailers For Transport LPG
59.4CBM 3 Axle Semi Trailer / LNG Transport Trailers For Transport LPG
59.4CBM 3 Axle Semi Trailer / LNG Transport Trailers For Transport LPG
59.4CBM 3 Axle Semi Trailer / LNG Transport Trailers For Transport LPG
Specifications
Brand Name :
TARZAN
Model Number :
TAR9406GY
Certification :
ISO, CCC
Place of Origin :
China
MOQ :
1 unit
Price :
$35000- $40000/unit
Supply Ability :
500 units per month
Delivery Time :
20 days after receipt of down payment
Packaging Details :
Nude packing
Product name :
LPG tanker semi trailer
Capacity :
59.4m3
Dimension :
13000mm x 2500mm x 4000mm
Tanker dimension :
φ2498×12790 (Outer) mm
Description

59.4CBM 3 Axles LPG Tanker semi trailer used for transport LPG

Parameters

No. Item name Specs. No. Item Name Basic Parameters
1 Model TAR9406GY 1 Axles 3 13T FUWA ABS
2 Tanker volume m3 59.4 2 Tyre Shuangqian12R22.5×12
3 Total weight (kg) 4000 3 Ring 9.0×12
4 Payload (kg) 24950 4 Leg SAIFU
5 Curb weight (kg) 15050 5 Traction pin 90#
6 Overall dimension (mm) 13000×2500×4000 6 Spare tire 2pcs
7 Design pressure Mpa 1.61 7 Valve box Aluminium alloy
8 Design temperature ℃ 50 8 Fire extinguisher 8kg 2pcs
9 Intrudution LPG 9 static electricity earthing device 1pcs
10 Corrosion Allowance mm 1.0 10 Safety valve 1pcs
11 Main material Q370R 11 Level gauge/Pressure gage Rotate
12 Unit volume filling 420kg/m3 12 Emergency shout off valve 2pcs Shuangjiu/Stainless
13 Dished head type Front and back ellipse head 13 Globe valve 2Shuangjiu/Stainless
14 Dished head /Thickness of canister wall 13mm/11mm 14 Thermometer 1pcs
15 Ratio of ray flaw detection 100% 15 leg/spare tire crank 1pcs
16 Heat treatment Overall elimination of stress in the furnace 16 Tire sleeve wrench 1 pcs
17 Weld joint efficiency 1.0 17 Shaft socket wrench 1 pcs
18 Side protection, fender 1 pcs
