Specifications
Brand Name :
NF
Model Number :
PC120
Certification :
CE\SGS
Place of Origin :
Quanzhou China
MOQ :
10
Payment Terms :
L/C,D/A,D/P,T/T
Supply Ability :
150,000 pieces per month
Delivery Time :
5-10 days
Packaging Details :
Anti-Rust Paper, Carton, Wood Case or Pallet
Processing :
CNC Machining
HS Code :
8431499900
Specification :
Customization
Condition :
New
Description

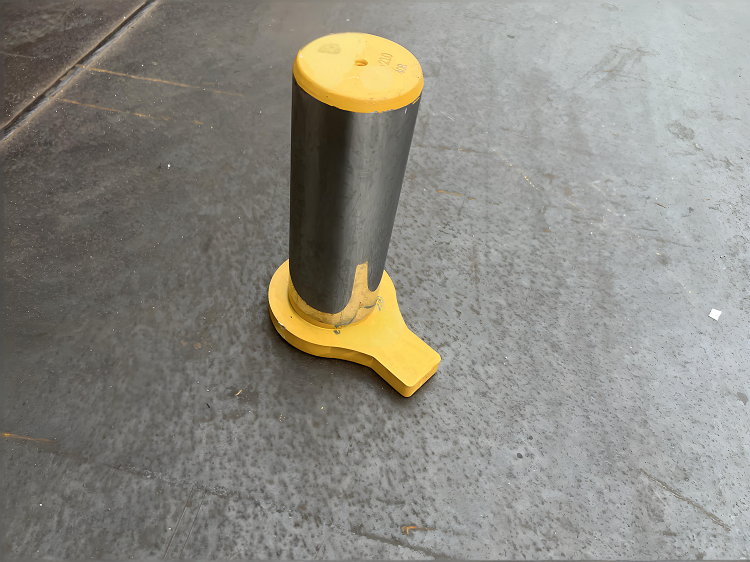

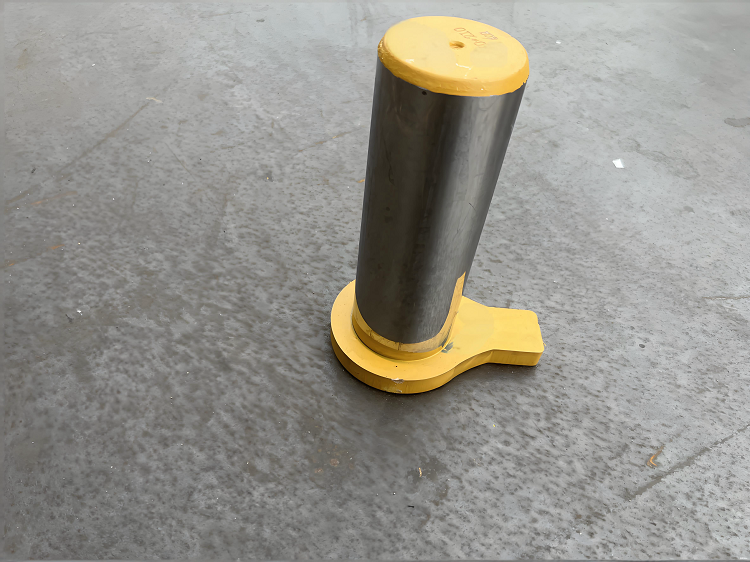

Heavy Equipment 45 mm PC120 Mini Excavator Steel Bucket Bushings and Pins

The production process of the PC120 excavator bucket shaft mainly includes the following steps:
  1. Material Preparation: Select high-quality steel such as 45# steel as the raw material to ensure its properties like hardness and toughness meet the requirements.
  2. Blanking: According to the size specifications of the bucket shaft, use a cutting machine to cut the steel into blanks of appropriate length.
  3. Forging: Conduct forging treatment on the blanks. Through high temperature and pressure, the internal structure of the blanks becomes denser, which improves the strength and comprehensive performance of the bucket shaft.
  4. Rough Machining: Perform rough machining on the forged blanks. Use equipment such as lathes and milling machines to carry out operations like outer circle turning and drilling, leaving a machining allowance of 0.5-1mm for subsequent finish machining.
  5. Quenching and Tempering Treatment: Conduct quenching and tempering treatment on the roughly machined bucket shaft, which involves quenching followed by high-temperature tempering. Quenching can improve the hardness and strength of the bucket shaft, while tempering can eliminate internal stress, endowing the bucket shaft with excellent comprehensive mechanical properties.

PC120 Mini Excavator Bucket Pins 45 Mm 45# Steel With CNC Machining

PC120 Mini Excavator Bucket Pins 45 Mm 45# Steel With CNC Machining

Bucket Pins
Size
(Diameter*Height)
mm		 Size
(Diameter*Height)
mm		 Size
(Diameter*Height)
mm		 Size
(Diameter*Height)
mm
45*260 55*350 65*300 80*420
45*270 55*380 65*380 80*520
45*330 55*430 65*440 80*560
45*360 55*460 65*490 90*730
45*380 55*500 65*520 100*600
50*300 60*320 70*380 100*800
50*390 60*370 70*440 110*630
55*300 60*450 70*500 110*730
55*340 60*500 70*540 120*700
55*330 60*520 70*600 120*800
