Rubber Track Crawler Undercarriage for Mechanical Engineering Mining and Drilling Rig
Rubber Track Crawler Undercarriage for Mechanical Engineering Mining and Drilling Rig
Rubber Track Crawler Undercarriage for Mechanical Engineering Mining and Drilling Rig
Rubber Track Crawler Undercarriage for Mechanical Engineering Mining and Drilling Rig
Rubber Track Crawler Undercarriage for Mechanical Engineering Mining and Drilling Rig
Rubber Track Crawler Undercarriage for Mechanical Engineering Mining and Drilling Rig
Rubber Track Crawler Undercarriage for Mechanical Engineering Mining and Drilling Rig
Rubber Track Crawler Undercarriage for Mechanical Engineering Mining and Drilling Rig
Rubber Track Crawler Undercarriage for Mechanical Engineering Mining and Drilling Rig
Rubber Track Crawler Undercarriage for Mechanical Engineering Mining and Drilling Rig
Specifications
Applicable Industries :
Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Farms, Construction works , Energy & Mining
Showroom Location :
None
Place of Origin :
Zhejiang, China
Type :
Rubber Track Drive System
Loading Capacity :
7 ton
Payload :
5.5 ton
Other Motor Choice :
Available
Max Gradeability :
35%
Customized Service :
Available and free
Color :
Black or Per to Customer
Application :
Rubber Track Drive System machine
Model Number :
KRT6800
Warranty :
1 Year, 1 Year
Condition :
Used
After Warranty Service :
Video technical support, Online support
Local Service Location :
None
Video outgoing-inspection :
Provided
Machinery Test Report :
Not Available
Marketing Type :
Ordinary Product
After-sales Service Provided :
Video technical support, Online support
Brand Name :
KEMER
Packaging Details :
Steel pallet ,with Stretch film Winding
Port :
Ningbo/Shanghai
Supply Ability :
50 Set/Sets per Month
Price :
$6,300.00/sets >=1 sets
MOQ :
1
Description
Product Description
Product Description

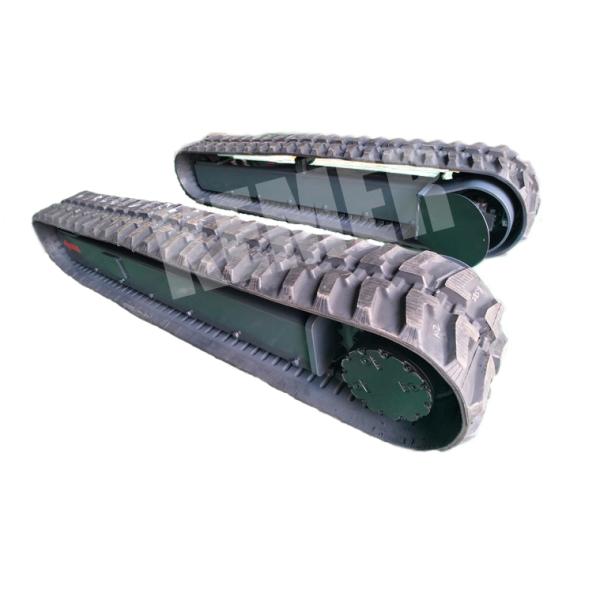

2018 Ningbo Supplier Factory Rubber Track Drive System
Length
2521mm
Loading Capacity
6800-7000 KG
Payload
5500 KG
Distance between center
2032 mm
Pitch
52.5 mm
Track width
350 mm
Track Frame
Weld
Motor Displacement
49.2/26.3 ml/r
Max speed
1.4/3.1 km/h(Each side 50L/min)
Max Output Torque(each side)
7080/3180N.m
Max Gradeability
35%

Products details:

1.Customized track frame.We can customized the Rubber Track Drive System according to customer's needs.

2.Maintenance:tips to help customers how to maintain the undercarriage and how to longer the service life.

3.Good spare parts

Rubber Track Crawler Undercarriage for Mechanical Engineering Mining and Drilling Rig
Rubber Track Crawler Undercarriage for Mechanical Engineering Mining and Drilling Rig
Other Model
Other Model
Rubber Track Crawler Undercarriage for Mechanical Engineering Mining and Drilling Rig
Rubber Track Crawler Undercarriage for Mechanical Engineering Mining and Drilling Rig

We can customized the Rubber Track Drive System according to your needs Above is just some of our models.

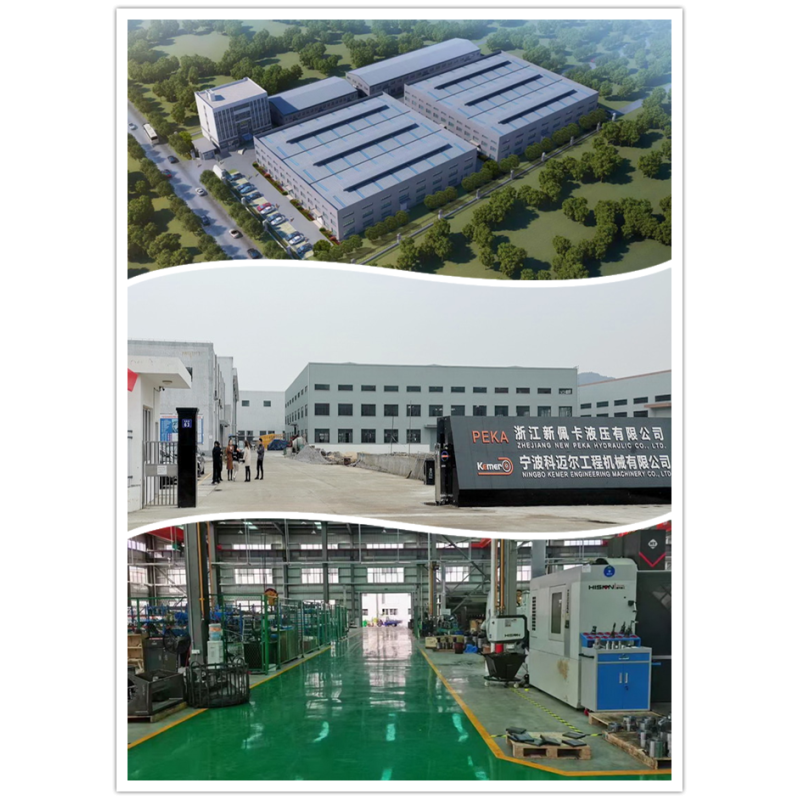

Our Company
Our Company
Rubber Track Crawler Undercarriage for Mechanical Engineering Mining and Drilling Rig
Rubber Track Crawler Undercarriage for Mechanical Engineering Mining and Drilling Rig

Ningbo Kemer Engineering Machinery Co.,LTD

We located in Ningbo China.With many years' experience in this field,our undercarriage parts are specially selected and fabricated.

Have been exported to South Asia,Australia,Turkey,Brazil and many other countries.

Products are widely welcomed by our customers.

Customized service is available here.We usually customized the Rubber Track Drive System according to customer's needs like the length,width,track width,loading capacity,speed and so on.If you have detailed drawing we can make accordingly.

Rubber Track Crawler Undercarriage for Mechanical Engineering Mining and Drilling Rig

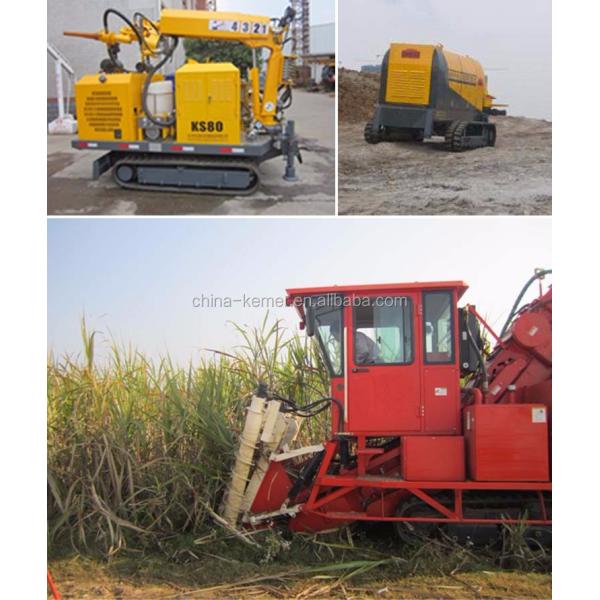

Usually machine facotry will buy Rubber Track Assembly from us and connect to their machines.

Rubber track chassis crawler undercarriage for excavator, drilling rig, mining,mechanial engineering machine
Our Products
Our Products

0.5 to 80 ton Track Assembly is available here.0.5 to 10 ton Rubber Track Drive System

We make 0.5 to 80 ton track undercarriages.

Related Products
Related Products
Rubber Track Crawler Undercarriage for Mechanical Engineering Mining and Drilling Rig
Rubber Track Crawler Undercarriage for Mechanical Engineering Mining and Drilling Rig
Rubber Track Crawler Undercarriage for Mechanical Engineering Mining and Drilling Rig

KRT3000

3 ton Rubber Track Drive System

KRT4000

4 ton Rubber Track Drive System

KRT1500

1.5 ton Rubber Track Drive System

Customers
Customers
Rubber Track Crawler Undercarriage for Mechanical Engineering Mining and Drilling Rig
Our Customers

Our customers come and visit our factory and we share a good time then.DIscussed about the products and their requirements.
