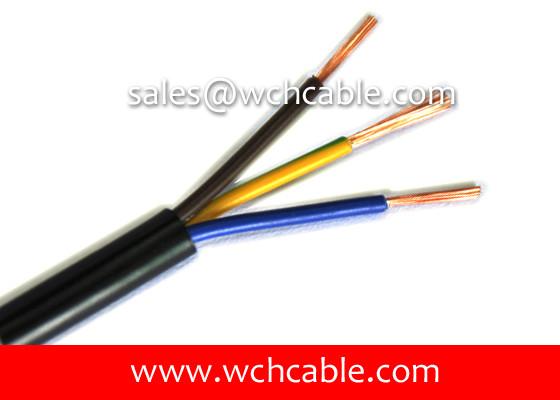

UL20979 Commercial Machine Connect Cable PUR Jacket Rated 80C 600V
UL20979 Commercial Machine Connect Cable PUR Jacket Rated 80C 600V
Specifications
Brand Name :
WCH Cable
Model Number :
UL20979
Certification :
UL, CUL, CSA, AWM
Place of Origin :
Dongguan, China
MOQ :
1220 meters
Price :
USD 0.124 per meter
Payment Terms :
D/P, T/T, L/C, D/A, Western Union, MoneyGram
Supply Ability :
300,000 meters per month
Delivery Time :
9 days for ready goods
Packaging Details :
305 meters per reel or spool
Style Number :
UL20979
Application :
Commercial Machine Connect
Rated Voltage :
600V
Conductor :
Highly Pure Copper Strands
Rated Temperature :
80°C
Insulation :
SR-PVC, FRPE, XLPE, TPE, PUR, TPU
Standard :
UL758, UL1581
Sheath Material :
Polyurethane PUR
Description

UL20979 Commercial Machine Connect Cable PUR Jacket Rated 80C 600V

Conductor material: high purity copper wires

Rated: 80C Degrees, 600V

Insulation material: AWM complying materials.

Jacket material: Quality Polyurethane PUR.

Style Number Conductor Quantity Conductor Structure Insulation
Thickness		 Insulation Diameter Screen Coverage Jacket Thickness Overall
Diameter		 Conductor
Resistance
AWG No/mm mm mm % mm mm Ω/KM
UL20979 2C 30 7/0.100 0.23 0.80 ≥65 0.76 3.20 381.00
2C 28 7/0.127 0.23 0.90 ≥65 0.76 3.40 239.00
2C 26 7/0.16 0.23 1.00 ≥65 0.76 3.60 150.00
2C 24 11/0.16 0.23 1.10 ≥65 0.76 3.80 94.20
2C 22 17/0.16 0.23 1.30 ≥65 0.76 4.20 59.40
2C 20 21/0.178 0.23 1.50 ≥65 0.76 4.60 36.70
2C 18 34/0.178 0.23 1.80 ≥65 0.76 5.20 23.20
2C 16 26/0.25 0.23 2.10 ≥65 0.76 5.80 14.60
3C 30 7/0.100 0.23 0.80 ≥65 0.76 3.40 381.00
3C 28 7/0.127 0.23 0.90 ≥65 0.76 3.50 239.00
3C 26 7/0.16 0.23 1.00 ≥65 0.76 3.80 150.00
3C 24 11/0.16 0.23 1.10 ≥65 0.76 4.00 94.20
3C 22 17/0.16 0.23 1.30 ≥65 0.76 4.40 59.40
3C 20 21/0.178 0.23 1.50 ≥65 0.76 4.80 36.70
3C 18 34/0.178 0.23 1.80 ≥65 0.76 5.50 23.20
4C 30 7/0.100 0.23 0.80 ≥65 0.76 4.80 381.00
4C 28 7/0.127 0.23 0.90 ≥65 0.76 5.10 239.00
4C 26 7/0.16 0.23 1.00 ≥65 0.76 5.30 150.00
4C 24 11/0.16 0.23 1.10 ≥65 0.76 5.50 94.20
4C 22 17/0.16 0.23 1.30 ≥65 0.76 6.00 59.40
4C 20 21/0.178 0.23 1.50 ≥65 0.76 6.50 36.70
5C 30 7/0.100 0.23 0.80 ≥65 0.76 5.00 381.00
5C 28 7/0.127 0.23 0.90 ≥65 0.76 5.30 239.00
5C 26 7/0.16 0.23 1.00 ≥65 0.76 5.60 150.00
5C 24 11/0.16 0.23 1.10 ≥65 0.76 5.80 94.20
5C 22 17/0.16 0.23 1.30 ≥65 0.76 6.40 59.40
6C 30 7/0.100 0.23 0.80 ≥65 0.76 5.30 381.00
6C 28 7/0.127 0.23 0.90 ≥65 0.76 5.60 239.00
6C 26 7/0.16 0.23 1.00 ≥65 0.76 5.90 150.00
6C 24 11/0.16 0.23 1.10 ≥65 0.76 6.20 94.20

WCH Cable - Professional Manufacturer of PUR cable, FEP cable, PVC cable, Rubber cable

UL20979 Commercial Machine Connect Cable PUR Jacket Rated 80C 600V

Style Number: UL20979
Rated Grade:

80 deg C, 600 Vac, Horizontal flame.
Conductor: Above 99.99% High purity copper wires
Screen Shield: Optional
Jacket: Extruded Polyurethane PUR
Average thickness: 30 mils (Ref.)
Minimum thickness: 24 mils (Ref.)
Specification: Detailed specification is to be customized per customer's requirement.
Executed Standard: Appliance Wiring Material UL 758.
Application: Computer data transmission use purpose.
Manufacturer: WCH Cable Industrial Co., Ltd.
Manufacture Location: Dongguan, Guangdong, China
Other Name of the Cable: UL Cable, PUR Cable, Data Cable, Multiple-conductor Cable, UL20979 Cable

UL20979 Commercial Machine Connect Cable PUR Jacket Rated 80C 600V
