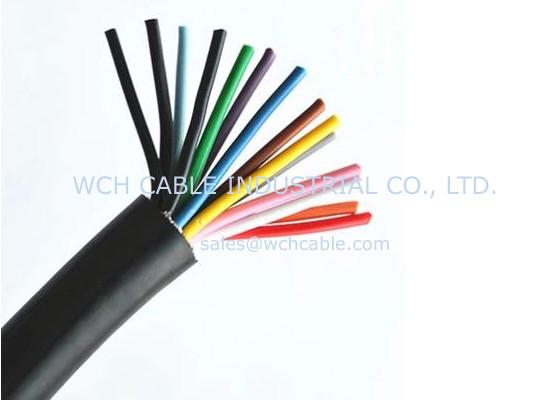

UL20698 Industry Engine TPU Cable
UL20698 Industry Engine TPU Cable
Specifications
Brand Name :
WCH Cable
Model Number :
UL20698
Certification :
UL, Cul, AWM
Place of Origin :
Dongguan, China
MOQ :
3050 meters
Price :
USD0.21 per meter
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
100,000pcs per week
Delivery Time :
9 days for ready goods
Packaging Details :
610 meters per carton
Conductor Material :
Tin-plated copper wire strands
Rated Temperature :
80°C
Insulation :
AWM Compliant Materials
Rated Voltage :
90V
Jacket Material :
Thermoplastic Polyurethane TPU
Executed Standard :
UL758, UL1581, AWM
Application :
Industry Engine Connection
Description

UL20698 Industry Engine TPU Cable

Style Number: UL20698


Rated Temperature: 80 deg C.
Rated Voltage: 90V.
Flammability: UL VW-1 passed.
Uniform insulation thickness for smooth stripping.

Standard: Appliance Wiring Material UL758.
Other approvals: Cul, CSA / Canadian Standards Association.


Application: industry engine interconnection

Style Number Core Quantity Copper Conductor Insulation Thickness Insulation Diameter Jacket Thickness Overall Diameter Conductor Resistance
AWG No/mm mm mm mm mm Ω/KM
UL20698 2C 30 7/0.100 0.23 0.80 0.76 3.60 381.00
2C 28 7/0.127 0.23 0.90 0.76 3.90 239.00
2C 26 7/0.16 0.23 1.00 0.76 4.00 150.00
2C 24 11/0.16 0.23 1.10 0.76 4.20 94.20
2C 22 17/0.16 0.23 1.30 0.76 4.60 59.40
2C 20 21/0.178 0.23 1.50 0.76 5.00 36.70
2C 18 34/0.178 0.23 1.80 0.76 5.60 23.20
2C 16 26/0.25 0.23 2.00 0.76 7.80 14.60
3C 30 7/0.100 0.23 0.80 0.76 5.50 381.00
3C 28 7/0.127 0.23 0.90 0.76 5.70 239.00
3C 26 7/0.16 0.23 1.00 0.76 5.90 150.00
3C 24 11/0.16 0.23 1.10 0.76 6.10 94.20
3C 22 17/0.16 0.23 1.30 0.76 6.50 59.40
3C 20 21/0.178 0.23 1.50 0.76 7.00 36.70
3C 18 34/0.178 0.23 1.80 0.76 7.60 23.20
4C 30 7/0.100 0.23 0.80 0.76 5.70 381.00
4C 28 7/0.127 0.23 0.90 0.76 5.90 239.00
4C 26 7/0.16 0.23 1.00 0.76 6.20 150.00
4C 24 11/0.16 0.23 1.10 0.76 6.50 94.20
4C 22 17/0.16 0.23 1.30 0.76 6.90 59.40
4C 20 21/0.178 0.23 1.50 0.76 7.40 36.70
5C 30 7/0.100 0.23 0.80 0.76 6.00 381.00
5C 28 7/0.127 0.23 0.90 0.76 6.30 239.00
5C 26 7/0.16 0.23 1.00 0.76 6.40 150.00
5C 24 11/0.16 0.23 1.10 0.76 6.80 94.20
5C 22 17/0.16 0.23 1.30 0.76 7.40 59.40
6C 30 7/0.100 0.23 0.80 0.76 6.40 381.00
6C 28 7/0.127 0.23 0.90 0.76 6.70 239.00
6C 26 7/0.16 0.23 1.00 0.76 7.00 150.00
6C 24 11/0.16 0.23 1.10 0.76 7.30 94.20

UL20698 Industry Engine TPU Cable

UL20698 Industry Engine TPU Cable

UL20698 Industry Engine TPU Cable

UL20698 Industry Engine TPU Cable

Tag: UL20698, tpu cable
