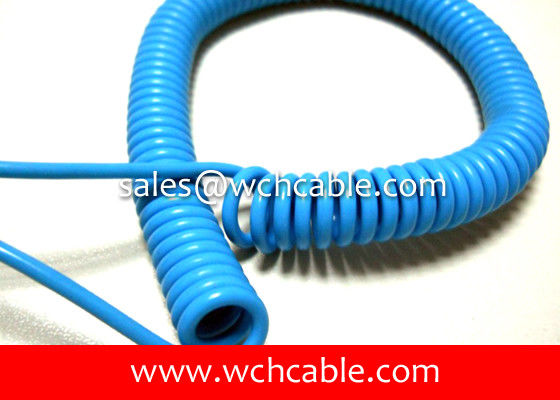

UL21929 High Temperature Resistant TPU Sheath Spring Cable 105C 1000V
UL21929 High Temperature Resistant TPU Sheath Spring Cable 105C 1000V
UL21929 High Temperature Resistant TPU Sheath Spring Cable 105C 1000V
UL21929 High Temperature Resistant TPU Sheath Spring Cable 105C 1000V
UL21929 High Temperature Resistant TPU Sheath Spring Cable 105C 1000V
UL21929 High Temperature Resistant TPU Sheath Spring Cable 105C 1000V
UL21929 High Temperature Resistant TPU Sheath Spring Cable 105C 1000V
UL21929 High Temperature Resistant TPU Sheath Spring Cable 105C 1000V
Specifications
Brand Name :
WCH Cable
Model Number :
UL21929
Certification :
UL, Cul, AWM
Place of Origin :
Dongguan, China
MOQ :
200pcs
Price :
USD 0.22 per piece
Payment Terms :
D/P, T/T, L/C, D/A, Western Union, MoneyGram
Supply Ability :
100,000 pieces per month
Delivery Time :
9 days for ready goods
Packaging Details :
200pcs per carton box
Style Number :
UL21929
Conductor Material :
Highly Pure Copper Wire Strands
Rated Temperature :
105°C
Insulation Material :
AWM Complying Material
Rated Voltage :
1000V
Jacket Material :
Thermoplastic TPU
Feature :
High Temperature Resistant
Jacket Thickness :
15mils Minimum
Description

UL21929 High Temperature Resistant TPU Sheath Spring Cable 105C 1000V

Conductor material: high purity copper wires, solid or strands, optional.

Insulation material: AWM complied wire designated material.

Sheath material: spiral coiling suitable thermoplastic TPU.

Spiral extended length: cable diameter x 3.5.

Cable Rated: 105°C, 1000V.

Cold temperature resistant, up to -40°C.

Style Number Core Quantity Copper Conductor Insulation Thickness Insulation Diameter Jacket Thickness Overall Diameter Conductor Resistance
AWG No/mm mm mm mm mm Ω/KM
UL21929 2C 30 7/0.100 0.76 1.90 0.38 5.80 381.00
2C 28 7/0.127 0.76 2.00 0.38 6.10 239.00
2C 26 7/0.16 0.76 2.10 0.38 6.20 150.00
2C 24 11/0.16 0.76 2.20 0.38 6.40 94.20
2C 22 17/0.16 0.76 2.40 0.38 6.80 59.40
2C 20 21/0.178 0.76 2.50 0.38 7.20 36.70
2C 18 34/0.178 0.76 2.80 0.38 7.80 23.20
2C 16 26/0.25 0.76 3.10 0.38 10.00 14.60
3C 30 7/0.100 0.76 1.90 0.38 7.70 381.00
3C 28 7/0.127 0.76 2.00 0.38 7.90 239.00
3C 26 7/0.16 0.76 2.10 0.38 8.10 150.00
3C 24 11/0.16 0.76 2.20 0.38 8.30 94.20
3C 22 17/0.16 0.76 2.40 0.38 8.70 59.40
3C 20 21/0.178 0.76 2.50 0.38 9.20 36.70
3C 18 34/0.178 0.76 2.80 0.38 9.80 23.20
4C 30 7/0.100 0.76 1.90 0.38 7.90 381.00
4C 28 7/0.127 0.76 2.00 0.38 8.10 239.00
4C 26 7/0.16 0.76 2.10 0.38 8.40 150.00
4C 24 11/0.16 0.76 2.20 0.38 8.70 94.20
4C 22 17/0.16 0.76 2.40 0.38 9.10 59.40
4C 20 21/0.178 0.76 2.50 0.38 9.70 36.70
5C 30 7/0.100 0.76 1.90 0.38 8.20 381.00
5C 28 7/0.127 0.76 2.00 0.38 8.50 239.00
5C 26 7/0.16 0.76 2.10 0.38 8.60 150.00
5C 24 11/0.16 0.76 2.20 0.38 9.00 94.20
5C 22 17/0.16 0.76 2.40 0.38 9.60 59.40
6C 30 7/0.100 0.76 1.90 0.38 8.60 381.00
6C 28 7/0.127 0.76 2.00 0.38 8.90 239.00
6C 26 7/0.16 0.76 2.10 0.38 9.20 150.00
6C 24 11/0.16 0.76 2.20 0.38 9.50 94.20

UL21929 High Temperature Resistant TPU Sheath Spring Cable 105C 1000V

Style Number: UL21929
Rated Grade: 105 deg C, 1000 Vac, horizontal flame.
Conductor: Above 99.99% High purity copper wires, tinned or bare, optional.
Screen Shield: Copper wire braided, or copper spiral wrapped, optional
Jacket: Thermoplastic Polyurethane TPU
Average thickness: 15 mils (Ref.)
Minimum thickness: 13 mils (Ref.)
Specification: Detailed specification is to be customized per customer's requirement.
Executed Standard: Appliance Wiring Material UL 758.
Application: Internal wiring of electronic equipment and appliances.
Manufacturer: WCH Cable Industrial Co., Ltd.
Manufacture Location: Dongguan, Guangdong, China
Other Name of the Cable: UL Cable, TPU Cable, 105C cable, UL21929 Cable, spring cable

UL21929 High Temperature Resistant TPU Sheath Spring Cable 105C 1000V

UL21929 High Temperature Resistant TPU Sheath Spring Cable 105C 1000V

UL21929 High Temperature Resistant TPU Sheath Spring Cable 105C 1000V

UL21929 High Temperature Resistant TPU Sheath Spring Cable 105C 1000V

Tag: UL21929, cable, spring cable
