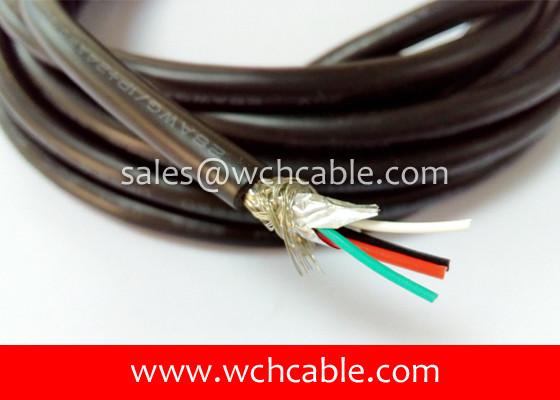

UL21959 China Factory Made Continuous Flex TPU Cable 90C 600V
UL21959 China Factory Made Continuous Flex TPU Cable 90C 600V
Specifications
Brand Name :
WCH Cable
Model Number :
UL21959
Certification :
UL, Cul, AWM
Place of Origin :
Dongguan, China
MOQ :
1220 meters
Price :
USD 0.16 per meter
Payment Terms :
D/P, T/T, L/C, D/A, Western Union, MoneyGram
Supply Ability :
3,000,000 meters per month
Delivery Time :
9 days for ready goods
Packaging Details :
305 meters per reel or spool
Style Number :
UL21959
Conductor Material :
Highly Pure Copper Wires
Rated Temperature :
90°C
Insulation Material :
AWM Complied Material
Rated Voltage :
600V
Jacket Material :
Thermoplastic TPU
Feature :
Resistant to Oil, Sunlight
Jacket Thickness :
30 mils Minimum
Description

UL21959 China Factory Made Continuous Flex TPU Cable 90C 600V

WCH Cable manufacturing lines implement ISO9001:2008 Quality approval management. Most importantly, to assure of environment-friendly production, WCH Cable proudly announces the whole factory wins the Hazardous substance management approval QC080000. All Cables and Wires provided by WCH Cable are hazardous substance free. WCH Cable Guarantees all products 100% complies with RoHS directive.

TPU cable style number: UL21959;

Feature: China factory manufactured, continuous flex;

Rated: 90°C, 600V;

Uniform internal wire insulation for easy stripping.

Style Number Core Quantity Conductor Gauge Conductor Strands Insulation Thickness Insulation Diameter Jacket Thickness Overall Diameter Conductor Resistance
AWG No/mm mm mm mm mm Ω/KM
UL21959 2C 30 7/0.100 0.76 1.90 0.76 6.00 381.00
2C 28 7/0.127 0.76 2.00 0.76 6.30 239.00
2C 26 7/0.16 0.76 2.10 0.76 6.40 150.00
2C 24 11/0.16 0.76 2.20 0.76 6.60 94.20
2C 22 17/0.16 0.76 2.40 0.76 7.00 59.40
2C 20 21/0.178 0.76 2.50 0.76 7.40 36.70
2C 18 34/0.178 0.76 2.80 0.76 8.00 23.20
2C 16 26/0.25 0.76 3.10 0.76 10.20 14.60
3C 30 7/0.100 0.76 1.90 0.76 7.90 381.00
3C 28 7/0.127 0.76 2.00 0.76 8.10 239.00
3C 26 7/0.16 0.76 2.10 0.76 8.30 150.00
3C 24 11/0.16 0.76 2.20 0.76 8.50 94.20
3C 22 17/0.16 0.76 2.40 0.76 8.90 59.40
3C 20 21/0.178 0.76 2.50 0.76 9.40 36.70
3C 18 34/0.178 0.76 2.80 0.76 10.00 23.20
4C 30 7/0.100 0.76 1.90 0.76 8.10 381.00
4C 28 7/0.127 0.76 2.00 0.76 8.30 239.00
4C 26 7/0.16 0.76 2.10 0.76 8.60 150.00
4C 24 11/0.16 0.76 2.20 0.76 8.90 94.20
4C 22 17/0.16 0.76 2.40 0.76 9.30 59.40
4C 20 21/0.178 0.76 2.50 0.76 9.80 36.70
5C 30 7/0.100 0.76 1.90 0.76 8.40 381.00
5C 28 7/0.127 0.76 2.00 0.76 8.70 239.00
5C 26 7/0.16 0.76 2.10 0.76 8.80 150.00
5C 24 11/0.16 0.76 2.20 0.76 9.20 94.20
5C 22 17/0.16 0.76 2.40 0.76 9.80 59.40
6C 30 7/0.100 0.76 1.90 0.76 8.80 381.00
6C 28 7/0.127 0.76 2.00 0.76 9.10 239.00
6C 26 7/0.16 0.76 2.10 0.76 9.40 150.00
6C 24 11/0.16 0.76 2.20 0.76 9.70 94.20

UL21959 China Factory Made Continuous Flex TPU Cable 90C 600V

Tag: UL21959, cable, tpu cable
