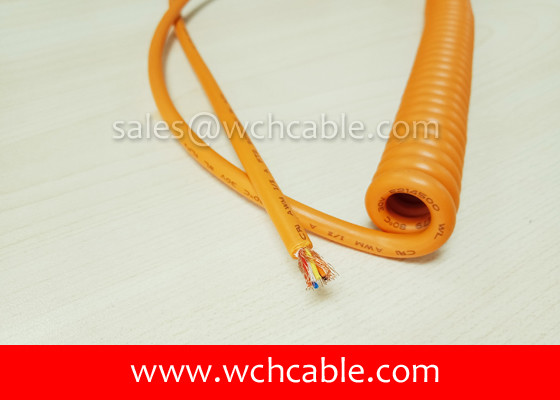

UL Curly Cable, AWM Style UL21523 28AWG 5C VW-1 80°C 30V, PP / TPU
UL Curly Cable, AWM Style UL21523 28AWG 5C VW-1 80°C 30V, PP / TPU
Specifications
Brand Name :
WCH Cable
Model Number :
UL21523
Certification :
UL, Cul, AWM
Place of Origin :
Dongguan, China
MOQ :
200 pcs
Price :
USD0.113 per piece
Payment Terms :
L/C, D/A, D/P, T/T, Western Union,
Supply Ability :
100,000pcs per week
Delivery Time :
9 days for ready goods
Packaging Details :
200 pcs per box
Style Number :
UL21523
Conductor Material :
Highly pure copper wire
Rated Temperature :
80°C
Insulation Material :
Polypropylene PP
Rated Voltage :
30V
Sheath Material :
Thermoplastic Polyurethane TPU
Alternative Style :
UL20554
Description

UL Curly Cable, AWM Style UL21523 28AWG 5C VW-1 80°C 30V, PP / TPU

Conductor size: 28AWG

Wire assembly: 5 cores

Insulation color: Black, red, white, blue, green.

Insulation material: PP.

Shield: copper wire spiral wrapped.

Sheath color: Orange.

Sheath material: TPU

Sheath thickness: 0.76mm

Flammability: VW-1

Rated temperature: 80°C

Rated voltage: 30V

Conductor resistance: 284Ω/km

Insulation resistance: 100mΩ/km

Recommended Use: data control connection.

Alternative style: UL20554

Remark: color of wires or sheath can be changed according to customer's requirement.

UL Curly Cable, AWM Style UL21523 28AWG 5C VW-1 80°C 30V, PP / TPU
