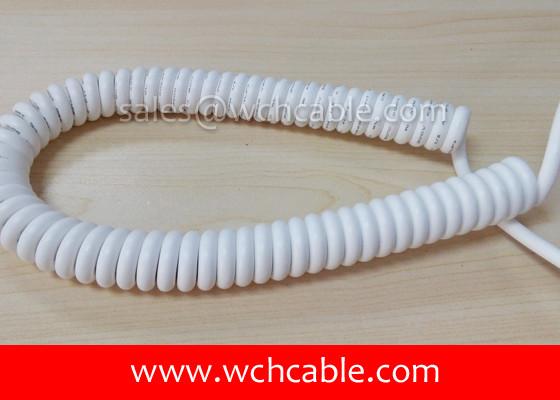

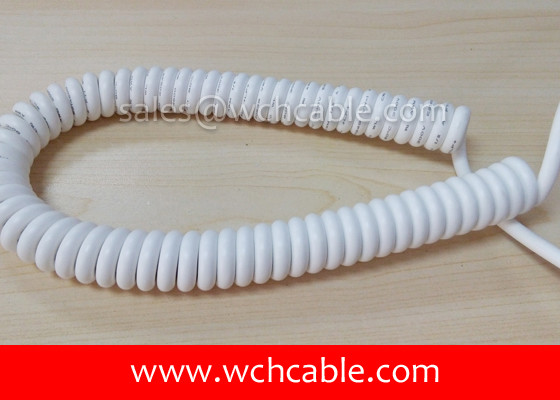

UL20152 Mechanical Abuse Compatible Spiral Cable
UL20152 Mechanical Abuse Compatible Spiral Cable
Specifications
Brand Name :
WCH Cable
Model Number :
UL20152
Certification :
UL, Cul, AWM
Place of Origin :
Dongguan, China
MOQ :
200 pieces
Price :
USD0.25 per piece
Payment Terms :
L/C, D/P, D/A, T/T, Western Union, MoneyGram
Supply Ability :
200,000 pieces per month
Delivery Time :
9 days for ready goods
Packaging Details :
200 pieces per carton
Style Number :
UL20152
Conductor Material :
Highly pure copper wire strands
Rated Temperature :
90°C
Insulation Material :
AWM verified materials
Rated Voltage :
300V
Jacket Material :
Quality Thermoplastic PUR
Application :
Internal Wiring
Jacket Thickness :
13 Mils minimum
Description

UL20152 Mechanical Abuse Compatible Spiral Cable

Spiral cable style number: UL20152;

Spiral cable rated level: 90°C, 300V;

Spiral cable feature: mechanical abuse compatible;

Spiral cable dimensions:

  • Extended length: curly spiral section length x 3.5;
  • Curly coil diameter: cable overall diameter x 3.5;
  • Both straight ends cut flat or tinned, optional.

Style Number Core Quantity Conductor Size Conductor Strands Insulation Thickness Insulation Diameter Jacket Thickness Overall Diameter Conductor Resistance
AWG No/mm mm mm mm mm Ω/KM
UL20152 2C 30 11/0.08 0.23 0.80 0.38 3.00 381.00
2C 28 16/0.08 0.23 0.90 0.38 3.30 239.00
2C 26 26/0.08 0.23 1.00 0.38 3.50 150.00
2C 24 41/0.08 0.23 1.10 0.38 3.70 94.20
2C 22 65/0.08 0.23 1.30 0.38 4.10 59.40
2C 20 104/0.08 0.23 1.50 0.38 4.50 36.70
2C 18 164/0.08 0.23 1.80 0.38 5.20 23.20
2C 16 265/0.08 0.23 2.00 0.38 5.60 14.60
3C 30 11/0.08 0.23 0.80 0.38 3.30 381.00
3C 28 16/0.08 0.23 0.90 0.38 3.50 239.00
3C 26 26/0.08 0.23 1.00 0.38 3.70 150.00
3C 24 41/0.08 0.23 1.10 0.38 3.90 94.20
3C 22 65/0.08 0.23 1.30 0.38 4.30 59.40
3C 20 104/0.08 0.23 1.50 0.38 4.80 36.70
3C 18 164/0.08 0.23 1.80 0.38 5.20 23.20
4C 30 11/0.08 0.23 0.80 0.38 3.50 381.00
4C 28 16/0.08 0.23 0.90 0.38 3.80 239.00
4C 26 26/0.08 0.23 1.00 0.38 4.00 150.00
4C 24 41/0.08 0.23 1.10 0.38 4.20 94.20
4C 22 65/0.08 0.23 1.30 0.38 4.70 59.40
4C 20 104/0.08 0.23 1.50 0.38 5.20 36.70
5C 30 11/0.08 0.23 0.80 0.38 3.80 381.00
5C 28 16/0.08 0.23 0.90 0.38 4.20 239.00
5C 26 26/0.08 0.23 1.00 0.38 4.40 150.00
5C 24 41/0.08 0.23 1.10 0.38 4.70 94.20
5C 22 65/0.08 0.23 1.30 0.38 5.30 59.40
6C 30 11/0.08 0.23 0.80 0.38 4.20 381.00
6C 28 16/0.08 0.23 0.90 0.38 4.40 239.00
6C 26 26/0.08 0.23 1.00 0.38 4.70 150.00
6C 24 41/0.08 0.23 1.10 0.38 5.00 94.20

UL20152 Mechanical Abuse Compatible Spiral Cable

Tag: UL20152, cable, spiral cable
