UL21253 TPU Cable
UL21253 TPU Cable
UL21253 TPU Cable
UL21253 TPU Cable
UL21253 TPU Cable
UL21253 TPU Cable
UL21253 TPU Cable
UL21253 TPU Cable
UL21253 TPU Cable
UL21253 TPU Cable
Specifications
Brand Name :
WCH Cable
Model Number :
UL21253
Certification :
UL, Cul, AWM
Place of Origin :
Dongguan, China
MOQ :
1220 meters
Price :
USD 0.115 per meter
Payment Terms :
D/P, T/T, L/C, D/A, Western Union, MoneyGram
Supply Ability :
3,000,000 meters per month
Delivery Time :
9 days for ready goods
Packaging Details :
305 meters per reel or spool
Style Number :
UL21253
Conductor Material :
Highly Pure Copper Wires
Rated Temperature :
75°C
Insulation Material :
Thermoplastic TPU
Rated Voltage :
30V
Jacket Material :
Thermoplastic TPU
Cores Assembly :
Pairs or Groups twisted
Jacket Thickness :
30 mils
Description

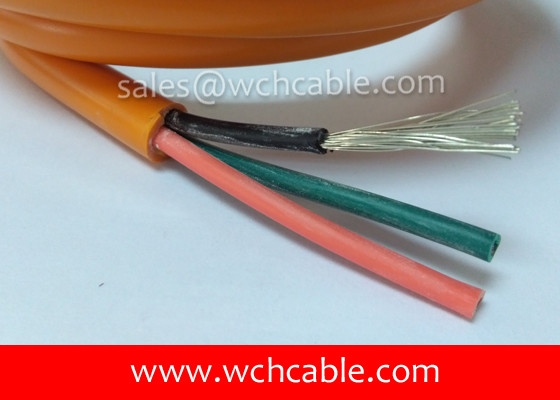

UL21253 TPU Cable

UL21253 is fabricated with oxygen-free pure copper conductors only, of which the purity is up to 99.99%. It is featured as perfect electrical conductivity, wonderful processing performance, good corrosion resistance and so on.

TPU cable style: UL21253

Rated: 75°C, 30V

Conductor material: pure copper wire strands.

Insulation material: thermoplastic TPU.

Jacket material: thermoplastic TPU.

Feature: water and dust resistant.

Application: industry equipment connection.

Cable Number Conductor Quantity Conductor Size Conductor Strands Insulation Thickness Insulation Diameter Jacket Thickness Overall Diameter Conductor Resistance
AWG No/mm mm mm mm mm Ω/KM
UL21253 3C 28 7/0.127 0.23 0.90 0.76 3.56 239.00
3C 26 7/0.16 0.23 1.00 0.76 3.78 150.00
3C 24 11/0.16 0.23 1.10 0.76 3.99 94.20
3C 22 17/0.16 0.23 1.30 0.76 4.42 59.40
3C 20 21/0.178 0.23 1.50 0.76 4.85 36.70
3C 18 34/0.178 0.23 1.70 0.76 5.28 23.20
3C 16 26/0.254 0.23 2.10 0.76 6.15 14.60
4C 28 7/0.127 0.23 0.90 0.76 3.79 239.00
4C 26 7/0.16 0.23 1.00 0.76 4.03 150.00
4C 24 11/0.16 0.23 1.10 0.76 4.28 94.20
4C 22 17/0.16 0.23 1.30 0.76 4.76 59.40
4C 20 21/0.178 0.23 1.50 0.76 5.24 36.70
4C 18 34/0.178 0.23 1.70 0.76 5.72 23.20
4C 16 26/0.254 0.23 2.10 0.76 6.69 14.60
5C 28 7/0.127 0.23 0.90 0.76 4.05 239.00
5C 26 7/0.16 0.23 1.00 0.76 4.32 150.00
5C 24 11/0.16 0.23 1.10 0.76 4.59 94.20
5C 22 17/0.16 0.23 1.30 0.76 5.13 59.40
5C 20 21/0.178 0.23 1.50 0.76 5.67 36.70
5C 18 34/0.178 0.23 1.70 0.76 6.21 23.20
5C 16 26/0.254 0.23 2.10 0.76 7.29 14.60
6C 28 7/0.127 0.23 0.90 0.76 4.32 239.00
6C 26 7/0.16 0.23 1.00 0.76 4.62 150.00
6C 24 11/0.16 0.23 1.10 0.76 4.92 94.20
6C 22 17/0.16 0.23 1.30 0.76 5.52 59.40
6C 20 21/0.178 0.23 1.50 0.76 6.12 36.70
6C 18 34/0.178 0.23 1.70 0.76 6.72 23.20
6C 16 26/0.254 0.23 2.10 0.76 7.92 14.60
7C 28 7/0.127 0.23 0.90 0.76 4.37 239.00
7C 26 7/0.16 0.23 1.00 0.76 4.68 150.00
7C 24 11/0.16 0.23 1.10 0.76 4.98 94.20
7C 22 17/0.16 0.23 1.30 0.76 5.59 59.40
7C 20 21/0.178 0.23 1.50 0.76 6.20 36.70
7C 18 34/0.178 0.23 1.70 0.76 6.81 23.20
7C 16 26/0.254 0.23 2.10 0.76 8.04 14.60
8C 28 7/0.127 0.23 0.90 0.76 4.56 239.00
8C 26 7/0.16 0.23 1.00 0.76 4.89 150.00
8C 24 11/0.16 0.23 1.10 0.76 5.21 94.20
8C 22 17/0.16 0.23 1.30 0.76 5.87 59.40
8C 20 21/0.178 0.23 1.50 0.76 6.52 36.70
8C 18 34/0.178 0.23 1.70 0.76 7.17 23.20
9C 28 7/0.127 0.23 0.90 0.76 4.74 239.00
9C 26 7/0.16 0.23 1.00 0.76 5.09 150.00
9C 24 11/0.16 0.23 1.10 0.76 5.43 94.20
9C 22 17/0.16 0.23 1.30 0.76 6.12 59.40
9C 20 21/0.178 0.23 1.50 0.76 6.82 36.70

UL21253 TPU Cable

UL21253 TPU CableUL21253 TPU CableUL21253 TPU CableUL21253 TPU Cable

Tag: UL21253, TPU Cable
