Specifications
Brand Name :
WCH Cable
Model Number :
UL20057
Certification :
UL Certificate
Place of Origin :
Dongguan, China
MOQ :
100pcs
Price :
USD 0.213 per piece
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
1000000 pcs per month
Delivery Time :
9 days for ready goods
Packaging Details :
100 pcs per carton box
Feature :
Abrasion Resistant
Conductor :
High Purity Copper Wire
UL Style Number :
UL20057
Gauge :
24AWG
Application :
Data Trasmission
Standard :
UL758, CSA22.2
Description

Abrasion Resistant Elastomer Jacketed Retractable Spiral Cable UL20057, UL20327, UL20618

Abrasion Resistant Elastomer Jacketed Retractable Spiral Cable UL20057, UL20327, UL20618

Spiral Cable

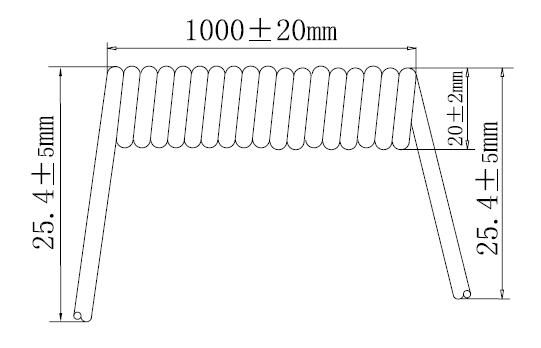

Construction		 Spiral Length (unexpanded) (mm) 1000
Straight Ends (mm/mm) 25.4/25.4
Extension Ratio 　 1:3.8
Spiral Outer Ø (mm) 20
Tail Direction 　 90 degree
End Treatment Optional Cut Flat, Stripped/Tinned
Electrical
Capability		 Working Voltage (V) 300
Temperature Range (°C) 105
Test Voltage (V) 2000/3000
Nominal Voltage (V) 300
Conductor Resistance (Ω/KM at 20°C) 94.2
Insulation Resistance (MΩ/KM at 20°C) 100
Standard & Use UL Style Number Optional Per UL20057, UL20327, UL20618
CUL Standard 　 II A
Flammability 　 FT1, VW-1
Raw Cable
Construction		 Conductor Size (AWG) 24
Insulation Material 　 PP (RoHS)
Insulation Diameter (mm) 1.30
Conductor Quantity 　 4 Cores
Assembly 　 Stranded
Overall Diameter (mm) 5.10
Jacket Material 　 TPE (RoHS)
Surface Effect 　 Matt Yellow

The demonstrated parameters for reference only. Please consult our customer service to customize any other parameter you demand.
