UL22181 1Pair+2C Outer Polyester Braid Communication Cable 80C 30V
UL22181 1Pair+2C Outer Polyester Braid Communication Cable 80C 30V
UL22181 1Pair+2C Outer Polyester Braid Communication Cable 80C 30V
UL22181 1Pair+2C Outer Polyester Braid Communication Cable 80C 30V
UL22181 1Pair+2C Outer Polyester Braid Communication Cable 80C 30V
UL22181 1Pair+2C Outer Polyester Braid Communication Cable 80C 30V
UL22181 1Pair+2C Outer Polyester Braid Communication Cable 80C 30V
UL22181 1Pair+2C Outer Polyester Braid Communication Cable 80C 30V
UL22181 1Pair+2C Outer Polyester Braid Communication Cable 80C 30V
UL22181 1Pair+2C Outer Polyester Braid Communication Cable 80C 30V
UL22181 1Pair+2C Outer Polyester Braid Communication Cable 80C 30V
UL22181 1Pair+2C Outer Polyester Braid Communication Cable 80C 30V
UL22181 1Pair+2C Outer Polyester Braid Communication Cable 80C 30V
UL22181 1Pair+2C Outer Polyester Braid Communication Cable 80C 30V
Specifications
Brand Name :
WCH Cable
Model Number :
UL22181 1Pair+2C
Certification :
UL & CUL Certificate
Place of Origin :
Dongguan, China
MOQ :
5000 meters
Price :
USD0.2012
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
3000000 meters per month
Delivery Time :
9 days for ready goods
Packaging Details :
305 meters per reel
UL Type :
22181
Application :
Power Cord Cable
Structure :
1Pair+2C
Voltage :
Low Voltage 30V
Jacket Material :
Special Made PVC
Colour :
Black
Description

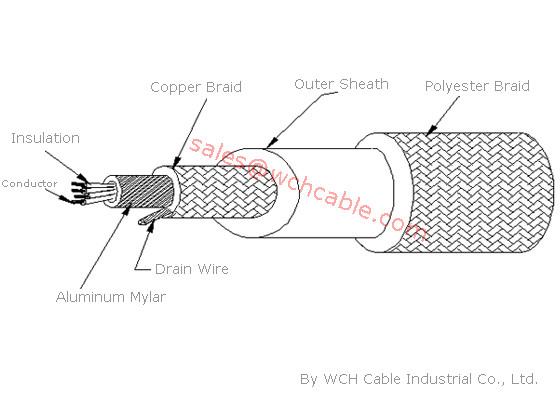

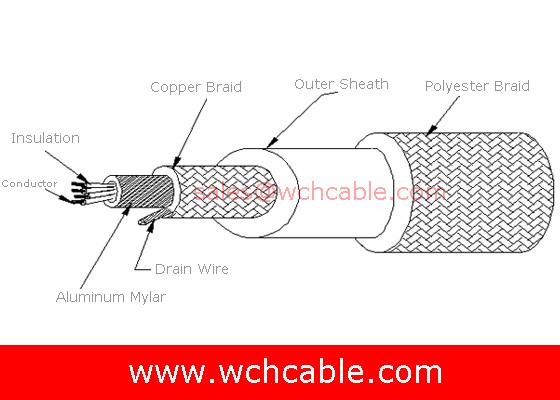

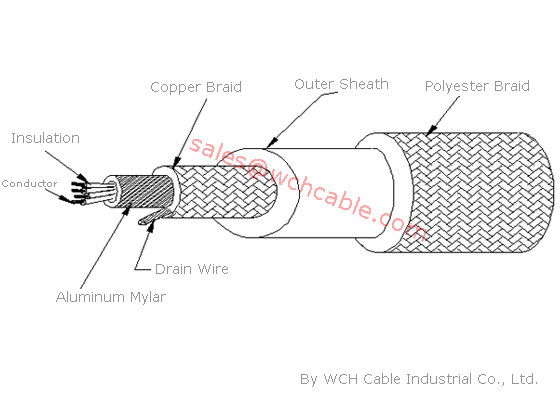

UL22181 1Pair+2C Outer Polyester Braid Communication Cable 80C 30V

Conductors: Annealed copper strands, tinned or bare.

Insulation Material: PP, PE, SR-PVC.

Tinned or bare copper wire spiral wrapped or braided shield.

Sheath Material: Polyvinyl chloride PVC

Outer polyester braided.

Rated Temperature: 80C degrees

Rated Voltage: 30V

Uniform insulation/sheath thickness for smooth strip process.

UL VW-1 & CUL FT1 vertical flame test verified.

Style No. Structure Conductor Strands Insulation
Thickness		 Nominal Diameter Shield Coverage Sheath Thickness Overall
Diameter		 Polyester Braid Conductor
Resistance
No/mm mm mm % mm mm % Ω/KM
UL22181 28AWGx1PR 7/0.127 0.23 0.85 ≥65 0.38 3.80 ≥98 239.00
28AWGx2C 7/0.127 0.23 0.90 239.00
UL22181 28AWGx1PR 7/0.127 0.23 0.85 ≥65 0.38 4.20 ≥98 239.00
26AWGx2C 7/0.16 0.23 1.00 150.00
UL22181 28AWGx1PR 7/0.127 0.23 0.85 ≥65 0.38 4.50 ≥98 239.00
24AWGx2C 11/0.16 0.23 1.10 94.20
UL22181 28AWGx1PR 7/0.127 0.23 0.85 ≥65 0.38 4.70 ≥98 239.00
22AWGx2C 17/0.16 0.23 1.30 59.40
UL22181 28AWGx1PR 7/0.128 0.23 0.85 ≥65 0.38 5.00 ≥98 239.00
20AWGx2C 21/0.178 0.23 1.50 23.20

UL22181 1Pair+2C Outer Polyester Braid Communication Cable 80C 30V

UL22181 1Pair+2C Outer Polyester Braid Communication Cable 80C 30VUL22181 1Pair+2C Outer Polyester Braid Communication Cable 80C 30VUL22181 1Pair+2C Outer Polyester Braid Communication Cable 80C 30VUL22181 1Pair+2C Outer Polyester Braid Communication Cable 80C 30VUL22181 1Pair+2C Outer Polyester Braid Communication Cable 80C 30V
