UL Approved Multicore Plenum CM Cable
UL Approved Multicore Plenum CM Cable
UL Approved Multicore Plenum CM Cable
UL Approved Multicore Plenum CM Cable
UL Approved Multicore Plenum CM Cable
UL Approved Multicore Plenum CM Cable
UL Approved Multicore Plenum CM Cable
UL Approved Multicore Plenum CM Cable
UL Approved Multicore Plenum CM Cable
UL Approved Multicore Plenum CM Cable
UL Approved Multicore Plenum CM Cable
UL Approved Multicore Plenum CM Cable
Specifications
Brand Name :
WCH Cable
Model Number :
CM
Certification :
UL Certificate
Place of Origin :
Dongguan, China
MOQ :
3050 meters
Price :
USD 0.21 per meter
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
1000000 meters per week
Delivery Time :
9 days for ready goods
Packaging Details :
305 meters per roll
Type :
Communication Cable
Conductor :
High purity copper wire
Insulation :
PVC, PE, PP, FEP
Jacket :
Special Grade PVC
Standard :
UL, & Cul
FR Grade :
FT4
Description

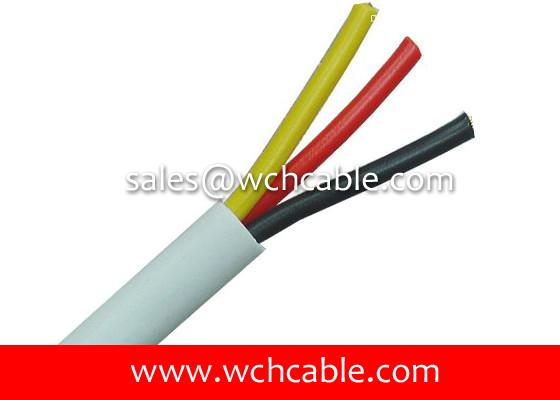

UL Approved Multicore Plenum CM Cable

Conductor: High purity copper wire, tinned or bare, stranded or solid.

Insulation Material: high quality PVC, PP, PE, FEP.

Jacket Material: Special PVC / Polyvinyl Chloride.

Screen Shield: Foil, spiral shield, copper braiding, optional.

Approval Type: UL, Cul.

Rated Temperature: 60, 75, 90, or 105 Celsius degrees.

Rated Voltage: 300V.

Flammability: Passes UL CM, and Cul FT4 vertical tray flame test.

Application: Communication and signal control system.

UL Style Core Conductor Insulation Thickness Nominal Diameter Drain Wire Overall Shield Jacket Thickness Overall Diameter Conductor Resistance
AWG No/mm mm mm NO./mm mm Coverage mm mm Ω/KM
CM 1P 28 7/0.127 0.18 0.85 7/0.127 AL/MY 65% 0.61 3.50 239.00
2C 28 7/0.127 0.18 0.85 239.00
CM 1P 28 7/0.127 0.18 0.85 7/0.16 AL/MY 65% 0.61 3.90 239.00
2C 26 7/0.16 0.18 1.00 150.00
CM 1P 28 7/0.127 0.18 0.85 7/0.20 AL/MY 65% 0.61 4.20 239.00
2C 24 11/0.16 0.18 1.10 94.20
CM 1P 26 7/0.16 0.18 0.92 / / / 0.61 3.20 140.00
CM 2P 26 7/0.16 0.18 0.92 / / / 0.61 4.50 140.00
CM 3P 26 7/0.16 0.18 0.92 / / / 0.61 4.80 140.00
CM 4P 26 7/0.16 0.18 0.92 / / / 0.61 5.20 140.00
CM 1P 24 7/0.20 0.18 0.98 / / / 0.61 3.40 87.50
CM 2P 24 7/0.20 0.18 0.98 / / / 0.61 4.80 87.50
CM 3P 24 7/0.20 0.18 0.98 / / / 0.61 5.00 87.50
CM 4P 24 7/0.20 0.18 0.98 / / / 0.61 5.40 87.50
CM 1P 26 7/0.16 0.18 0.95 7/0.16 AL/MY 65% 0.61 3.60 140.00
CM 2P 26 7/0.16 0.18 0.95 7/0.16 AL/MY 65% 0.61 5.00 140.00
CM 3P 26 7/0.16 0.18 0.95 7/0.16 AL/MY 65% 0.61 5.40 140.00
CM 4P 26 7/0.16 0.18 0.95 7/0.16 AL/MY 65% 0.61 5.80 140.00
CM 1P 24 7/0.20 0.18 1.02 7/0.20 AL/MY 65% 0.61 3.80 87.50
CM 2P 24 7/0.20 0.18 1.02 7/0.20 AL/MY 65% 0.61 5.20 87.50
CM 3P 24 7/0.20 0.18 1.02 7/0.20 AL/MY 65% 0.61 5.60 87.50
CM 4P 24 7/0.20 0.18 1.02 7/0.20 AL/MY 65% 0.61 6.00 87.50

UL Approved Multicore Plenum CM Cable
