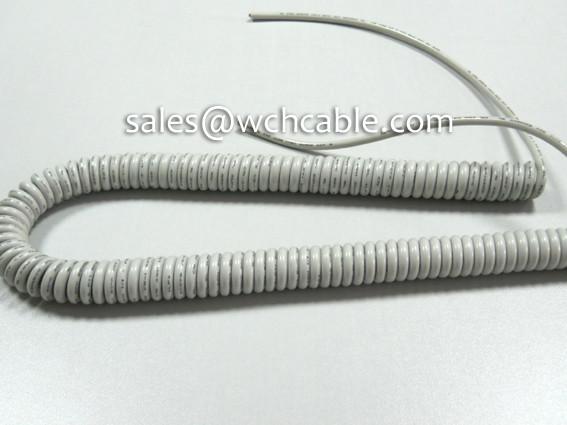

UL20698 Massage Chair Interconnection Frequent Moving Spring Cable 80C 90V
UL20698 Massage Chair Interconnection Frequent Moving Spring Cable 80C 90V
UL20698 Massage Chair Interconnection Frequent Moving Spring Cable 80C 90V
UL20698 Massage Chair Interconnection Frequent Moving Spring Cable 80C 90V
UL20698 Massage Chair Interconnection Frequent Moving Spring Cable 80C 90V
UL20698 Massage Chair Interconnection Frequent Moving Spring Cable 80C 90V
UL20698 Massage Chair Interconnection Frequent Moving Spring Cable 80C 90V
UL20698 Massage Chair Interconnection Frequent Moving Spring Cable 80C 90V
UL20698 Massage Chair Interconnection Frequent Moving Spring Cable 80C 90V
UL20698 Massage Chair Interconnection Frequent Moving Spring Cable 80C 90V
UL20698 Massage Chair Interconnection Frequent Moving Spring Cable 80C 90V
UL20698 Massage Chair Interconnection Frequent Moving Spring Cable 80C 90V
Specifications
Brand Name :
WCH Cable
Model Number :
UL20698
Certification :
UL, Cul, AWM
Place of Origin :
Dongguan, China
MOQ :
200pcs
Price :
USD0.252 per piece
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
100,000pcs per week
Delivery Time :
9 days for ready goods
Packaging Details :
200pcs per carton
Conductor Material :
High purity Copper Wire Strands
Rated Temperature :
80 Deg C
Insulation :
AWM Compliant Materials
Rated Voltage :
90V
Jacket Material :
Thermoplastic Polyurethane TPU
Executed Standard :
UL758, UL20698
Description

UL20698 Massage Chair Interconnection Frequent Moving Spring Cable 80C 90V

Standard: Appliance Wiring Material UL758.
Rated Temperature: 80 deg C.
Rated Voltage: 90V.
Flammability: UL VW-1 passed.
Uniform insulation thickness for smooth stripping.
Other approvals: Cul, CSA / Canadian Standards Association.
Application: Internal & External wiring, massage chair interconnection, etc.

Parameters of Frequent Moving Spring Cable

Style Number Core Quantity Copper Conductor Insulation Thickness Insulation Diameter Jacket Thickness Overall Diameter Conductor Resistance
AWG No/mm mm mm mm mm Ω/KM
UL20698 2C 30 7/0.100 0.23 0.80 0.76 3.60 381.00
2C 28 7/0.127 0.23 0.90 0.76 3.90 239.00
2C 26 7/0.16 0.23 1.00 0.76 4.00 150.00
2C 24 11/0.16 0.23 1.10 0.76 4.20 94.20
2C 22 17/0.16 0.23 1.30 0.76 4.60 59.40
2C 20 21/0.178 0.23 1.50 0.76 5.00 36.70
2C 18 34/0.178 0.23 1.80 0.76 5.60 23.20
2C 16 26/0.25 0.23 2.00 0.76 7.80 14.60
3C 30 7/0.100 0.23 0.80 0.76 5.50 381.00
3C 28 7/0.127 0.23 0.90 0.76 5.70 239.00
3C 26 7/0.16 0.23 1.00 0.76 5.90 150.00
3C 24 11/0.16 0.23 1.10 0.76 6.10 94.20
3C 22 17/0.16 0.23 1.30 0.76 6.50 59.40
3C 20 21/0.178 0.23 1.50 0.76 7.00 36.70
3C 18 34/0.178 0.23 1.80 0.76 7.60 23.20
4C 30 7/0.100 0.23 0.80 0.76 5.70 381.00
4C 28 7/0.127 0.23 0.90 0.76 5.90 239.00
4C 26 7/0.16 0.23 1.00 0.76 6.20 150.00
4C 24 11/0.16 0.23 1.10 0.76 6.50 94.20
4C 22 17/0.16 0.23 1.30 0.76 6.90 59.40
4C 20 21/0.178 0.23 1.50 0.76 7.40 36.70
5C 30 7/0.100 0.23 0.80 0.76 6.00 381.00
5C 28 7/0.127 0.23 0.90 0.76 6.30 239.00
5C 26 7/0.16 0.23 1.00 0.76 6.40 150.00
5C 24 11/0.16 0.23 1.10 0.76 6.80 94.20
5C 22 17/0.16 0.23 1.30 0.76 7.40 59.40
6C 30 7/0.100 0.23 0.80 0.76 6.40 381.00
6C 28 7/0.127 0.23 0.90 0.76 6.70 239.00
6C 26 7/0.16 0.23 1.00 0.76 7.00 150.00
6C 24 11/0.16 0.23 1.10 0.76 7.30 94.20
