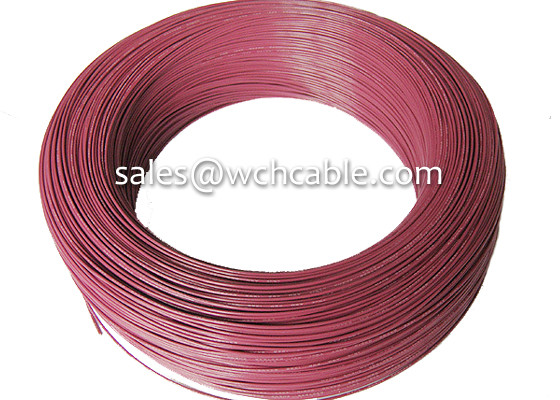

UL3122 Fiberglass Braided Electrical Silicone Rubber Wire Rated 200℃ 300V
UL3122 Fiberglass Braided Electrical Silicone Rubber Wire Rated 200℃ 300V
UL3122 Fiberglass Braided Electrical Silicone Rubber Wire Rated 200℃ 300V
UL3122 Fiberglass Braided Electrical Silicone Rubber Wire Rated 200℃ 300V
UL3122 Fiberglass Braided Electrical Silicone Rubber Wire Rated 200℃ 300V
UL3122 Fiberglass Braided Electrical Silicone Rubber Wire Rated 200℃ 300V
UL3122 Fiberglass Braided Electrical Silicone Rubber Wire Rated 200℃ 300V
UL3122 Fiberglass Braided Electrical Silicone Rubber Wire Rated 200℃ 300V
UL3122 Fiberglass Braided Electrical Silicone Rubber Wire Rated 200℃ 300V
UL3122 Fiberglass Braided Electrical Silicone Rubber Wire Rated 200℃ 300V
Specifications
Brand Name :
WCH Cable
Model Number :
WCH-UL3122
Certification :
UL Certificate
Place of Origin :
Dongguan, China
MOQ :
610 meters
Price :
USD 0.05 per meter
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
4000000 meters per month
Delivery Time :
9 days for ready goods
Packaging Details :
610 meters per reel
UL Style :
UL3122
Feature :
Fiberglass Braided (Optional)
Gauge :
26AWG - 16AWG
Wire Type :
Silicone Rubber
Rated Temperature :
200℃
Rated Voltage :
300V
Description

UL3122 Fiberglass Braided Electrical Silicone Rubber Wire Rated 200℃ 300V

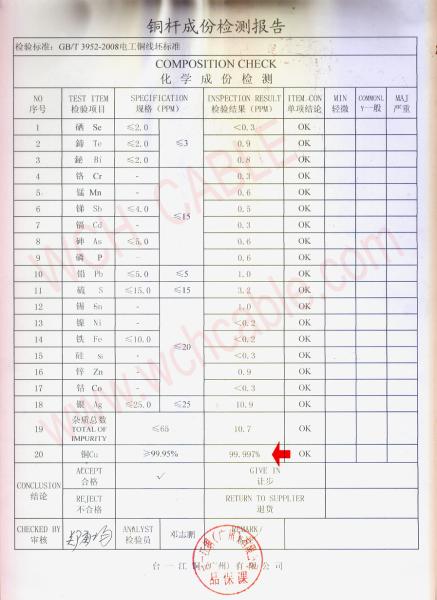

High purity of copper wire conductors
Conductor size: 26AWG ~ 16AWG
Tinned annealed or bare, stranded or solid copper conductor.
Silicone rubber insulation.
Rated temperature 200℃.
Rated voltage 300V.
Uniform wall thickness of insulation for easy stripping and cutting.
UL VW-1 and CUL FT1 flame test verified.
Top coated conductor is available.


UL3122 Fiberglass Braided Electrical Silicone Rubber Wire Rated 200℃ 300V

UL Style& Cul Type Conductor Insulation
Thickness		 Overall
Diameter		 Standard Put-up Conductor
Resistance
AWG No/mm mm mm Feet/reel Meter/reel Ω/KM
UL3122
CUL AWM I A
(Stranded)		 26 7/0.16 0.38 1.55 2000 610 150
24 7/0.20 0.38 1.70 2000 610 94.2
11/0.16 0.38 1.70 2000 610
22 7/0.25 0.38 1.85 2000 610 59.4
17/0.16 0.38 1.85 2000 610
20 7/0.31 0.38 2.05 2000 610 36.70
21/0.178 0.38 2.05 2000 610
18 7/0.39 0.38 2.28 2000 610 23.20
34/0.178 0.38 2.28 2000 610
16 7/0.50 0.38 2.63 2000 610 14.60
26/0.25 0.38 2.63 2000 610
UL3122
CUL AWM I A
(Solid)		 26 1/0.39 0.38 1.55 2000 610 140
24 1/0.50 0.38 1.62 2000 610 87.5
22 1/0.64 0.38 1.75 2000 610 55.0
20 1/0.81 0.38 1.92 2000 610 34.6
18 1/1.02 0.38 2.12 2000 610 21.8
16 1/1.29 0.38 2.43 2000 610 13.7

UL3122 Fiberglass Braided Electrical Silicone Rubber Wire Rated 200℃ 300V


UL3122 Fiberglass Braided Electrical Silicone Rubber Wire Rated 200℃ 300V

UL3122 Fiberglass Braided Electrical Silicone Rubber Wire Rated 200℃ 300V

UL3122 Fiberglass Braided Electrical Silicone Rubber Wire Rated 200℃ 300V

UL3122 Fiberglass Braided Electrical Silicone Rubber Wire Rated 200℃ 300V
