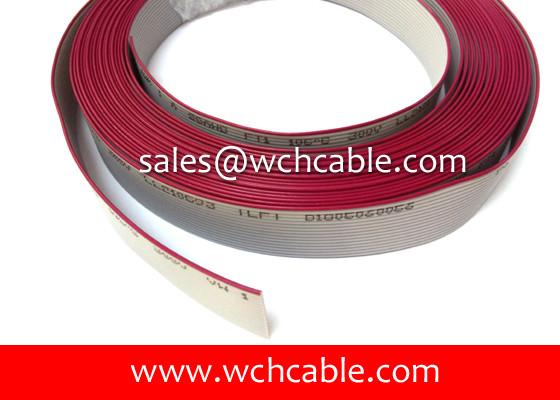

UL2651 PVC Flat Ribbon Cable AWG28 PH1.27 RoHS & Reach Compliant 105C 300V
UL2651 PVC Flat Ribbon Cable AWG28 PH1.27 RoHS & Reach Compliant 105C 300V
UL2651 PVC Flat Ribbon Cable AWG28 PH1.27 RoHS & Reach Compliant 105C 300V
UL2651 PVC Flat Ribbon Cable AWG28 PH1.27 RoHS & Reach Compliant 105C 300V
UL2651 PVC Flat Ribbon Cable AWG28 PH1.27 RoHS & Reach Compliant 105C 300V
UL2651 PVC Flat Ribbon Cable AWG28 PH1.27 RoHS & Reach Compliant 105C 300V
UL2651 PVC Flat Ribbon Cable AWG28 PH1.27 RoHS & Reach Compliant 105C 300V
UL2651 PVC Flat Ribbon Cable AWG28 PH1.27 RoHS & Reach Compliant 105C 300V
UL2651 PVC Flat Ribbon Cable AWG28 PH1.27 RoHS & Reach Compliant 105C 300V
UL2651 PVC Flat Ribbon Cable AWG28 PH1.27 RoHS & Reach Compliant 105C 300V
UL2651 PVC Flat Ribbon Cable AWG28 PH1.27 RoHS & Reach Compliant 105C 300V
UL2651 PVC Flat Ribbon Cable AWG28 PH1.27 RoHS & Reach Compliant 105C 300V
UL2651 PVC Flat Ribbon Cable AWG28 PH1.27 RoHS & Reach Compliant 105C 300V
UL2651 PVC Flat Ribbon Cable AWG28 PH1.27 RoHS & Reach Compliant 105C 300V
Specifications
Brand Name :
WCH Cable
Model Number :
UL2651
Certification :
UL Certificate
Place of Origin :
Dongguan, China
MOQ :
610 meters
Price :
0.12 per meter
Payment Terms :
D/P, L/C, D/A, D/A, T/T, Western Union, MoneyGram
Supply Ability :
500,000 meters per month
Delivery Time :
9 days for ready goods
Packaging Details :
152.5 meters per reel
Style Number :
UL2651
Insulation Material :
Polyvinyl Chloride PVC
Rated Temperature :
105°C
Rated Voltage :
300V
Cable Type :
Flat Ribbon Cable FRC
Feature :
RoHS & Reach Compliant
Conductor Gauge :
28AWG
Pitch Distance :
1.27mm
Description

UL2651 PVC Flat Ribbon Cable AWG28 PH1.27 RoHS & Reach Compliant 105C 300V

Style Description: UL2651, Flat Cable, Flat Ribbon Cable
Rating: 105 deg C, 300 Vac, Horizontal flame.
Insulation Material: Extruded PVC or heat laminated PVC.
Standard: Appliance Wiring Material UL 758.
Application: Internal wiring of Electronic equipment.

Approval Style NumberCoresConductorPitchInsulation
Thickness		Overall DiameterConductor
Resistance
AWGmmmmmmmmΩ/KM
UL26519287/0.1271.270.230.9×11.43239.00
10287/0.1271.270.230.9×20.32239.00
14287/0.1271.270.230.9×12.70239.00
15287/0.1271.270.230.9×17.78239.00
16287/0.1271.270.230.9×19.05239.00
20287/0.1271.270.230.9×25.40239.00
25287/0.1271.270.230.9×31.75239.00
26287/0.1271.270.230.9×33.02239.00
30287/0.1271.270.230.9×38.10239.00
34287/0.1271.270.230.9×43.18239.00
36287/0.1271.270.230.9×45.72239.00
40287/0.1271.270.230.9×50.80239.00
50287/0.1271.270.230.9×63.50239.00
60287/0.1271.270.230.9×76.20239.00


UL2651 PVC Flat Ribbon Cable AWG28 PH1.27 RoHS & Reach Compliant 105C 300V
UL2651 PVC Flat Ribbon Cable AWG28 PH1.27 RoHS & Reach Compliant 105C 300V
UL2651 PVC Flat Ribbon Cable AWG28 PH1.27 RoHS & Reach Compliant 105C 300V
UL2651 PVC Flat Ribbon Cable AWG28 PH1.27 RoHS & Reach Compliant 105C 300V
UL2651 PVC Flat Ribbon Cable AWG28 PH1.27 RoHS & Reach Compliant 105C 300V
UL2651 PVC Flat Ribbon Cable AWG28 PH1.27 RoHS & Reach Compliant 105C 300V
UL2651 PVC Flat Ribbon Cable AWG28 PH1.27 RoHS & Reach Compliant 105C 300V
UL2651 PVC Flat Ribbon Cable AWG28 PH1.27 RoHS & Reach Compliant 105C 300V
UL2651 PVC Flat Ribbon Cable AWG28 PH1.27 RoHS & Reach Compliant 105C 300V

UL2651 PVC Flat Ribbon Cable AWG28 PH1.27 RoHS & Reach Compliant 105C 300VUL2651 PVC Flat Ribbon Cable AWG28 PH1.27 RoHS & Reach Compliant 105C 300V
Tag: UL2651, UL2651 28AWG, PVC ribbon cable PH1.27
