UL20358 PVC Flat Ribbon Cable Class 2 TS Conductor VW-1 80C 30V
UL20358 PVC Flat Ribbon Cable Class 2 TS Conductor VW-1 80C 30V
UL20358 PVC Flat Ribbon Cable Class 2 TS Conductor VW-1 80C 30V
UL20358 PVC Flat Ribbon Cable Class 2 TS Conductor VW-1 80C 30V
UL20358 PVC Flat Ribbon Cable Class 2 TS Conductor VW-1 80C 30V
UL20358 PVC Flat Ribbon Cable Class 2 TS Conductor VW-1 80C 30V
UL20358 PVC Flat Ribbon Cable Class 2 TS Conductor VW-1 80C 30V
UL20358 PVC Flat Ribbon Cable Class 2 TS Conductor VW-1 80C 30V
UL20358 PVC Flat Ribbon Cable Class 2 TS Conductor VW-1 80C 30V
UL20358 PVC Flat Ribbon Cable Class 2 TS Conductor VW-1 80C 30V
UL20358 PVC Flat Ribbon Cable Class 2 TS Conductor VW-1 80C 30V
UL20358 PVC Flat Ribbon Cable Class 2 TS Conductor VW-1 80C 30V
Specifications
Brand Name :
WCH Cable
Model Number :
UL20358
Certification :
UL, Cul, AWM, CSA
Place of Origin :
Dongguan, China
MOQ :
1220 meters
Price :
USD 0.1086 per meter
Payment Terms :
T/T, L/C, D/A, D/P, Western Union, MoneyGram
Supply Ability :
5,000,000 meters per month
Delivery Time :
9 days for ready goods

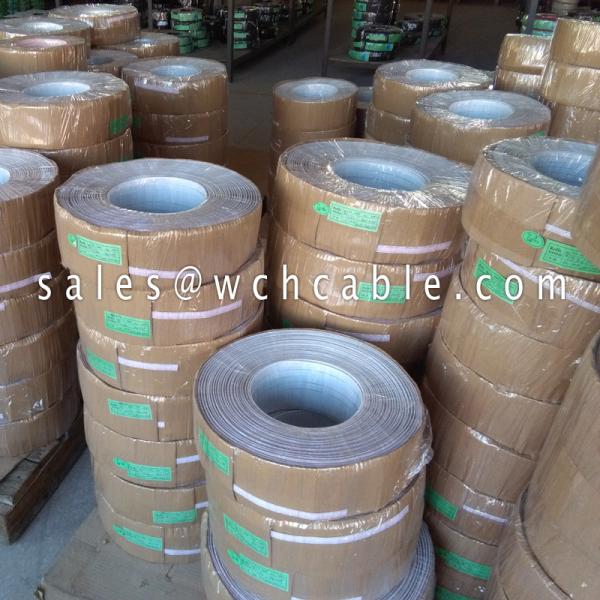

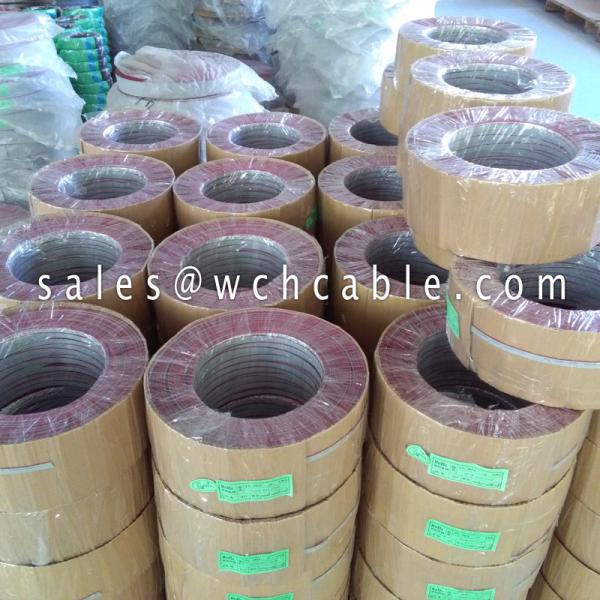

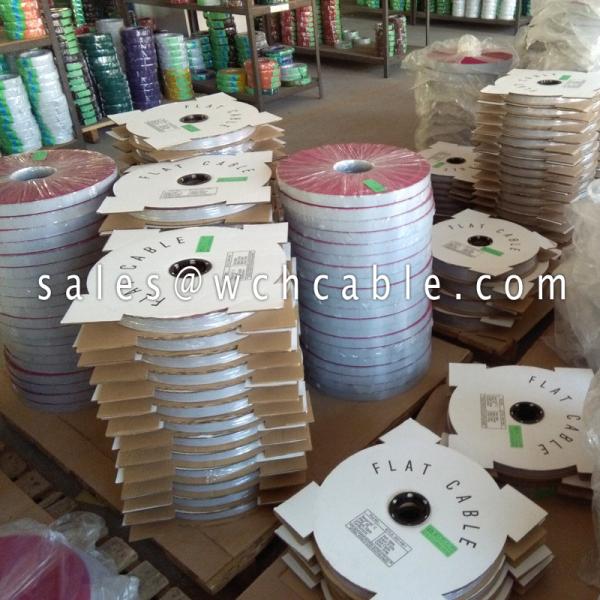

Packaging Details :
152.5 meters or 305 meters per reel, optional
Approval Style :
UL20358
Conductor Material :
Highly pure copper wires
Rated Temperature :
60C, 80C Degrees
Insulation Material :
Polyvinyl Chloride PVC
Rated Voltage :
30V Low Voltage
Application :
Class 2 circuits Wiring
Description

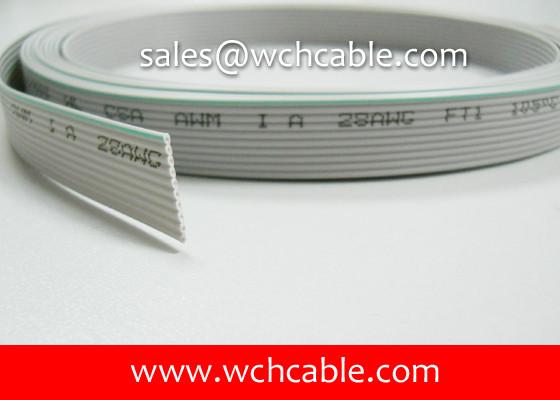

UL20358 PVC Flat Ribbon Cable Class 2 TS Conductor VW-1 80C 30V

High pure copper wire strands conductors;

Quality polyvinyl chloride pvc insulated;

Application: internal wiring connection of class 2 circuits of electrical devices;

Uniform insulation wall thickness for easy stripping;

Rated: 60, 80C degrees, 30V;

Flammability grade: VW-1, FT1 verified.

WCH Cable - Professional Manufacturer of Ribbon Cable, UL Cord, Cable Assembly

Style Number Conductor Gauge Conductor Strands Pitch Distance Pin Quantity Insulation Thickness Overall Diameter Conductor Resistance
AWG No/mm mm Pin mm mm Ω/KM
UL20358 26 7/0.16 1.00 2P-5P 0.23 1.05 150.00
26 7/0.16 1.50 2P-5P 0.23 1.05 150.00
26 7/0.16 1.27 2P-5P 0.23 1.05 150.00
26 7/0.16 2.00 2P-5P 0.23 1.05 150.00
26 7/0.16 2.54 2P-5P 0.23 1.05 150.00
28 7/0.127 1.00 2P-5P 0.23 0.90 239.00
28 7/0.127 1.50 2P-5P 0.23 0.90 239.00
28 7/0.127 1.27 2P-5P 0.23 0.90 239.00
28 7/0.127 2.00 2P-5P 0.23 0.90 239.00
28 7/0.127 2.54 2P-5P 0.23 0.90 239.00

UL20358 PVC Flat Ribbon Cable Class 2 TS Conductor VW-1 80C 30V

UL20358 PVC Flat Ribbon Cable Class 2 TS Conductor VW-1 80C 30VUL20358 PVC Flat Ribbon Cable Class 2 TS Conductor VW-1 80C 30VUL20358 PVC Flat Ribbon Cable Class 2 TS Conductor VW-1 80C 30VUL20358 PVC Flat Ribbon Cable Class 2 TS Conductor VW-1 80C 30VUL20358 PVC Flat Ribbon Cable Class 2 TS Conductor VW-1 80C 30V

Tag: UL20358, ribbon cable, flat ribbon cable
