Varco SSW40 Pneumatic Safety Spinning Wrench Tubular Handling Tools Drill Pipe Spinner
Varco SSW40 Pneumatic Safety Spinning Wrench Tubular Handling Tools Drill Pipe Spinner
Varco SSW40 Pneumatic Safety Spinning Wrench Tubular Handling Tools Drill Pipe Spinner
Varco SSW40 Pneumatic Safety Spinning Wrench Tubular Handling Tools Drill Pipe Spinner
Varco SSW40 Pneumatic Safety Spinning Wrench Tubular Handling Tools Drill Pipe Spinner
Varco SSW40 Pneumatic Safety Spinning Wrench Tubular Handling Tools Drill Pipe Spinner
Varco SSW40 Pneumatic Safety Spinning Wrench Tubular Handling Tools Drill Pipe Spinner
Varco SSW40 Pneumatic Safety Spinning Wrench Tubular Handling Tools Drill Pipe Spinner
Specifications
Brand Name :
TOPLAND
Model Number :
SSW40
Certification :
API
Place of Origin :
China
MOQ :
1
Price :
25000-50000 USD PER SET
Payment Terms :
T/T,Western Union
Supply Ability :
80 Sets Per Month
Delivery Time :
10~20 days
Packaging Details :
Standard Package
Product Name :
Spinning Wrenches
Usage :
Running Tools
Color :
Red
Condition :
New
Material :
Carbon Steel
Application :
Oil Field
Description

Spinning Wrench description of Tubular Handing Tools:

SSW40 spinning wrench is applicable to drill pipes and drill collars of 3'1/2 -91/2in. It is mainly composed of two symmetrical components, each of which drives the gear transmission through air motor and drives the wheel rotation. Operate the air valve with air spring to make the wheel compress the drill pipe; control the air motor valve handle, and start the left and right motors. The motors drive respective drive wheel through left and right reduction units. Due to the friction torque,the drill pipe rotates, and the pipe screw thread rotates in or out. The opening of wrench can adapt pipes of different diameters through adjustment without need for exchange of wheel, which makes manufacturing. application and maintenance more convenient. The spinning wrench is a kind of wheel-type spinning tool. Compared with traditional chain wrench, the spinning wrench boasts the advantages of large speed, no slippery and no damage to drill pipe,and can be used in oil and mud environment, with the advantages of safety and reliability.

The brake torque of SSW40 wrench is 1100ft-lbs(1490Nm),and the in and out spinning speeds are large. During the tripping operation,SSw40 wrench substitutes the spinning rope (spinning chain), so as to make the spinning operation safe and reliable, reduce the labor intensity of drillers, and promote the tripping speed. The air motor in the spinner can rotate clockwise and anticlockwise, which makes coring and treatment of drilling troubles more convenient.

Tubular Handing Tools Spinning Wrench Datasheet:

Model SSW 10 SSW 40
Applicable pipe diameter mm 89-140 89-241
in 3 1/2—5 1/2 3 1/2—9 1/2
Operation Pressure Mpa 0.62-0.86 0.62-0.83
Psi 90-125 90-120
Air consumption cfm 240 250
m/min 31.5 32
Spinning Speed r/min 0-120 0-120
Brake torque Ft-lbs 1000 1100
nm 1350 1490

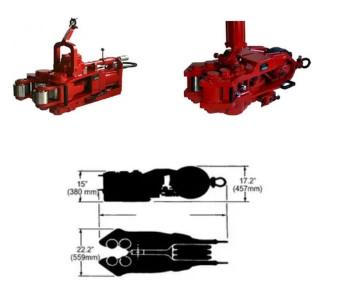

Dimension L X W X H MM 1397 X 800 X 533 1315 X 570 X 570
Weight Kg 368 385
lbs 810 850
